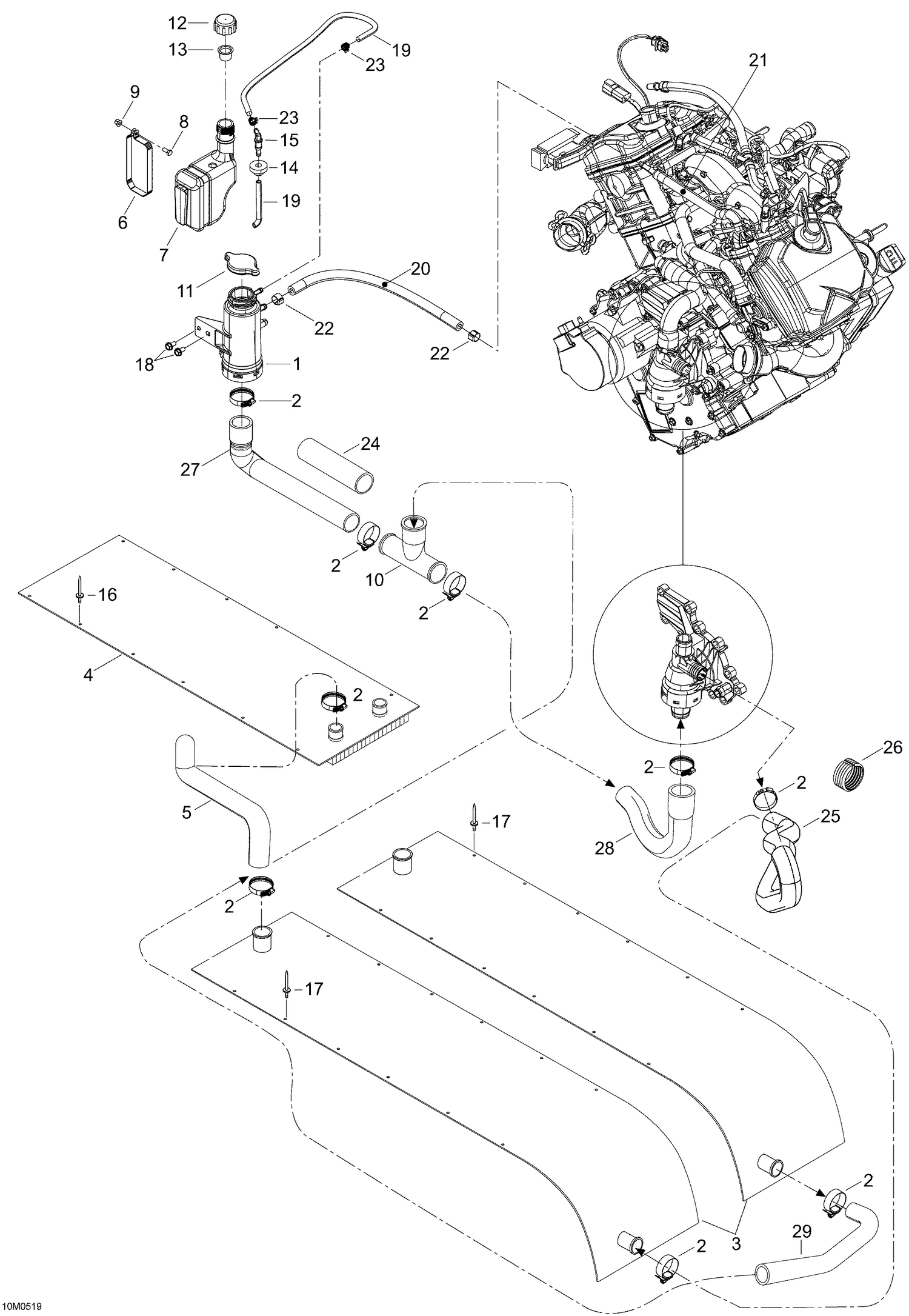

| Ref | Part Number | Description |
|---|
| 1 |
509000176 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 |
40880400 |
Clamp |
| 3 |
605151688 |
RH RADIATOR - Call your local BRP dealership |
| 3 |
605152382 |
LH RADIATOR - Call your local BRP dealership |
| 4 |
605351687 |
Radiator, Rear |
| 5 |
605252280 |
Hose |
| 6 |
509000191 |
COOLANT TANK SUPPORT - Call your local BRP dealership |
| 7 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 8 |
M40366 |
Screw M5X16 |
| 9 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 10 |
509000219 |
T-Fitting |
| 11 |
509000180 |
Radiator Pressure Cap |
| 12 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 13 |
709200205 |
PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 14 |
709200285 |
Grommet This part replaces 570135100. |
| 15 |
414580600 |
Elbow Male Connector |
| 16 |
M36489 |
Rivet |
| 17 |
36108 |
Rivet This part replaces M36083. |
| 18 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 19 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 20 |
509000304 |
RETURN HOSE - Call your local BRP dealership |
| 21 |
219704355 |
TUBING 1000MM LONG - Call your local BRP dealership |
| 22 |
293650170 |
Tridon Gear Clamp |
| 23 |
414554800 |
Spring Clamp |
| 24 |
M39062 |
TUBING - Call your local BRP dealership |
| 25 |
605250712 |
Hose |
| 26 |
M390003 |
Tube |
| 27 |
605350713 |
HOSE - Call your local BRP dealership |
| 28 |
605350714 |
HOSE - Call your local BRP dealership |
