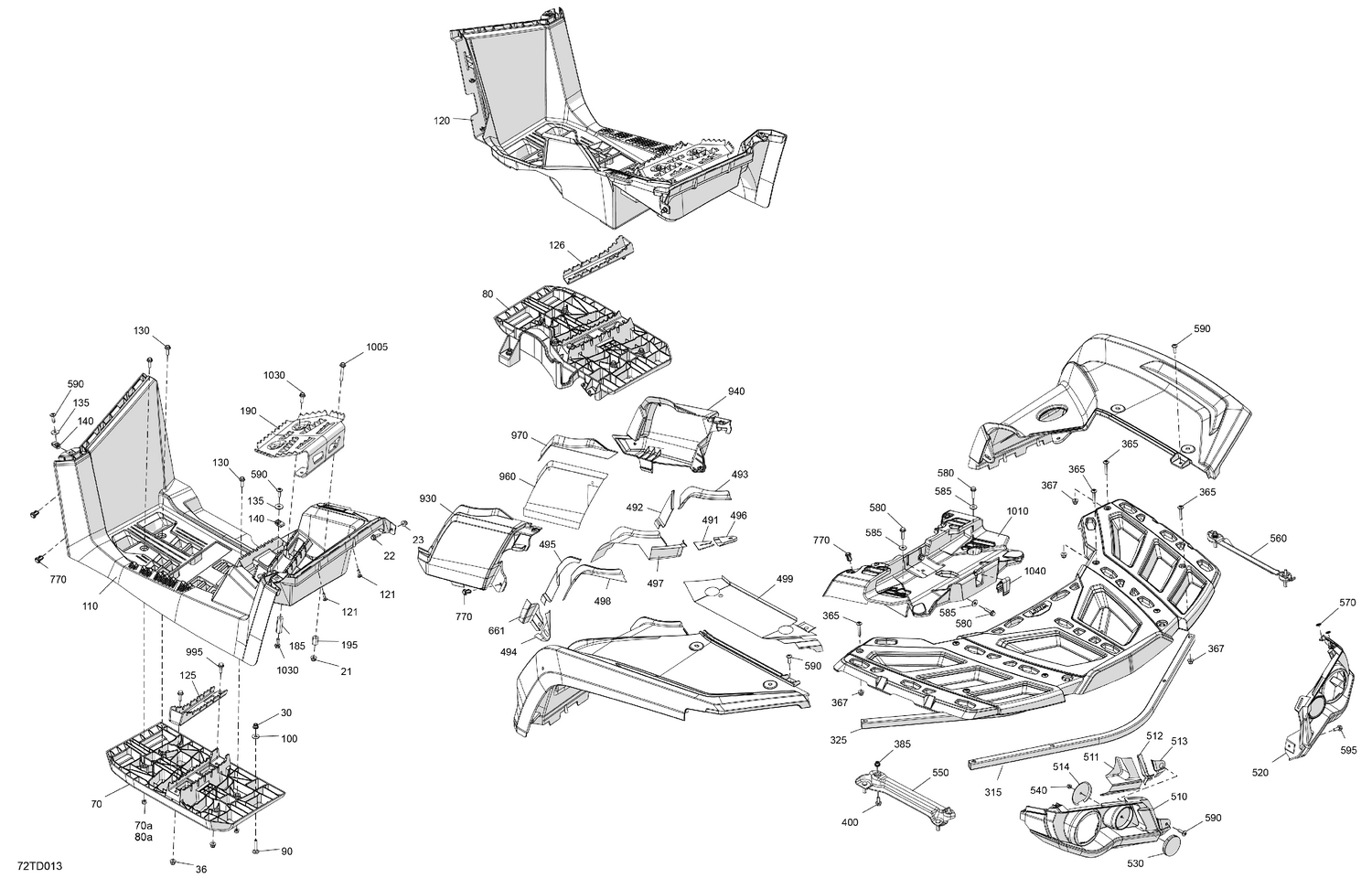

07- Body - Rear Section
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 233261434 | Flange Elastic Nut M6 |
| 22 | 207662054 | Hex. Flange Screw M6 X 20 |
| 23 | 233261434 | Flange Elastic Nut M6 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 36 | 233261434 | Flange Elastic Nut M6 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705005978 | LH Footboard |
| 120 | 705005977 | RH Footboard |
| 121 | 250000720 | Torx Screw K50 X 16 |
| 125 | 705004352 | LH Footrest |
| 126 | 705005395 | RH Footrest |
| 130 | 207662054 | Hex. Flange Screw M6 X 20 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 |
| 185 | 705006819 | Coupling Nut, Large |
| 190 | 705015693 | Black, Footrest |
| 195 | 705006818 | Coupling Nut, Short |
| 315 | 705016640 | Sectional Bent Tube |
| 325 | 705016641 | Sectional Bent Tube |
| 365 | 250000646 | Black, Torx Screw M6 X 35 |
| 367 | 233261434 | Flange Elastic Nut M6 |
| 385 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 400 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 491 | 707002456 | Heat Shield |
| 492 | 707002457 | Heat Shield |
| 493 | 707002458 | Heat Shield |
| 494 | 707002459 | Heat Shield |
| 495 | 707002460 | Heat Shield |
| 496 | 707002461 | Heat Shield |
| 497 | 707002462 | Heat Shield |
| 498 | 707002583 | Heat Shield |
| 499 | 707002464 | Heat Shield |
| 510 | 705006643 | LH Rear Facia |
| 511 | 707002103 | Heat Shield |
| 512 | 707002107 | Heat Shield |
| 513 | 707002594 | Heat Shield |
| 514 | 707002465 | Heat Shield |
| 520 | 705006650 | RH Rear Facia |
| 530 | 705016982 | Red, Reflector |
| 540 | 233251434 | Flange Elastic Nut M5 |
| 550 | 705007277 | LH Support |
| 560 | 705007278 | RH Support |
| 570 | 732610072 | Push Nut |
| 580 | 250000841 | Hex Flange Screw M6 X 25 |
| 585 | 234062670 | Stainless Steel Flat Washer |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 595 | 207661654 | Hex. Flange Screw M6 X 16 |
| 661 | 707002467 | Heat Shield |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 930 | 715001897 | LH Extension Panel |
| 940 | 705004348 | RH Extension Panel |
| 960 | 705006870 | Heat Shield |
| 970 | 705006871 | Heat Shield |
| 995 | 207662034 | Hex. Flange Screw M6 X 20 |
| 1005 | 207664536 | Hex. Flange Screw M6 X 45 |
| 1010 | 705007948 | Seat Holder |
| 1030 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
