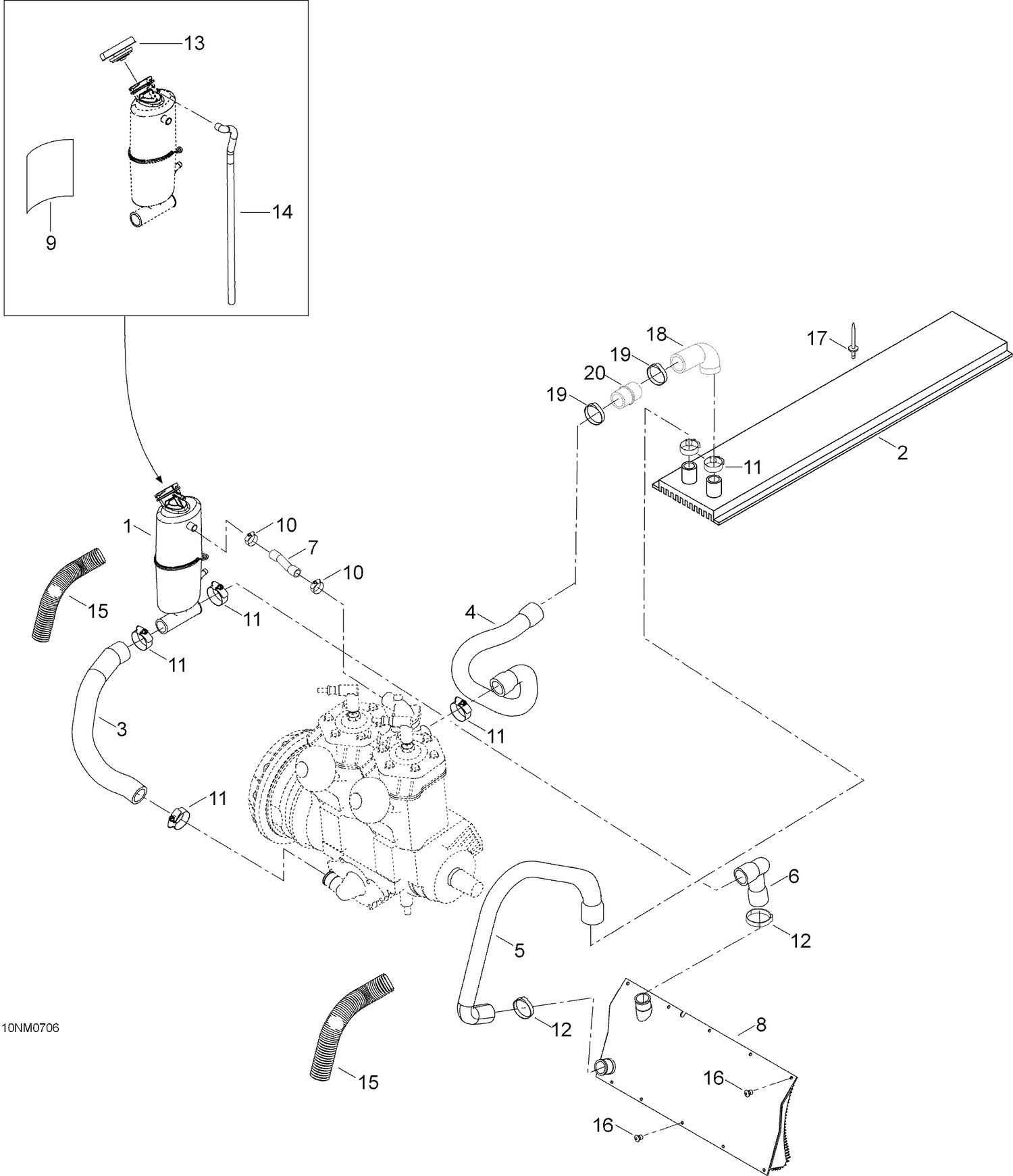

01- Cooling System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000402 | COOLANT TANK - Call your local BRP dealership |
| 2 | 5246130 | Radiator |
| 3 | 509000135 | ENGINE INLET HOSE - Call your local BRP dealership |
| 4 | 605354598 | Hose |
| 5 | 509000335 | Hose |
| 6 | 605354599 | Hose |
| 7 | 509000093 | Hose |
| 8 | 518323903 | FRONT RADIATOR - Call your local BRP dealership |
| 9 | 509000190 | REFECTIVE SHEET - Call your local BRP dealership |
| 10 | 414655700 | Clamp |
| 11 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 12 | 509000181 | Clamp |
| 13 | 509000187 | Pressure Cap |
| 14 | 39038 | Hose |
| 15 | 28036 | Tubing |
| 16 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 17 | 36088 | Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership |
| 18 | 605353061 | Hose |
| 19 | 509000045 | Clamp |
