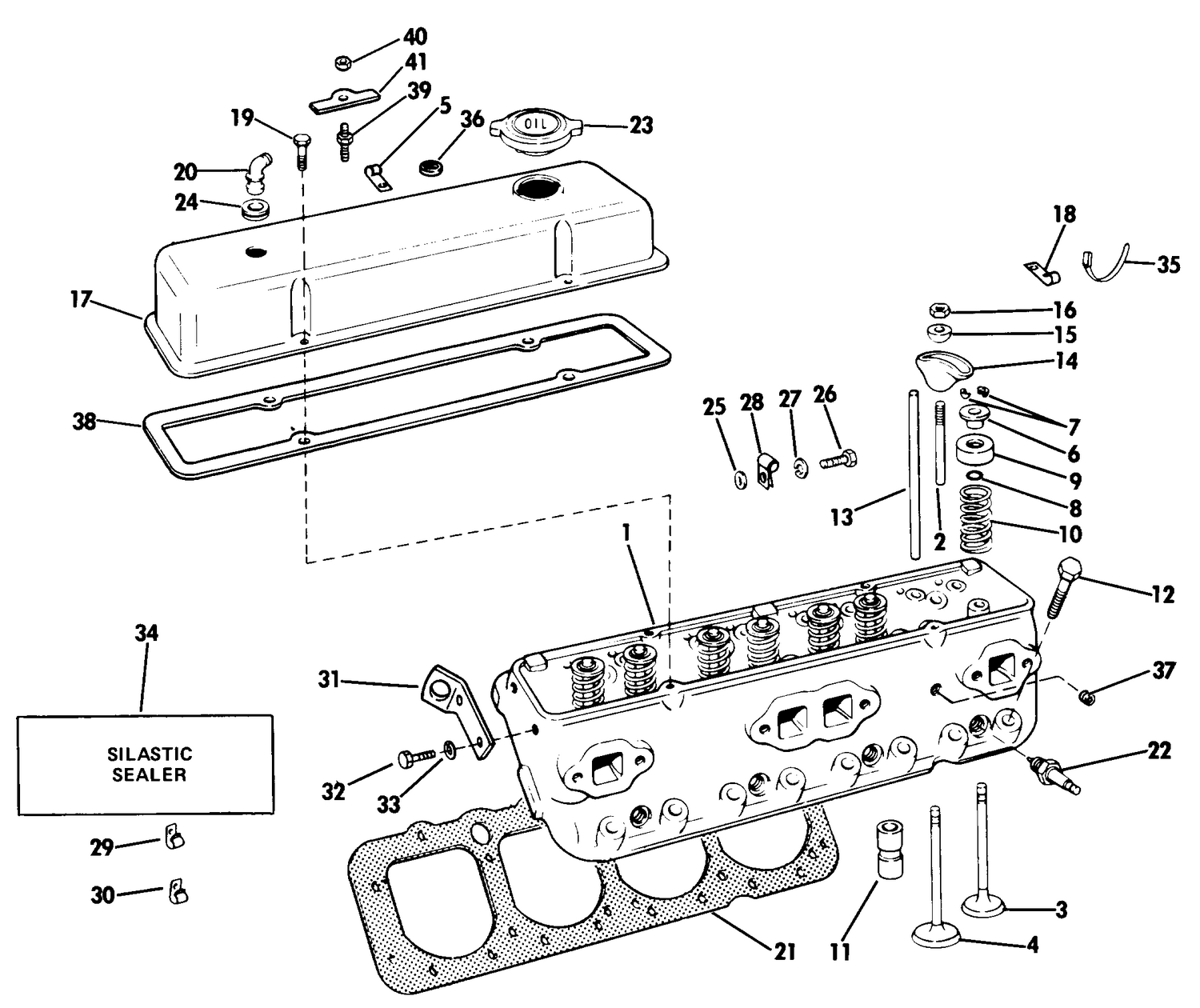

| Ref | Part Number | Description |
|---|
| 1 |
14034809 |
CYLINDER HEAD ASSY |
| 1 |
14034810 |
CLYINDER HEAR ASSY |
| 1 |
14039192 |
CYLINDER HEAD ASSY |
| 2 |
3814692 |
SHANK,Light blue paint |
| 2 |
3815892 |
BLUE PAINT |
| 2 |
3973416 |
STUD, Cylinder head |
| 3 |
14025570 |
VALVE, Inlet, standard |
| 3 |
14025571 |
VALVE, Inlet, .015" O.S |
| 3 |
14025573 |
VALVE, Inlet, standard |
| 3 |
14033018 |
VALVE, Inlet, .003" o.s. |
| 3 |
14033019 |
VALVE, Inlet, .015" o.s. |
| 3 |
14033020 |
VALVE, Inlet, .030 o.s. |
| 3 |
14034078 |
VALVE, Inlet, .003" |
| 3 |
14034079 |
VALVE, Inlet, .015" |
| 3 |
14034080 |
VALVE, Inlet, .030" |
| 3 |
14037603 |
VALVE, Inlet, .003" o.s |
| 3 |
14037604 |
VALVE, Inlet .015" o.s |
| 3 |
14037605 |
VALVE, Inlet, .030" o.s |
| 4 |
0336742 |
HOSE, Fuel pump to manifold |
| 4 |
0340006 |
BRACKET, Mount This part replaces 0336733. |
| 4 |
14025575 |
VALVE, Exhaust, standard |
| 4 |
14033158 |
VALVE, Exhaust, .003" O.S. |
| 4 |
14033159 |
VALVE, Exhaust, .015" O.S. |
| 4 |
14033160 |
VALVE, Exhaust, .030" O.S. |
| 6 |
14003974 |
CAP, Intake valve |
| 6 |
6263794 |
ROATAOR, Exhaust valve |
| 7 |
3947770 |
KEY |
| 8 |
0460483 |
SEAL, Inlet |
| 8 |
3835333 |
SEAL |
| 9 |
10007818 |
SHIELD |
| 10 |
3911068 |
VALVE SPRING & DAMPER |
| 11 |
5232720 |
VALVE LIFTER |
| 12 |
3704796 |
BOLT, Cylinder head, 1-/34" |
| 12 |
3734594 |
BOLT, Cylinder head 7/16-14 x 3-3/4inch |
| 12 |
3767468 |
BOLT, Cyl. hd., 7/16-14 x 3'' |
| 13 |
3796243 |
PUSH ROD |
| 14 |
3974290 |
ARM, Valve rocker |
| 15 |
3959142 |
BALL, Rocker arm |
| 16 |
3744341 |
NUT, Coned, 3/8-24 |
| 17 |
14095094 |
VALVE COVER |
| 18 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 19 |
5950740 |
Gasket This part replaces 0460578. |
| 20 |
0311545 |
ELBOW |
| 21 |
3853380 |
GASKET, Cylinder head This part replaces 0910089. |
| 22 |
0979826 |
GASKET, Cylinder head |
| 22 |
0982792 |
SPARK PLUG, Ac mr44t |
| 22 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0979827. |
| 23 |
6410893 |
OIL FILL CAP, Bayonet type |
| 24 |
0311543 |
GROMMET |
| 26 |
0306834 |
BOLT, Throttle lever retainer |
| 27 |
0120177 |
L'WASHER, Alternator to brkt |
| 28 |
3852458 |
CLAMP, Oil drain tube This part replaces 0908924. |
| 29 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 31 |
0311111 |
LIFT BRACKET |
| 32 |
0306539 |
BOLT, Distributor |
| 33 |
0120177 |
L'WASHER, Alternator to brkt |
| 34 |
1052366 |
SEALER |
| 35 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 36 |
0306407 |
LOCCKWASHER,Cover latch |
| 37 |
0147863 |
PLUG, Cylinder head |
| 38 |
14082322 |
GASKET, Valve cover |
| 39 |
14082320 |
STUD, Valve cover |
| 40 |
14051876 |
NUT, Rear seal retainer |
