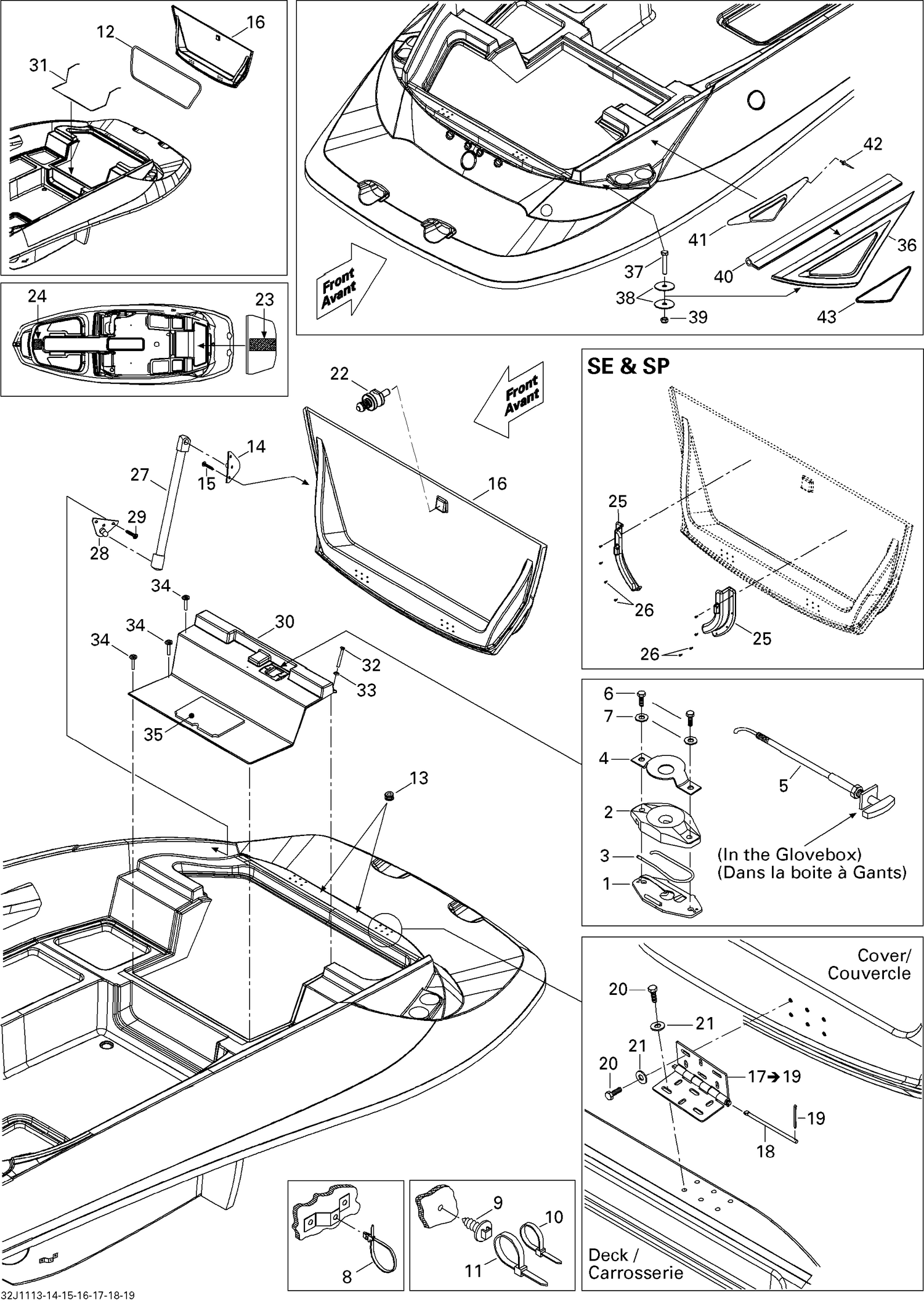

| Ref | Part Number | Description |
|---|
| 1 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 2 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 3 |
204070038 |
SPRING - Call your local BRP dealership |
| 4 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 5 |
204072793 |
LATCH CABLE - Call your local BRP dealership |
| 6 |
207163560 |
Hex. Screw M6 X 35 |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 9 |
293730040 |
Mount Dart |
| 10 |
414115200 |
Tie-Rap 180 mm |
| 11 |
293750008 |
Tie Wrap 368 mm |
| 12 |
204130083 |
D-SEAL RUBBER - Call your local BRP dealership |
| 13 |
293720017 |
GROMMET - Call your local BRP dealership |
| 14 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 15 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 18 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 19 |
204070205 |
Cotter Pin M2.5 X 12 |
| 20 |
207162560 |
Hex. Screw M6 X 25 |
| 21 |
234061600 |
Stainless Flat Washer M6 |
| 22 |
204130146 |
Latch Stud |
| 23 |
204073298 |
NON-SKID CARPET, ENGINE COVER - Call your local BRP dealership |
| 24 |
204073299 |
NON-SKID CARPET, BOW STEP - Call your local BRP dealership |
| 27 |
204073380 |
Gas Shock |
| 28 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 29 |
207152560 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 31 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 32 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 33 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 34 |
204100200 |
Phillips Head Screw 1/4 - 20 X 1-1/2" |
| 35 |
204073368 |
NON SKID CARPET - Call your local BRP dealership |
| 37 |
207163560 |
Hex. Screw M6 X 35 |
| 38 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 39 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 41 |
204072801 |
VENT BASE, PORT SIDE - Call your local BRP dealership |
| 41 |
204072802 |
VENT BASE, STARBOARD - Call your local BRP dealership |
| 42 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 43 |
204073029 |
VENT INSERT, PORT SIDE - Call your local BRP dealership |
