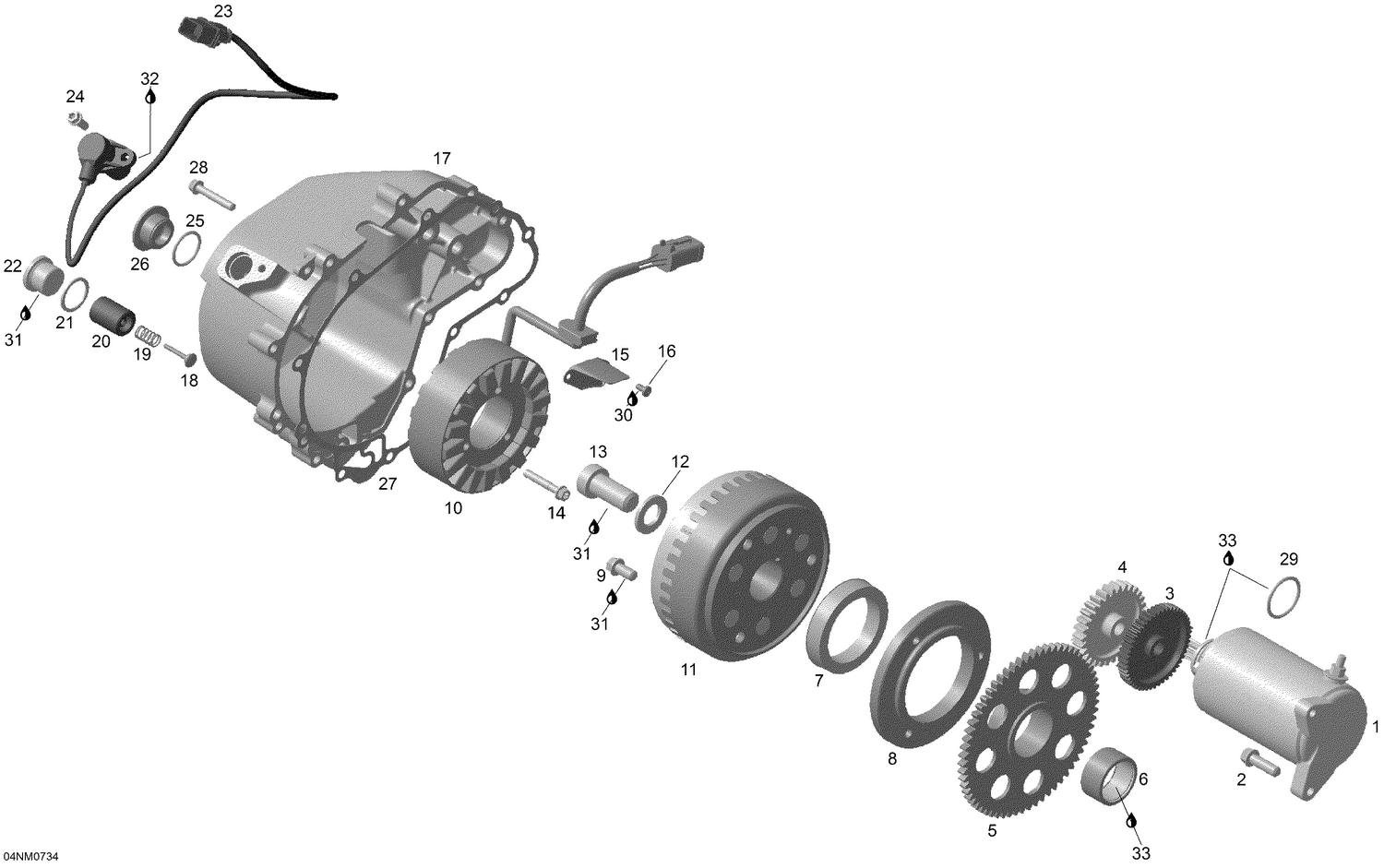

| Ref | Part Number | Description |
|---|
| 1 |
420684566 |
Starter Assy This part replaces 420684560. |
| 2 |
420440372 |
Screw M8 x 25 |
| 3 |
420634741 |
Starter Double Gear 11/49 T This part replaces 420634740. |
| 4 |
420634605 |
Gear, 30 Teeth This part replaces 420634600. |
| 5 |
420434235 |
Gear (64) |
| 7 |
420659111 |
Sprag Clutch This part replaces 420659112. |
| 8 |
420659263 |
Sparg Clutch Housing This part replaces 420659260. |
| 9 |
420440852 |
Flanged Torx Screw M8 X 16 |
| 10 |
420684853 |
Stator Plate This part replaces 420684852. |
| 11 |
420684867 |
MAGNETO FLYWHEEL - Call your local BRP dealership |
| 12 |
420627270 |
Shim A17 DIN 125 |
| 13 |
420241545 |
Socket head screw M6 x 35 |
| 14 |
420440274 |
Flanged Torx Screw M6 X 35 This part replaces 420440277. |
| 15 |
420251889 |
Support_Cable Int Assy This part replaces 420251880. |
| 17 |
420212225 |
Ignition Cover This part replaces 420611130. |
| 18 |
420656370 |
Pressure retaining valve |
| 19 |
420939481 |
Compression Spring This part replaces 420939480. |
| 20 |
420256487 |
Housing Valve This part replaces 420256486. |
| 21 |
420650465 |
Gasket ring |
| 22 |
420640271 |
Screw Plug This part replaces 420640270. |
| 23 |
420966570 |
Crank position trigger |
| 24 |
420641048 |
Flanged Torx Screw M6 X 16 This part replaces 420440167. |
| 25 |
420430782 |
O-ring |
| 26 |
420241633 |
Screw Plug This part replaces 420241630. |
| 27 |
420651203 |
Gasket This part replaces 420651200. |
| 28 |
420440274 |
Flanged Torx Screw M6 X 35 This part replaces 420440277. |
| 29 |
420250140 |
O-ring |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 32 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
