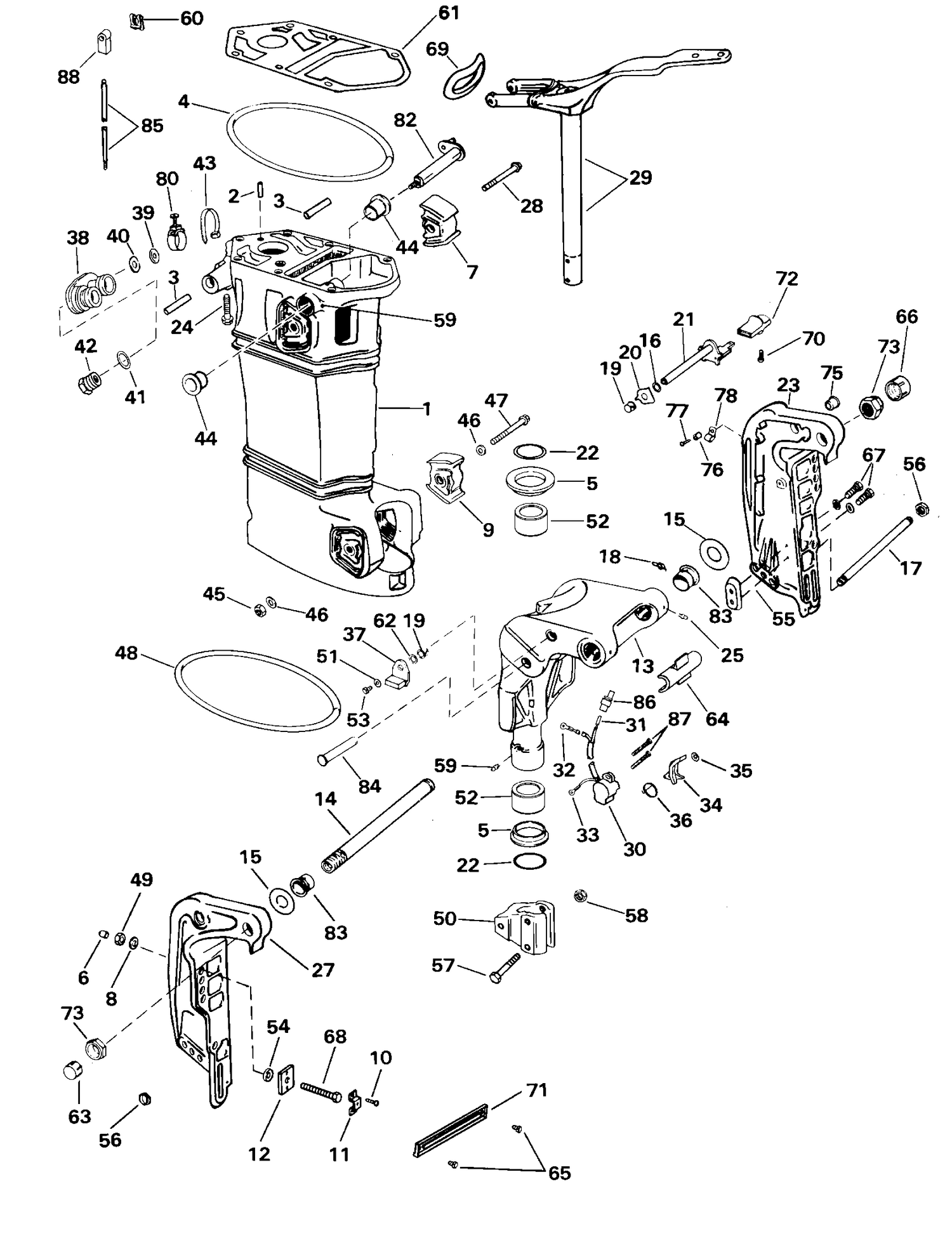

| Ref | Part Number | Description |
|---|
| 1 |
0436133 |
EXHAUST HOUSING |
| 4 |
0339390 |
EXHAUST HOUSING SEAL, Upper |
| 6 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 7 |
0438299 |
MOUNT, Upper |
| 8 |
0320248 |
RONDELLE, écrou |
| 9 |
0436039 |
MOUNT, Lower |
| 10 |
0319886 |
SCREW |
| 11 |
0318273 |
Bolt hex retainer 1/2 in. |
| 12 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 13 |
0340011 |
SWIVEL BRACKET |
| 14 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 15 |
0317782 |
THRUST WASHER |
| 17 |
0332447 |
PIN,TILT |
| 18 |
0334259 |
CLIP |
| 19 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 20 |
0333765 |
SPRING |
| 21 |
0398875 |
LEVER & SHAFT |
| 22 |
0318295 |
THRUST WASHER, Upper |
| 23 |
0344104 |
STERN BRACKET, Port |
| 27 |
0333624 |
STERN BRACKET, Starboard |
| 28 |
0343168 |
SCREW, Upper mnt. to steering arm, M10 |
| 29 |
0438298 |
ARM & SHAFT ASSY. |
| 30 |
0586083 |
SENDING UNIT |
| 37 |
0432293 |
LEVER Assembly, Trail lock |
| 38 |
0436223 |
GROMMET, Exhaust relief |
| 39 |
0335530 |
REED VALVE |
| 41 |
0301967 |
O RING |
| 42 |
0436857 |
BOUCHON & GICLEUR, indicateur d'éjection |
| 43 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 44 |
0340923 |
BUSHING, Shift shaft |
| 45 |
0338935 |
LOCKNUT, M8 |
| 46 |
0341053 |
WASHER, Lower mount screw, M8 |
| 47 |
0339741 |
SCREW, Lower mount, M8 |
| 48 |
0340800 |
EXHAUST HOUSING SEAL, Lower |
| 49 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 50 |
0339657 |
BRACKET, Lower mount |
| 52 |
0339489 |
BUSHING |
| 54 |
0307238 |
RONDELLE |
| 55 |
0173029 |
ANODE |
| 57 |
0339388 |
SCREW, Bracket to pivot shaft, M8 |
| 58 |
0338935 |
LOCKNUT, M8 |
| 60 |
0338630 |
BRIDE, à ressort, tige de commande de sens de marche vers levier coudé |
| 61 |
0339331 |
GASKET, Powerhead base |
| 62 |
0314390 |
RETAINER |
| 63 |
0317894 |
CACHE, tube de relevage |
| 64 |
0341549 |
SHIELD, Tilt tube |
| 67 |
0333674 |
SCREW, Anode |
| 68 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 68 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 68 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 68 |
0363012 |
SCREW, Bracket mounting This part replaces 0336675. |
| 69 |
0340819 |
SEAL, Steering arm |
| 70 |
0318238 |
SCREW |
| 71 |
0357240 |
TIE BAR, Stern bracket This part replaces 0334247. |
| 72 |
0334438 |
KNOB |
| 73 |
0335554 |
CROU, tube de relevage |
| 80 |
0336136 |
CLAMP |
| 82 |
0439560 |
LEVER & SHAFT ASSY. |
| 83 |
0319787 |
BUSHING |
| 84 |
0332435 |
PIN |
