Home / BRP / STERN DRIVE / 1968 / 200 / TU-16C 1968 / UPPER GEARCASE GROUP

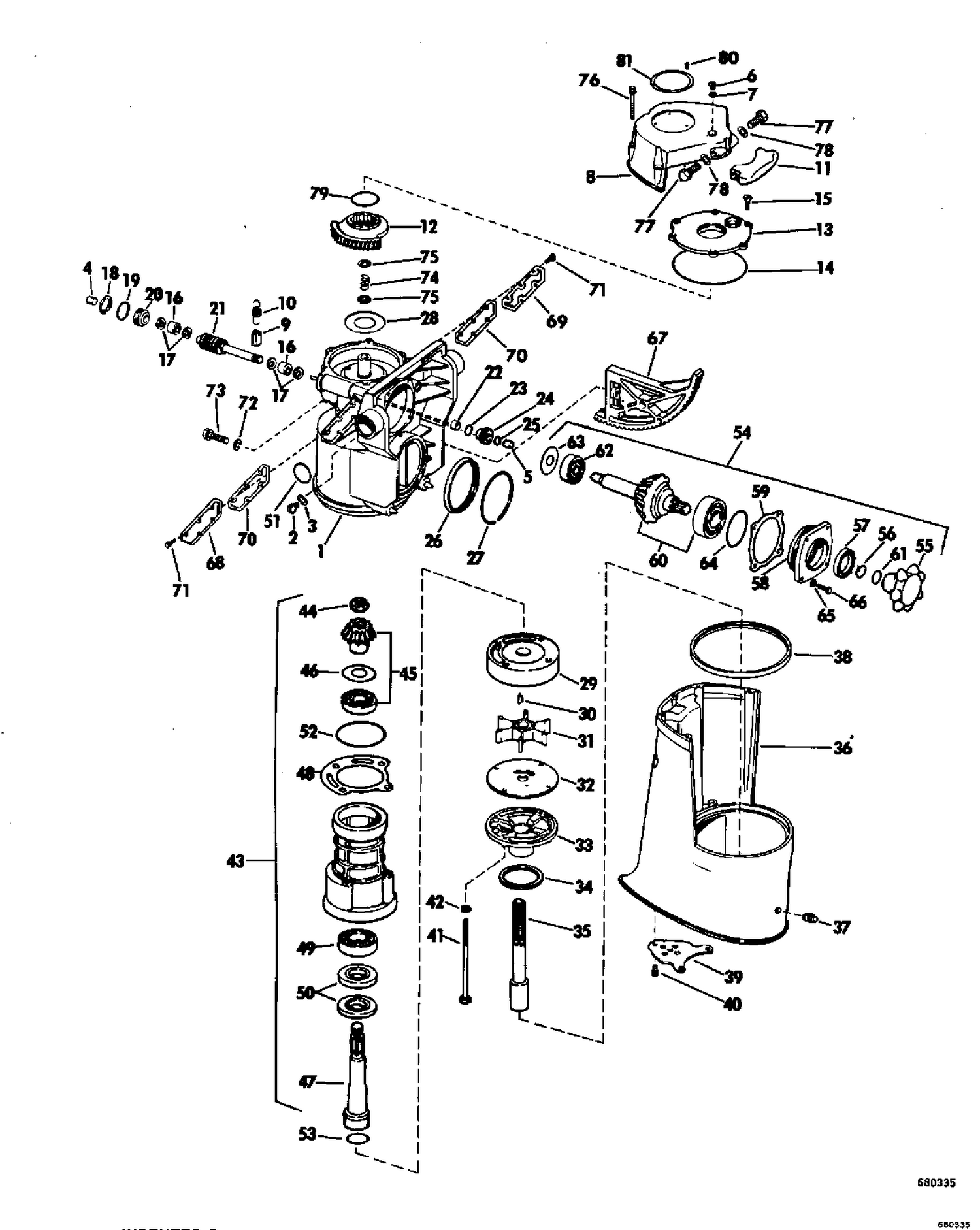

UPPER GEARCASE GROUP

UPPER GEARCASE GROUP

Parts (91)

RefPart NumberDescription
1 0980804 GEAR HOUSING & BUSHING ASSY This part replaces 0382340.
4 0310962 PLUG, Rear
5 0310963 PLUG, Front
6 0313224 PLUG,Oil fill
8 0980758 COVER,Exhaust housing This part replaces 0382463.
9 0909550 GUIDE, Cable This part replaces 0308450.
10 0308896 SPRING
11 0379259 BUMPER ASSEMBLY
12 0313183 WORM WHEEL
13 0313228 COVER, Gear housing
14 0313175 O RING, Cover
15 0308684 SCREW, Cover to housing
17 0312815 THRUST WASHER, Worm gear
18 0308625 RETAINING RING
19 3086224 O-RING,Bushing
20 0384386 RETAINER BUSHING & SPACER ASSEMBLY This part replaces 0308594.
21 0313234 SORM GEAR,Steering
22 0308883 BUSHING
24 0313235 GEAR
25 0911317 RETAINING RING, Shaft This part replaces 0313236.
26 0308768 EXHAUST SEAL
27 0308590 SPRING, Seal
28 0313220 SHIM
29 0983298 IMPELLER HOUSING This part replaces 0313172.
31 0379475 IMPELLER ASSEMBLY
32 0313176 IMPELLER HOUSING PLATE
33 0910239 SWIVEL HOUSING This part replaces 0313155.
34 0310648 THRUST WASHER
35 0313222 DRIVESHAFT
36 0382235 EXHAUST HOUSING & PLUG
37 0313221 PLUG, Exhaust housing
38 0308596 SEAL, Exhaust hosing
39 0308838 PLATE, Back pressure
41 0363011 SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0313171.
42 0322624 WASHER, Lag screw This part replaces 0313169.
43 0981221 BEARING HOUSING ASSY This part replaces 0382215.
44 0907866 LOCKNUT This part replaces 0310422.
45 0980427 PINION GEAR & BRG ASSY This part replaces 0382910.
46 0313192 SHI,Thrust washer,.002"
46 0313193 SHIM BRG.TO PINION,.003"
46 0313194 PINION,.005"
46 0313195 SHIM, Bearing to pinion , .005"
46 0313196 SHIM, Bearing to pinion .006"
46 0313197 SHIM, Bearing to pinion 0.007 inch
46 0313198 SHIM, Bearing to pinion 0.008 inch
46 0313199 SHIM, Bearing to pinion 0.009 inch
46 0313200 SHIM, Bearing to pinion 0.010 inch
47 0382883 DRIVESHAFT, Upper
48 0313185 SHIM, Bearing housing, .005"
48 0313186 SHIM, Bearing housing, .006"
48 0313187 SHIM, Bearing housing, .007"
48 0313188 SHIM, Bearing housing, .008"
48 0313189 GASKET,Screw plug
48 0313190 SHIM, Bearing housin, 0010
49 0382165 ROLLER BEARING, Lover
50 0981268 SEAL, Bearing retainer This part replaces 0313191.
51 0308626 O RING
54 0383112 BALL GEAR & SHAFT ASSEMBLY This part replaces 0382156.
55 0314579 BALL GEAR, Shaft This part replaces 0313157.
57 0981268 SEAL, Bearing retainer This part replaces 0313191.
58 0313184 BEARING RETAINER
59 0313202 SHIM, Retainer hsg. 0.002"
59 0313203 SHIM, Retainer hsg. 0.003"
59 0313204 SHIM, Retainer hsg. 0.004"
59 0313205 SHIM, Retainer hsg. 0.005"
59 0313206 SHIM, Retainer hsg. 0.010"
60 0383115 SHAFT & BEARING This part replaces 0382913.
61 0314295 RETAINER, O-ring
62 0375761 BEARING, Roller
63 0313162 SHIM BEARING TO HOUSING, .002"
63 0313163 SHIM BEARING TO HOUSING, .003"
63 0313164 SHIM BEARING TO HOUSING, .004"
63 0313165 SHIM BEARING TO HOUSING, .005"
63 0313166 SHIM BEARING TO HOUSING, .006"
63 0313167 AHIM,Bearing to hsg.,.007"
63 0313168 SHIM BEARING TO HOUSING, .008"
64 0308621 O RING, Retainer to housing
66 0308707 SCREW
67 0313223 TILT QUADRANT
68 0308591 COVER,Starboard
69 0308699 COVER,Port
70 0308592 GASKET, Water cover
72 0120177 L'WASHER, Alternator to brkt
73 0308843 SCREW, Gearcase to housing
74 0309019 SPRING
75 0309018 WASHER
76 0981185 SCREW, Cover to base This part replaces 0308686.
78 0307708 RONDELLE GROWER
80 0308873 DRIVESCREW, Applique to lever
81 0205380 EMBLEM (EVINRUDE)
81 0308786 EMBLEM (OMC)
