Parts Catalog

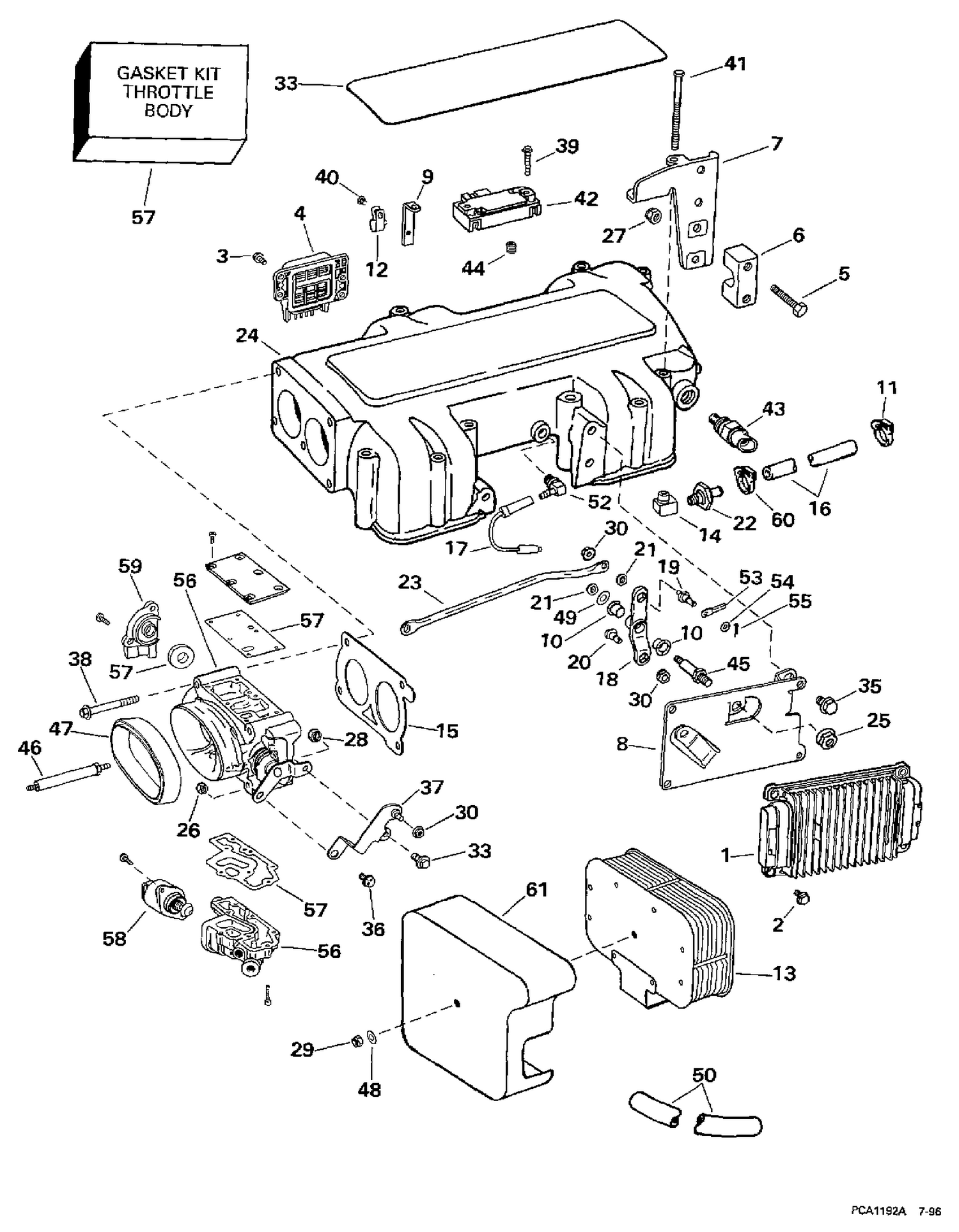

UPPER INTAKE MANIFOLD

Parts (50)

Ref	Part Number	Description
1	3858735	Module & Decal Ay This part replaces 3855763.
2	0309905	SCEW,Cylinder head This part replaces 3855578.
4	3854521	MODULE, Knock
5	0303459	ECREW,Exhaust cover,1-1/2"long This part replaces 3852048.
6	3850266	ANCHOR BLOCK
7	3851989	BRACKET, Throttle cable
8	3851988	BRACKET, Module & throttle
9	3854820	BRACKET, Fuel line
12	3854896	CLAMP, Fuel line
13	3854669	FLAME ARRESTOR
14	0910150	ELBOW, Pump This part replaces 3854675.
15	3854520	GASKET, Throttle body
16	3853582	HOSE, Reservoir to pulse limiter
17	3854677	HOSE, Regulator to intake
18	3854741	LEVER, Throttle
19	3854742	PIN, Throttle cable
20	3854743	PIN, Throttle cable
21	3854744	NUT, Pin
23	3854648	LINK THROTTLE, Lever
24	3854514	MANIFOLD, Upper
26	0123227	LOCKNUT, Motor bracket This part replaces 3852009.
28	3852420	LOCKNUT, Throttle lever
29	3852420	LOCKNUT, Throttle lever
30	3853404	NUT, Exhaust manifold
31	3853729	NUT, Lever to bracket
33	3854991	DECAL, Intake manifold
34	0319292	SCREW, Clamp This part replaces 3852154.
35	3853398	SCREW, Clamp to cylinder head
36	3853428	SCREW, Anchor bracket
37	3854566	THROTTLE LEVER & PIN
38	3854651	SCREW, Throttle body
39	3854655	SCREW, MAP sensor
40	3854897	SCREW, Fuel line clamp
41	3855091	SCREW, Upper intake
42	3850396	SENSOR, Manifold air pressure
43	3854527	SENSOR, Manifold air temperature
44	3854650	SEAL, MAP sensor
45	0914616	SHAFT, Shift lever This part replaces 3854649.
46	3854671	STUD, Flame arrestor
47	3854670	GROMMET, Flame arrestor
49	0328738	LOCKWASHER This part replaces 3852189.
50	3852668	HOSE Crankcase vent
51	3854666	HOSE, Flame arrestor
52	3854679	ELBOW, Regulator hose
53	3850950	ANCHOR, Cable
54	0329241	RONDELLE This part replaces 3852193.
56	3854519	THROTTLE BODY
57	3855193	GASKET KIT, Throttle body
58	3855185	IDLE AIR CONTROL VALVE This part replaces 3855194.
59	3855296	SENSOR, Throttle position
