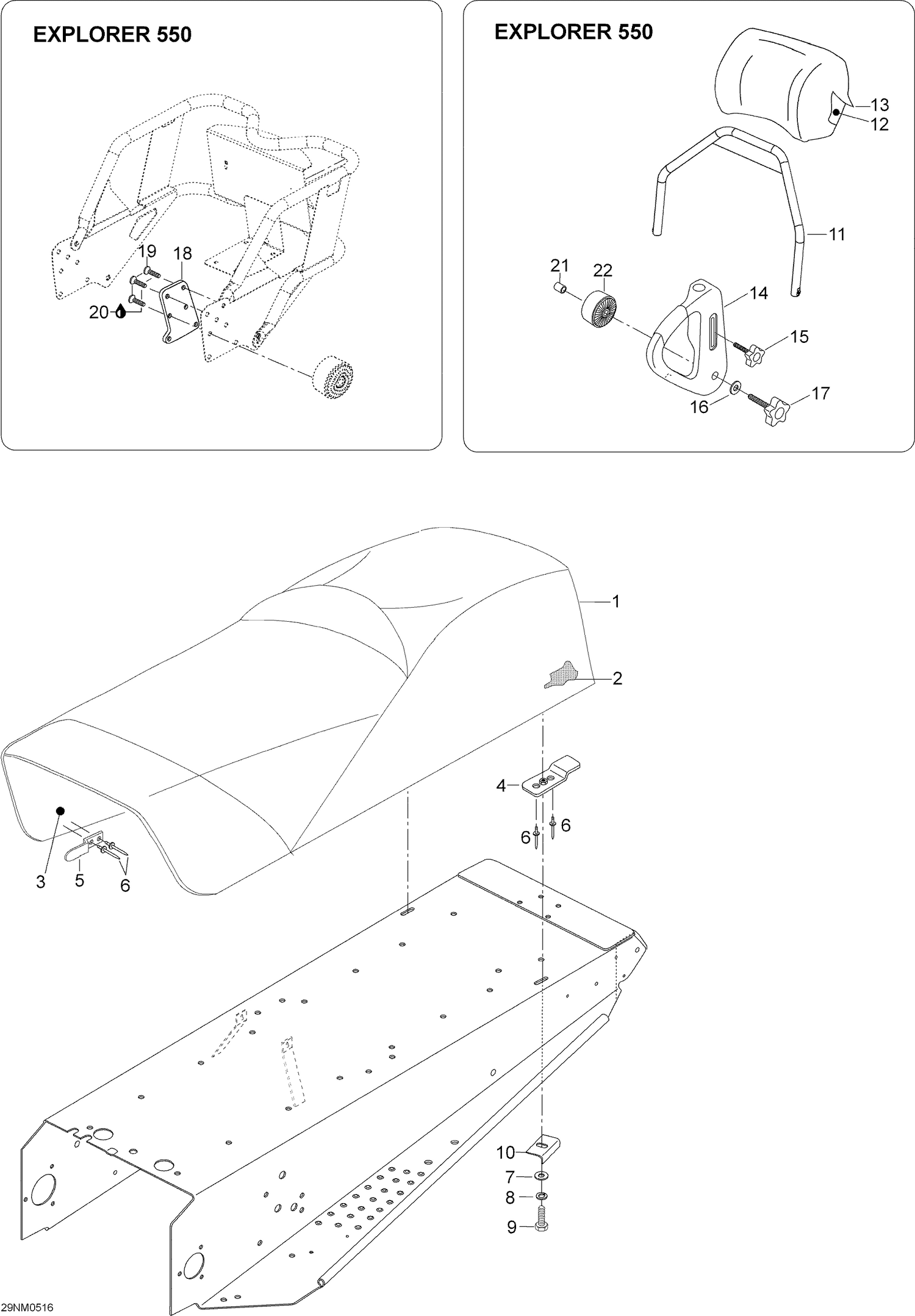

| Ref | Part Number | Description |
|---|
| 1 |
605148618 |
Seat cover |
| 2 |
5146604 |
Seat foam |
| 3 |
5146603 |
Seat bottom |
| 4 |
5447928 |
Fastening plate, rear |
| 5 |
5447909 |
Fastening plate, front |
| 6 |
Not |
Available As Spare Part - Connector Engine |
| 7 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 8 |
20014 |
Lock washer A8 |
| 9 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 10 |
5447994 |
Support plate |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
