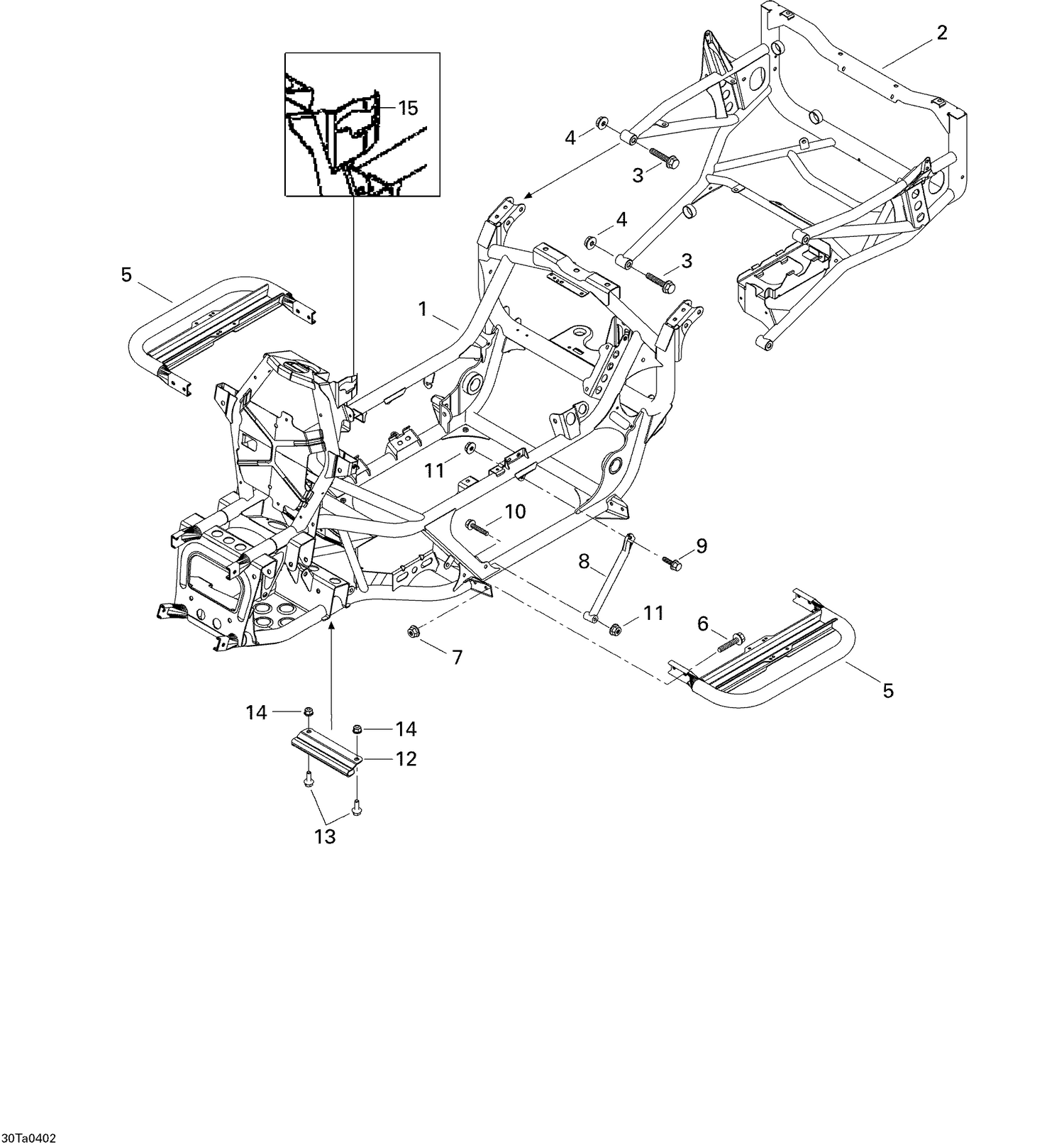

09- Frame
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200723 | Frame, Black |
| 3 | 207605544 | Hex. Flange Screw M10 X 55 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 705000610 | Footrest, Black |
| 6 | 207682044 | Hex. Flange Screw M8 X 20 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 705200143 | Removable Brace, Black |
| 9 | 207682544 | Hex. Flange Screw M8 X 25 |
| 10 | 207685044 | Hex. Flange Screw M8 X 50 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 705200575 | Bracket, Black |
| 13 | 207661644 | Hex. Flange Screw M6 X 16 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
