| Ref | Part Number | Description |
|---|
| 9 |
0302288 |
BOLT |
| 10 |
0306049 |
SCREW |
| 13 |
0394380 |
CYLINDER HEAD |
| 14 |
0330273 |
CAP, Thermostat |
| 15 |
0320880 |
SEAT |
| 18 |
0395700 |
FLAME ARRESTER |
| 20 |
0322323 |
SCREW |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
0306049 |
SCREW |
| 23 |
0333858 |
SPRING, Relief valve This part replaces 0329831. |
| 24 |
0333967 |
COVER, Thermostat and valve This part replaces 0329829. |
| 25 |
0393545 |
BELLCRANK ASSY., Shift |
| 26 |
0317581 |
SCREW, Actuator cam |
| 27 |
0329830 |
GASKET, Cover |
| 28 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 29 |
0316676 |
LOCKWASHER, Ground |
| 30 |
0333962 |
LIFT BRACKET This part replaces 0331569. |
| 31 |
0343864 |
COVER, Exhaust manifold This part replaces 0329834. |
| 33 |
0202026 |
LOCK WASHER, Stud |
| 35 |
0306049 |
SCREW |
| 36 |
0331933 |
HOSE, Adapter to control valve |
| 37 |
0434137 |
THERMOSTAT ASSY, This part replaces 0394409. |
| 38 |
0434137 |
THERMOSTAT ASSY, This part replaces 0329766. |
| 39 |
0394411 |
THERMOSTAT & SEAT ASSY. |
| 41 |
0306337 |
SCREW, Adjustment |
| 42 |
0314021 |
BUMBER, Exhaust manifold |
| 43 |
0319318 |
LEVER, Spark adavance |
| 45 |
0395448 |
BALL & SOCKET ASSY |
| 46 |
0332180 |
LINK, Spark advance |
| 47 |
0394466 |
CAM & PIN ASSY., Throttle |
| 49 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 50 |
0397018 |
YOKE & THUMBWHEEL |
| 51 |
0387800 |
LEVER, Throttle |
| 52 |
0318192 |
SHDLR. SCREW, Throttle lever |
| 53 |
0314002 |
BUSHING |
| 54 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 55 |
0314003 |
BSHING, Spark lever |
| 56 |
0314098 |
WASHER, Throttle lever |
| 57 |
0314094 |
LINK, Throttle lever to cam |
| 58 |
0329889 |
LINK Throttle lever to cam |
| 59 |
0314136 |
VIS, came de papillon |
| 61 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 62 |
0328734 |
BOW WASHER |
| 65 |
0306012 |
BOW WASHER |
| 68 |
0908060 |
BOW WASHER, Shoulder screw |
| 69 |
0395588 |
LEVER & PIN ASSY., Shift lever |
| 70 |
0318193 |
BUSHING |
| 71 |
0329836 |
GASKET, Cylinder head |
| 72 |
0306049 |
SCREW |
| 73 |
0328722 |
SCREW, Spark adjust |
| 74 |
0386686 |
SWITCH TEMP |
| 77 |
0376349 |
FIL, masse |
| 78 |
0316664 |
BRACKET, Adjustment |
| 80 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 81 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 82 |
0314416 |
BUMBER, Advance screw |
| 84 |
0318951 |
BUSHING, Shift lever to c'case |
| 86 |
0343863 |
GASKET, Exhaust manifold This part replaces 0329833. |
| 88 |
0345600 |
SHIFT LEVER This part replaces 0330940. |
| 90 |
0328567 |
LINK, Bellcrank |
| 91 |
0306322 |
BOLT, Water pump |
| 97 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |

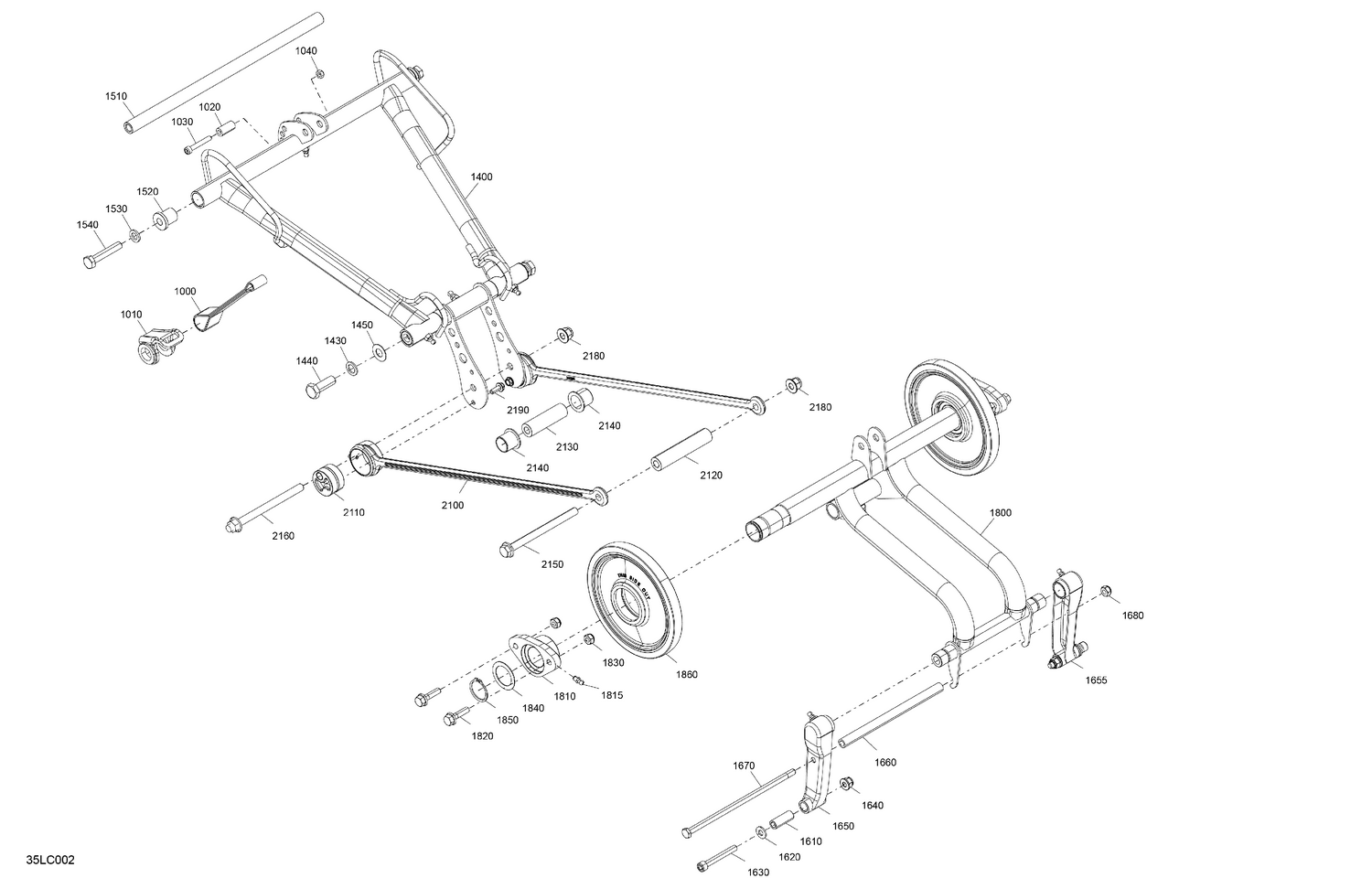

| 1000 |
503195777 |
Strap Stopper |
| 1010 |
503194867 |
Holder, Limiter Strap |
| 1020 |
503195579 |
Sleeve |
| 1030 |
207084544 |
Hex. Screw M8 X 45 |
| 1040 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1400 |
503195582 |
Front Arm Ass'y |
| 1430 |
503192491 |
Washer |
| 1440 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 1450 |
706200281 |
Hardened Washer |
| 1510 |
503195698 |
Upper Shaft |
| 1520 |
503189324 |
Bushing |
| 1530 |
503191926 |
Washer |
| 1540 |
250000605 |
Hex. Screw S.GRIP M10 X 55 |
| 1610 |
503194726 |
Pivot Arm Axle |
| 1620 |
503192494 |
Washer |
| 1630 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1640 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1650 |
503195357 |
LH Rear Swing Arm Ass'y |
| 1655 |
503195358 |
RH Rear Swing Arm Ass'y |
| 1660 |
503195051 |
Spacer |
| 1670 |
503195344 |
Bolt M8 |
| 1680 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1800 |
503195578 |
Rear Arm Ass'y |
| 1810 |
503195042 |
Cushion |
| 1815 |
408200700 |
Grease Fitting |
| 1820 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1830 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1840 |
503195150 |
Shim Ring 30X42X1.0 |
| 1850 |
293370143 |
Circlip |
| 1860 |
503195041 |
Wheel Ass'y 170 MM |
| 2100 |
503195312 |
Link Rod Ass'y |
| 2110 |
503195337 |
Rod Shaft |
| 2120 |
503194457 |
Rod Shaft |
| 2130 |
503195030 |
Front Swing Shaft |
| 2140 |
503195184 |
Bushing |
| 2150 |
230603044 |
Hex. Flanged Screw DIN.6921 |
| 2160 |
230604044 |
Hex. Flanged Screw M10 X 140 |
| 2180 |
233201414 |
Hex. Flanged Elastic Nut M10 |
| 0394465 |
0394465 |
CYLINDER & CRANKCASE ASSY. |
