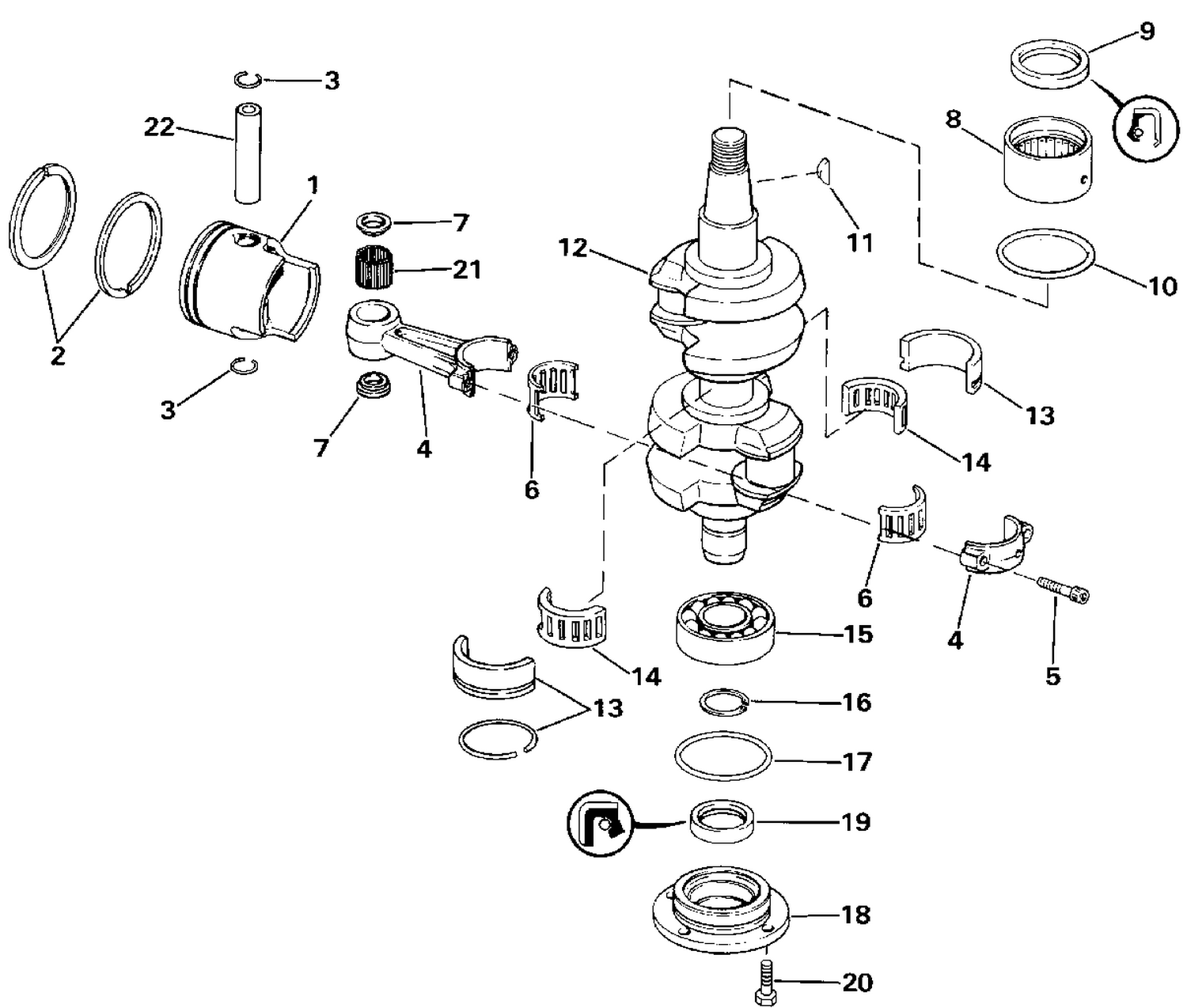

| Ref | Part Number | Description |
|---|
| 1 |
5006655 |
Pstn&Ring Kit-Std This part replaces 0391798. |
| 1 |
5006665 |
Pstn&Ring Kit This part replaces 0391417. |
| 2 |
0391170 |
RING SET STD. |
| 2 |
0391416 |
RING SET .030 |
| 3 |
0317831 |
Circlip |
| 4 |
0395861 |
CONNECTING ROD This part replaces 0388232. |
| 6 |
0437088 |
BEARING Assy This part replaces 0388344. |
| 7 |
0395627 |
BEARING & RETAINER This part replaces 0329541. |
| 8 |
0390900 |
ROLLER BEARING ASSY |
| 10 |
0313754 |
O RING |
| 11 |
0120395 |
KEY |
| 12 |
0334203 |
CRANKSHAFT This part replaces 0328842. |
| 13 |
0310433 |
SLEEVE |
| 14 |
0378252 |
BEARING ASSY., Needle |
| 17 |
0308876 |
O RING CRANKCASE HEAD LOWER |
| 18 |
0395820 |
CRANKCASE HEAD ASSY. This part replaces 0385835. |
| 20 |
0551793 |
SCREW |
| 21 |
0395627 |
BEARING & RETAINER This part replaces 0394226. |
