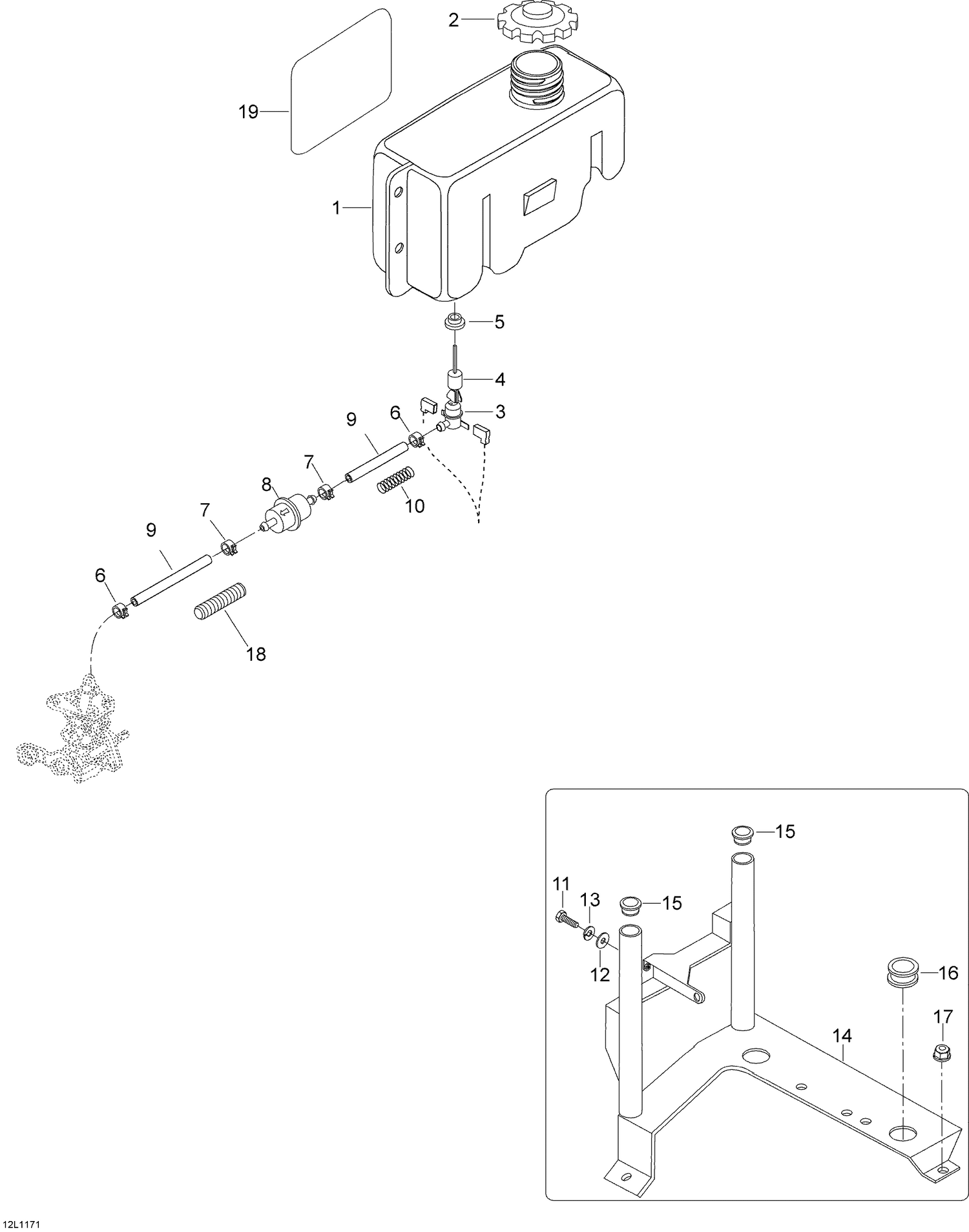

02- Oil System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5142700 | Oil tank |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 605452095 | OIL SENSOR - Call your local BRP dealership |
| 4 | Not | Available As Spare Part - Float for sensor |
| 5 | 570023000 | Insulating Ring |
| 6 | 414420700 | Universal Spring Clamp |
| 7 | 414415200 | Universal Spring Clamp |
| 8 | 414536500 | Filter |
| 9 | 39046 | Oil line |
| 10 | 519000065 | SPRING - Call your local BRP dealership |
| 11 | 40114 | Screw M6 x 10 |
| 12 | 234062410 | Flat Washer 6 mm |
| 13 | 20052 | Lock washer A6 |
| 14 | 605355528 | Oil Tank Support |
| 15 | 28136 | Plug |
| 16 | 28022 | Grommet |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 28015 | Housing |
