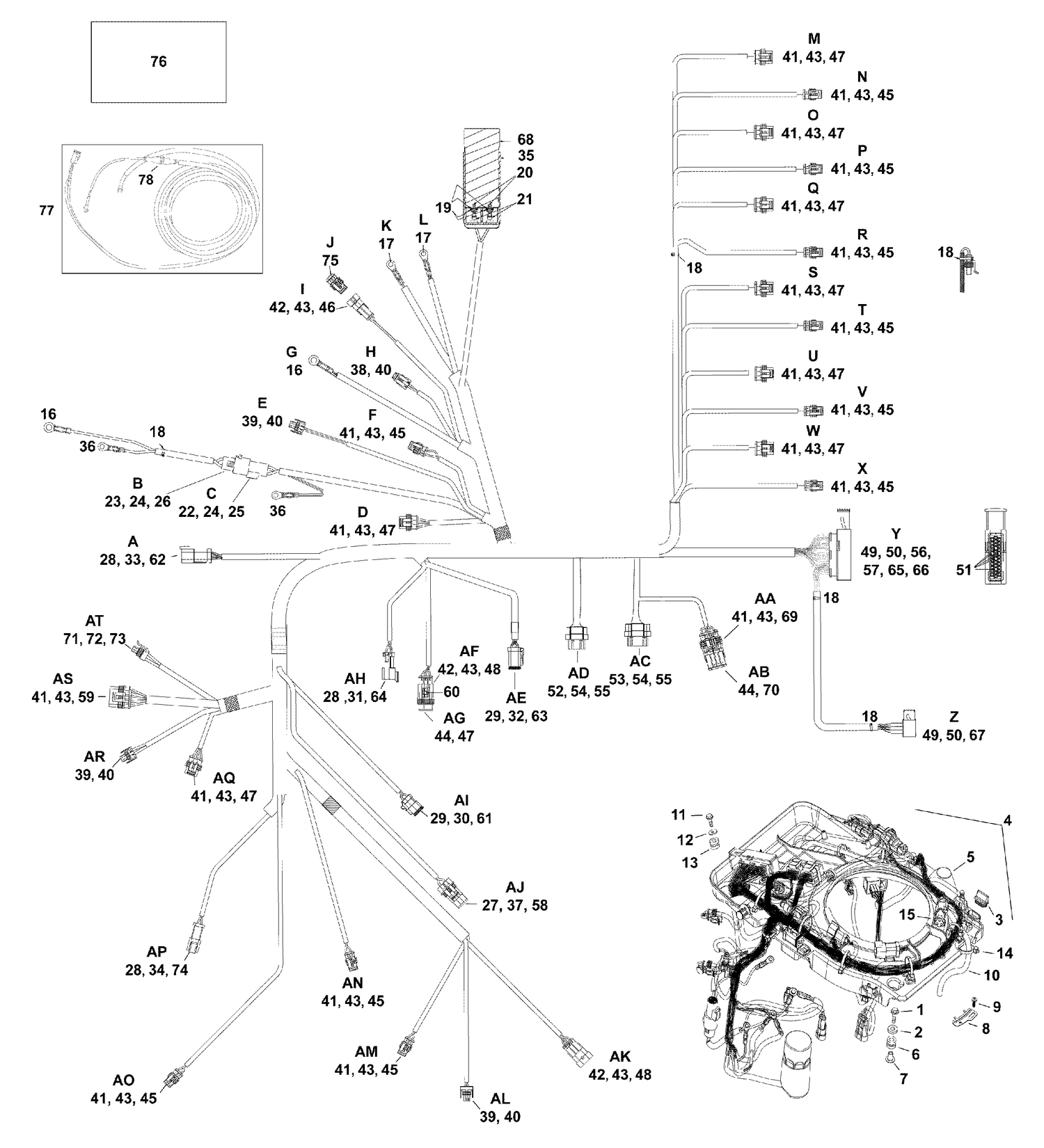

| Ref | Part Number | Description |
|---|
| A |
SYSTEM |
CHECK CONNECTOR |
| AA |
CANbus |
CONNECTOR |
| AB |
SEAL |
ASSEMBLY, CANbus connector |
| AC |
EMM |
J1-A CONNECTOR |
| AD |
EMM |
J1-B CONNECTOR |
| AE |
KEY |
SWITCH CONNECTOR |
| AF |
WATER |
PRESSURE SENSOR CONNECTOR |
| AG |
SEAL |
ASSEMBLY, Water pressure sensor |
| AI |
DIAGNOSTIC |
CONNECTOR |
| AJ |
FUSE |
HOLDER |
| AK |
TRIM |
SENDING UNIT CONNECTOR |
| AL |
PORT |
CYLINDER HEAD TEMPERATURE SENSOR CONNECTOR |
| AM |
TILT |
LIMIT SWITCH CONNECTOR |
| AN |
WATER |
IN FUEL SENSOR CONNECTOR |
| AO |
FUEL |
PUMP CONNECTOR |
| AP |
OIL |
TANK CONNECTOR |
| AQ |
CRANKSHAFT |
POSITION SENSOR CONNECTOR |
| AR |
AIR |
TEMPERATURE SENSOR CONNECTOR |
| AS |
OIL |
PUMP CONNECTOR |
| B |
SEAL |
ASSEMBLY, Battery isolator |
| C |
BATTERY |
ISOLATOR CONNECTOR |
| E |
STARBOARD |
CYLINDER HEAD TEMPERATURE SENSOR CONNECTOR |
| H |
STARTER |
SOLENOID |
| I |
SHIFT |
SWITCH CONNECTOR |
| J |
SEAL |
ASSEMBLY, Shift switch connector |
| K |
BATTERY |
GROUND CONNECTOR |
| L |
MAIN |
GROUND CONNECTOR |
| M |
IGNITION |
COIL #6 CONNECTOR |
| N |
FUEL |
INJECTOR #6 CONNECTOR |
| NS |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| NS |
0352041 |
GROMMET, Water valve |
| O |
IGNITION |
COIL #4 CONNECTOR |
| P |
FUEL |
INJECTOR #4 CONNECTOR |
| Q |
IGNITION |
COIL #2 CONNECTOR |
| R |
FUEL |
INJECTOR #2 CONNECTOR |
| S |
IGNITION |
COIL #5 CONNECTOR |
| T |
FUEL |
INJECTOR #5 CONNECTOR |
| U |
IGNITION |
COIL #3 CONNECTOR |
| V |
FUEL |
INJECTOR #3 CONNECTOR |
| W |
IGNITION |
COIL #1 CONNECTOR |
| X |
FUEL |
INJECTOR #1 CONNECTOR |
| Y |
EMM |
J2 CONNECTOR |
| Z |
STATOR |
CONNECTOR |
| 4 |
0587010 |
BASE & HARNESS ASSEMBLY |
| 14 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 75 |
0586821 |
CONNECTOR & SEA, 2-Pin plug |
