Parts Catalog

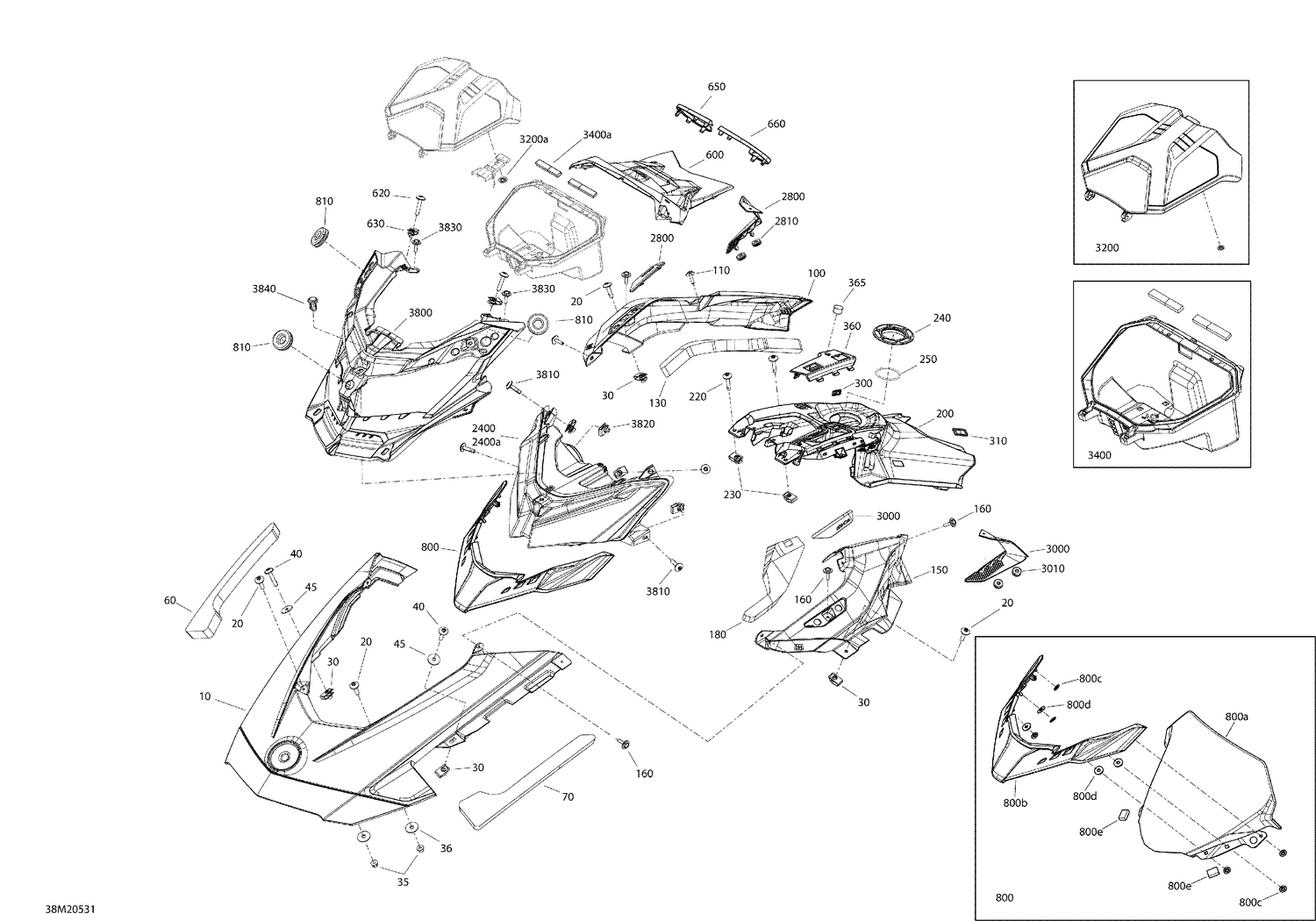

09- Body - Hood Section - XRS Iron Dog - Deep Black

Parts (47)

Ref	Part Number	Description
10	517307291	Deep Black, Front Hood
20	250000528	Torx Screw M5 X 20
30	250000958	Panel Nut M5 X 0.8
35	233151414	Hex. Flange Nut M5
36	250200040	Flat Washer
40	250000587	Torx Screw M5 X 26
45	250200166	Washer
60	517305763	RH Front Hood Foam
70	517305764	LH Front Hood Foam
100	517307299	Deep Black, RH Hood
110	250000725	Screw M4 X 16
130	517306001	RH Hood Foam
150	517307300	Deep Black, LH Hood
160	250000725	Screw M4 X 16
180	517306002	LH Hood Foam
200	517307685	Rear Console This part replaces 517306898.
210	233251434	Flange Elastic Nut M5
220	250000587	Torx Screw M5 X 26
230	250000958	Panel Nut M5 X 0.8
240	517306602	Console Nut
250	706002839	O-Ring
300	XXX	Not Available As Spare Parts
310	XXX	Not Available As Spare Parts
360	517306580	LH Front Console
365	572051500	Cap
600	517306537	Gauge Support
620	250000587	Torx Screw M5 X 26
630	250000958	Panel Nut M5 X 0.8
650	705012351	Deep Black, RH Trim Gauge
660	705012349	Deep Black, LH Trim Gauge
800a	517306423	Windshield 360
800b	517305749	Deep Black, Windshield Support
800c	732610072	Push Nut
800d	250200024	Rubber Washer 5 mm
800e	219704476	Gasket, Neoprene 2000Mm Long This part replaces 219704372.
810	517303756	Grommet
2400a	415130081	Bulb
2800	517305776	RH Deflector Black 63% Light Transm.
2810	517307161	Grommet This part replaces 517302841.
3000	517305777	Deflector LH, Black 63% Light Transm.
3010	517307161	Grommet This part replaces 517302841.
3200a	732610072	Push Nut
3400a	517305157	Seal Joint
3800	517305746	Deep Black, Headlamp Fairing
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
3830	250000725	Screw M4 X 16
