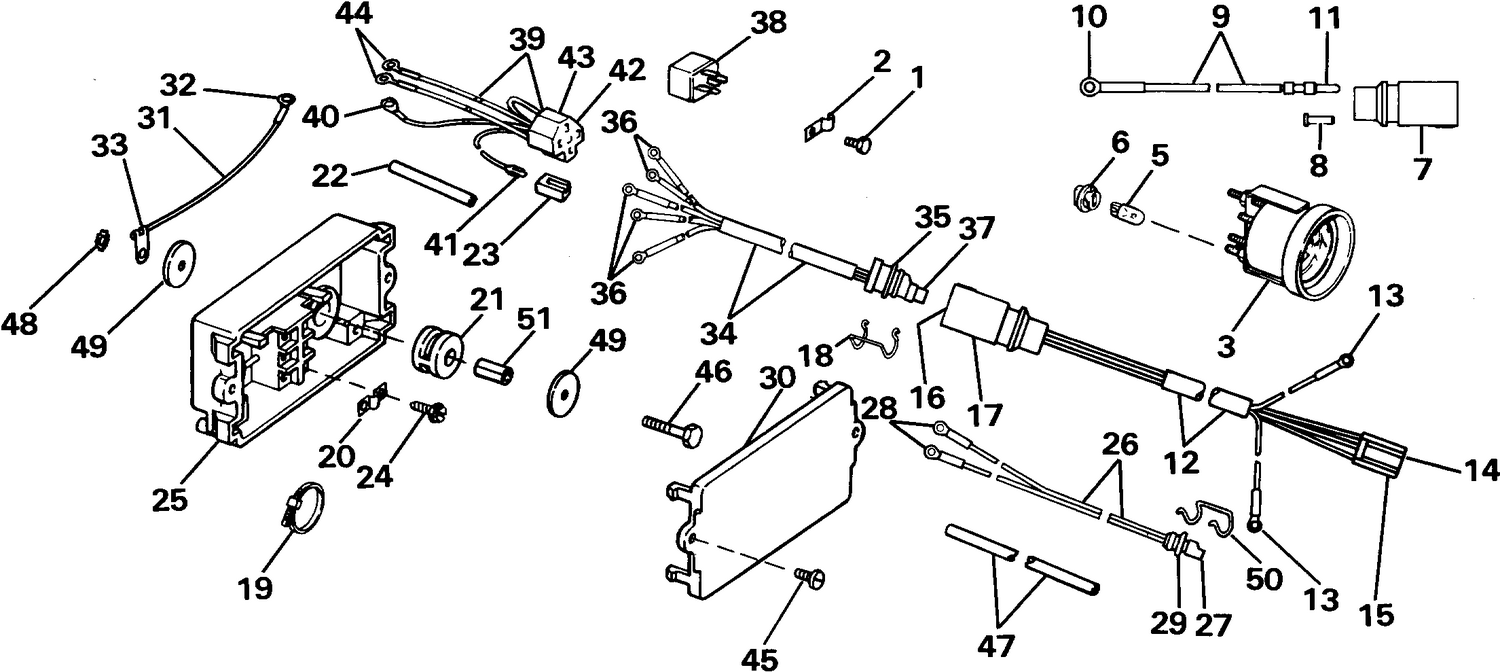

| Ref | Part Number | Description |
|---|
| 2 |
0317000 |
COLLIER, câble |
| 3 |
0582878 |
INDICATOR GAUGE ASSY. |
| 9 |
0582093 |
LEAD ASSY This part replaces 0582092. |
| 12 |
0396144 |
CABLE ASSY., Switch & gauge |
| 17 |
0512432 |
CONNECTER |
| 18 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 19 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 20 |
0315004 |
FIL DE LIAISON, bornier |
| 21 |
0315057 |
MOUNT, Bracket |
| 24 |
0329289 |
JUNCTION BOX & COVER |
| 25 |
0512776 |
BASE Junction box |
| 26 |
0583105 |
CABLE ASSY., Sending unit This part replaces 0582948. |
| 29 |
0511989 |
CONNECTOR |
| 30 |
0583707 |
COVER ASSY This part replaces 0583090. |
| 31 |
0582671 |
LEAD ASSY. Junction box ground |
| 34 |
0582672 |
CONNECTOR & LEAD ASSY. |
| 35 |
0512415 |
CONNECTOR |
| 39 |
0582986 |
CONN ASSY., Blue leads (trim up) |
| 39 |
0582987 |
CONN ASSY., Green leads (trim down) |
| 45 |
0329182 |
VIS, borne |
| 46 |
0303398 |
VIS, support |
| 47 |
0327267 |
SLEEVE This part replaces 0512422. |
| 0396147 |
0396147 |
GAUGE & CABLE ASSY. |
| 0582947 |
0582947 |
JUNCTION BOX & COVER ASSY. |
