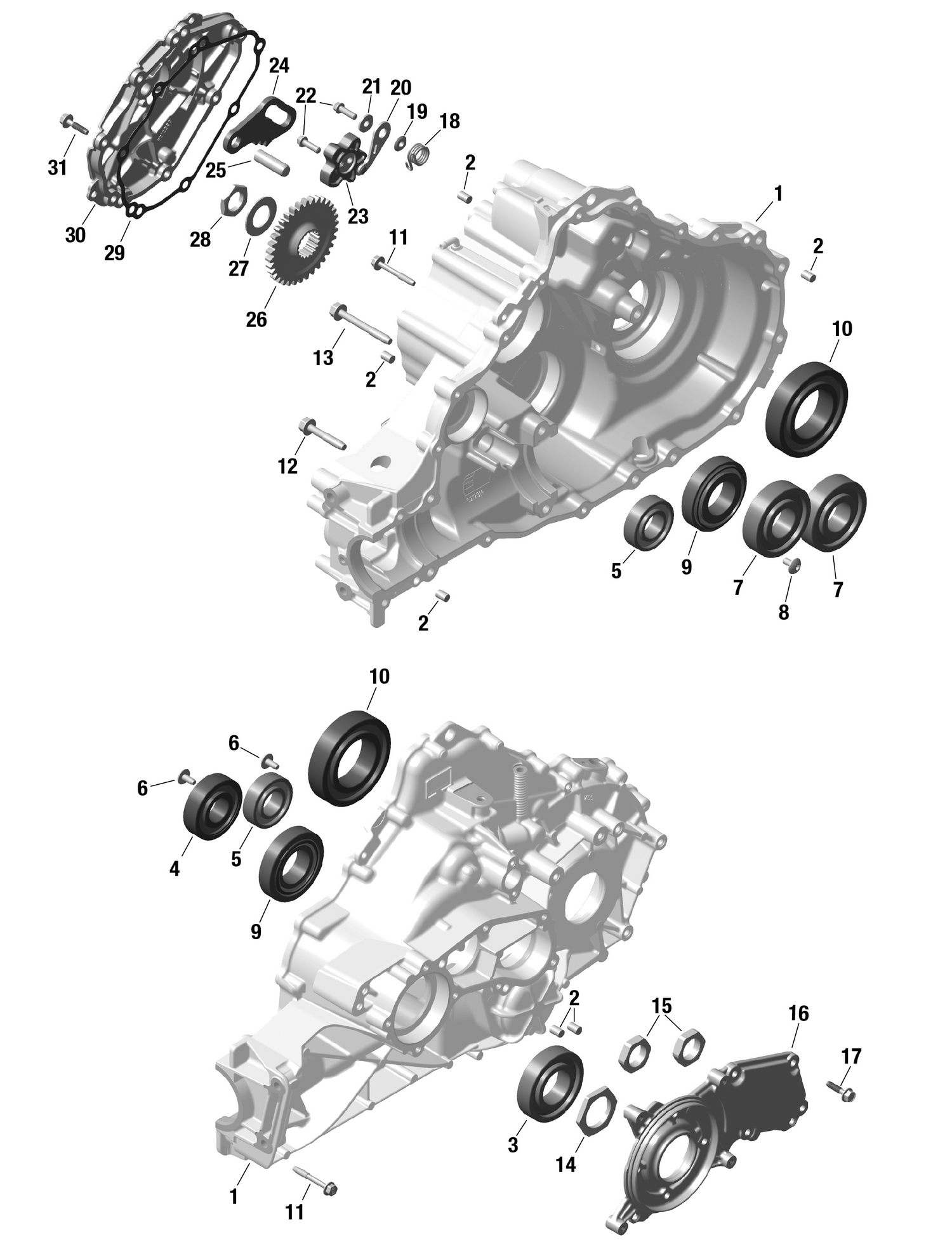

01- ROTAX - Gear Box 1 - 686 806 - Hua Yong - 1st Generation
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420686806 | Gear Box |
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420632745 | Ball Bearing |
| 4 | 420832098 | Ball Bearing |
| 5 | 420232771 | Ball Bearing This part replaces 420232760. |
| 6 | 420240051 | Torx Screw M6X13 |
| 7 | 420932593 | BALL BEARING This part replaces 420932573. |
| 8 | 420241537 | Hex Flat Head Screw M6 X 13 T30 |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 420632871 | Ball Bearing |
| 11 | 420441922 | Torx Flange Screw M6 X 45 |
| 12 | 420441932 | Torx Flange Screw M8 X 45 |
| 13 | 420441942 | Torx Flange Screw M8 X 65 |
| 14 | 420842600 | Hex Nut M34 X 1.5 |
| 15 | 420242012 | Hex. Nut M24 This part replaces 420242954. |
| 16 | 420212381 | Bearing Cover |
| 17 | 420441952 | Torx Flange Screw M6 X 25 |
| 18 | 420239566 | Spring |
| 19 | 420227717 | Step Ring |
| 20 | 420248528 | Index Lever Ass'y |
| 21 | 420827303 | Washer 6.2/18/2 |
| 22 | 420441835 | Torx Flange Screw M6 X 20 |
| 23 | 420248024 | Index Washer |
| 24 | 420657440 | Parking Lock Lever |
| 25 | 420249190 | Needle Pin |
| 26 | 420634938 | Gear |
| 27 | 420245860 | Spring Washer |
| 28 | 420242879 | Nut |
| 30 | 420212391 | Gear Box Cover |
