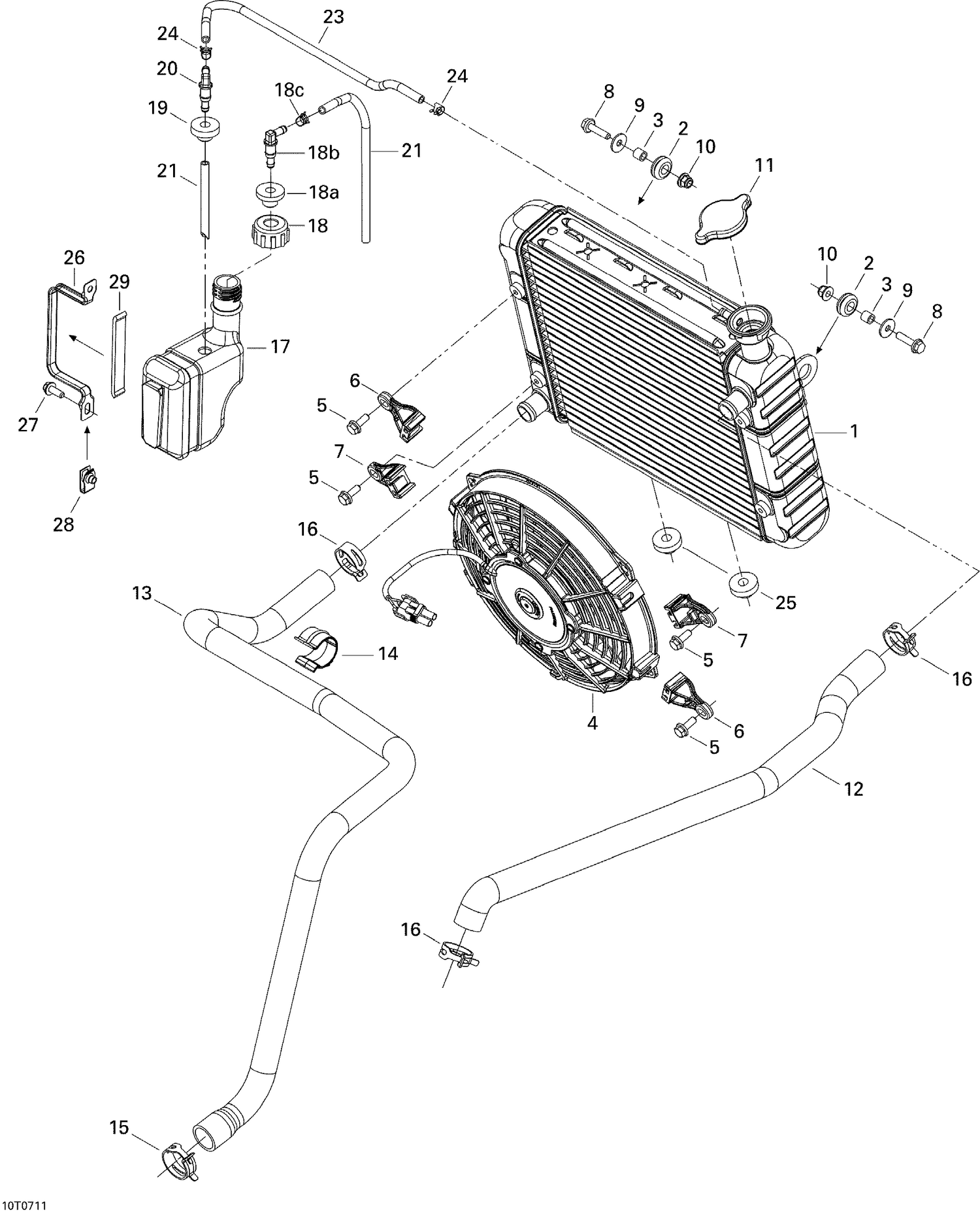

| Ref | Part Number | Description |
|---|
| 1 |
709200120 |
RADIATOR - Call your local BRP dealership |
| 2 |
709000582 |
Grommet This part replaces 293720053. |
| 3 |
293900105 |
Bushing This part replaces 293900045. |
| 4 |
709200124 |
Fan |
| 5 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 6 |
709200125 |
FAN SUPPORT - Call your local BRP dealership |
| 7 |
709200126 |
FAN SUPPORT - Call your local BRP dealership |
| 8 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 9 |
250200082 |
Flat Washer This part replaces 391302000. |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
709200207 |
Radiator Pressure Cap This part replaces 709200033. |
| 12 |
709200130 |
RADIATOR INLET HOSE - Call your local BRP dealership |
| 13 |
709200131 |
RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 14 |
275500526 |
Retainer |
| 15 |
293650108 |
Norma Spring Clamp |
| 16 |
293650109 |
Norma Spring Clamp |
| 17 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 18 |
709200586 |
Cap This part replaces 548872589. |
| 18a |
293830136 |
Grommet This part replaces 548872584. |
| 18b |
414580700 |
Male Connector |
| 18c |
414554800 |
Spring Clamp |
| 19 |
709200285 |
Grommet This part replaces 570135100. |
| 20 |
414580600 |
Elbow Male Connector |
| 21 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 23 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 24 |
414554800 |
Spring Clamp |
| 25 |
709200285 |
Grommet This part replaces 570135100. |
| 26 |
709200080 |
TANK ANCHOR - Call your local BRP dealership |
| 27 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 28 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
