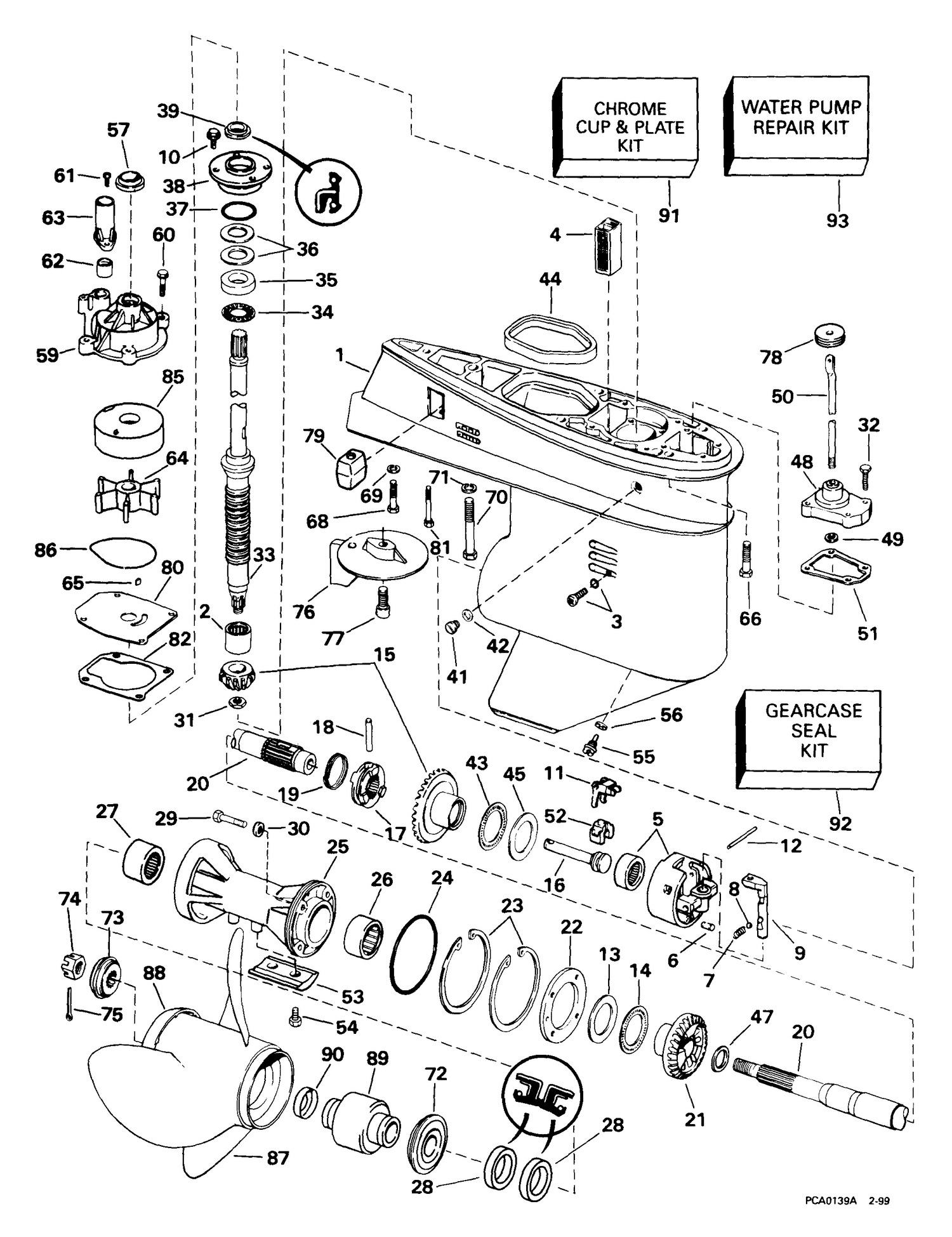

GEARCASE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5009348 | Grcse&Brg Prime This part replaces 0392478. |
| 37 | 0313754 | O RING |
| 66 | 0308843 | SCREW, Gearcase to housing |
| 68 | 0306503 | SCREW, Short |
| 70 | 0313697 | SCR,Grc to hsg.long |
| 71 | 0306314 | L'WASHER,Scr,long |
| 76 | 0127466 | TRIM TAB |
| 77 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 | 0321452 | GROMMET |
| 87 | PROPELLER | Ref: 88 0332393 *Converging Ring 0332393 |
| 91 | 0389145 | CHROME CUP & PLATE KIT |
| 92 | 5000309 | GEARCASE SEAL KIT This part replaces 0396349. |
| 0432624 | 0432624 | GEARCASE ASSY. |
