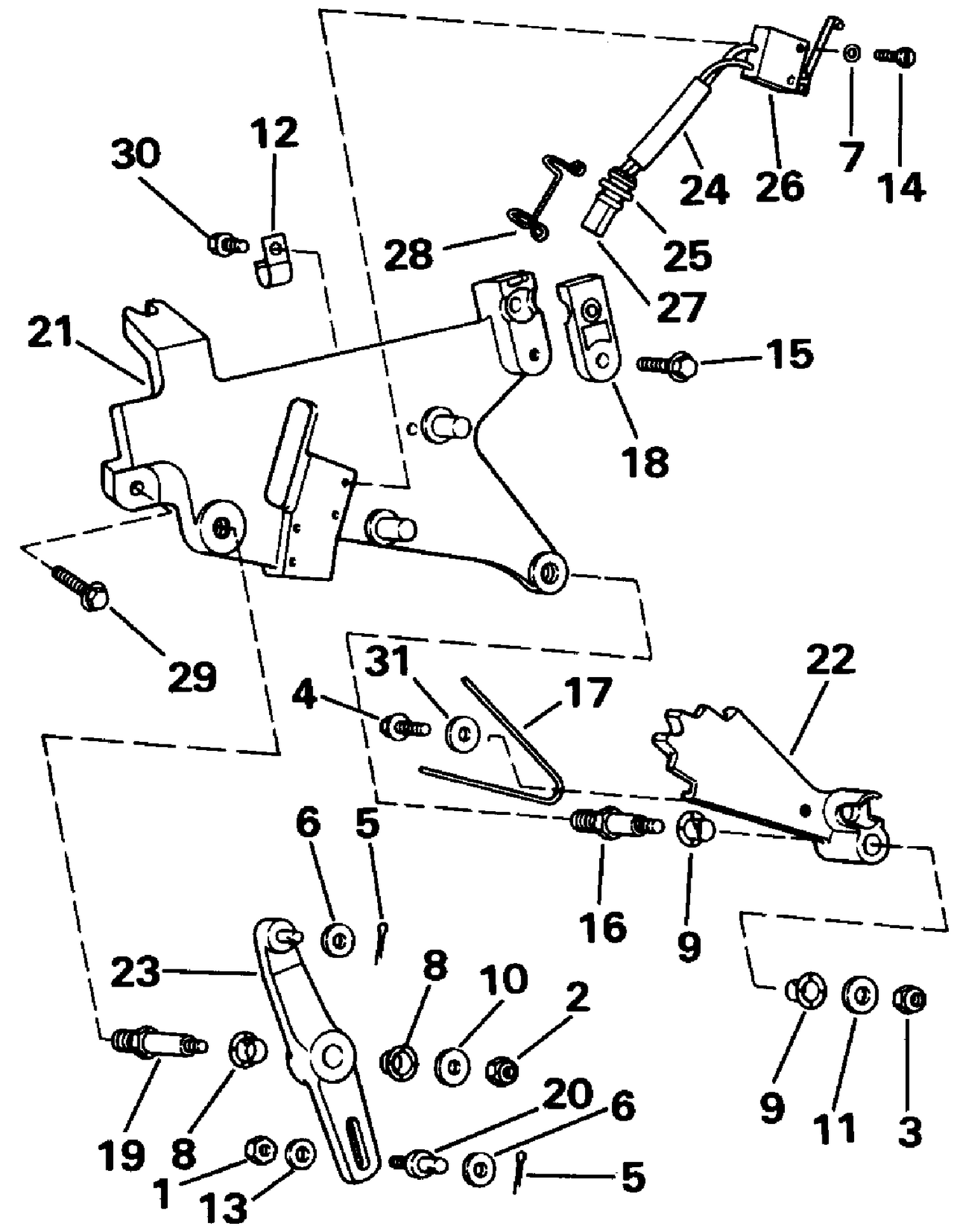

| Ref | Part Number | Description |
|---|
| 4 |
0915042 |
SCREW, Shift interrupter spring |
| 10 |
0328738 |
LOCKWASHER |
| 11 |
0328738 |
LOCKWASHER |
| 12 |
0330151 |
CLAMP, Harness to oil tank boss |
| 15 |
0909533 |
SCREW, Pressure relief valve cover |
| 16 |
0912094 |
SHAFT Pivot |
| 17 |
0912686 |
SPRING, Shift interrupter |
| 18 |
3852836 |
ANCHOR BLOCK This part replaces 0913795. |
| 19 |
0914616 |
SHAFT, Shift lever |
| 20 |
3853314 |
PIN, Shift cable This part replaces 0914727. |
| 21 |
0915839 |
BRACKET, Shift assist |
| 22 |
0914924 |
HOUSING, Shift interrupter |
| 23 |
0987553 |
LEVER ARM & PIN |
| 24 |
0987602 |
SWITCH & CONNECTOR |
| 25 |
3853564 |
CONNECTOR This part replaces 0915841. |
| 26 |
0984148 |
SWITCH & TERMINAL |
| 28 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 29 |
0341013 |
SCREW, Cover This part replaces 0908668. |
