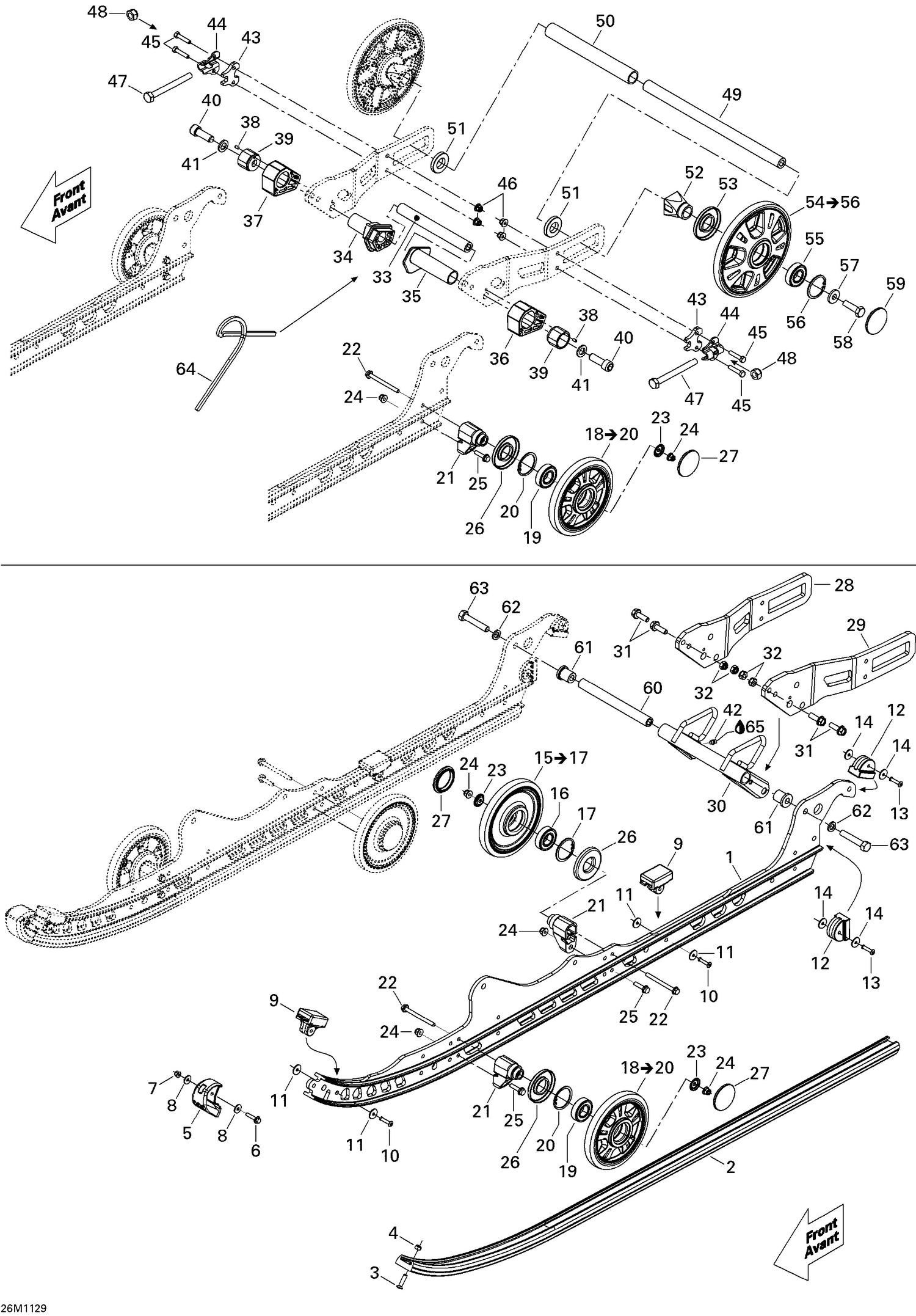

08- Rear Suspension
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503193397 | Runner This part replaces 503192617. |
| 2 | 503191619 | Slider 137 |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 391301600 | Washer |
| 9 | 503190576 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 503191291 | Rubber Stopper |
| 13 | 293150142 | Pop Rivet 3/16" |
| 14 | 503191273 | Washer |
| 16 | 503190396 | Ball Bearing |
| 17 | 415129371 | Retaining Ring |
| 19 | 503190396 | Ball Bearing |
| 20 | 415129371 | Retaining Ring |
| 21 | 503193894 | Casted Support This part replaces 503192793. |
| 22 | 250001027 | Hex. Flange Screw M6 X 70 This part replaces 250000475. |
| 23 | 503191820 | Wheel Cup M6 |
| 24 | 250100130 | ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 25 | 207662556 | Hex. Flange Screw M6 X 25 This part replaces 250000476. |
| 26 | 503190434 | Labyrinth Seal |
| 27 | 570063600 | Wheel Cap |
| 28 | 503192435 | Rail Pivot RH |
| 29 | 503192434 | Rail Pivot LH |
| 30 | 503192647 | Runner Pivot |
| 31 | 207682544 | Hex. Flange Screw M8 X 25 |
| 32 | 232581414 | Hex. Elastic Stop Nut M8 |
| 33 | 503191608 | Cam Axle |
| 34 | 503191190 | RH Spring Cam |
| 35 | 503191668 | LH Spring Cam |
| 36 | 503191425 | LH BLOCK - Call your local BRP dealership |
| 37 | 503191426 | RH BLOCK - Call your local BRP dealership |
| 38 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 39 | 503189488 | Block Guide |
| 40 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 41 | 503189148 | Washer |
| 42 | 408200700 | Grease Fitting |
| 43 | 503193250 | Spacer This part replaces 503190379. |
| 44 | 503192583 | Tensioner This part replaces 503192814. |
| 45 | 250000480 | Hex Cap Screw DIN.931 |
| 46 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 47 | 250000481 | HEX. SCREW CAP FULL THREAD M10 X 100 - Call your local BRP dealership |
| 48 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 49 | 503190429 | Rear Axle |
| 50 | 503191736 | Rear Spacer, Long |
| 51 | 503190432 | Washer |
| 52 | 503190428 | Rear Wheel Spacer |
| 53 | 503190434 | Labyrinth Seal |
| 55 | 503190396 | Ball Bearing |
| 56 | 415129371 | Retaining Ring |
| 57 | 503190439 | Washer |
| 58 | 250000019 | Hex. Screw With Nylon |
| 59 | 570063600 | Wheel Cap |
| 60 | 503191279 | Lower Shaft |
| 61 | 503189324 | Bushing |
| 62 | 503189564 | Washer |
| 63 | 207205586 | HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 64 | 503194624 | Spring This part replaces 503192282. |
