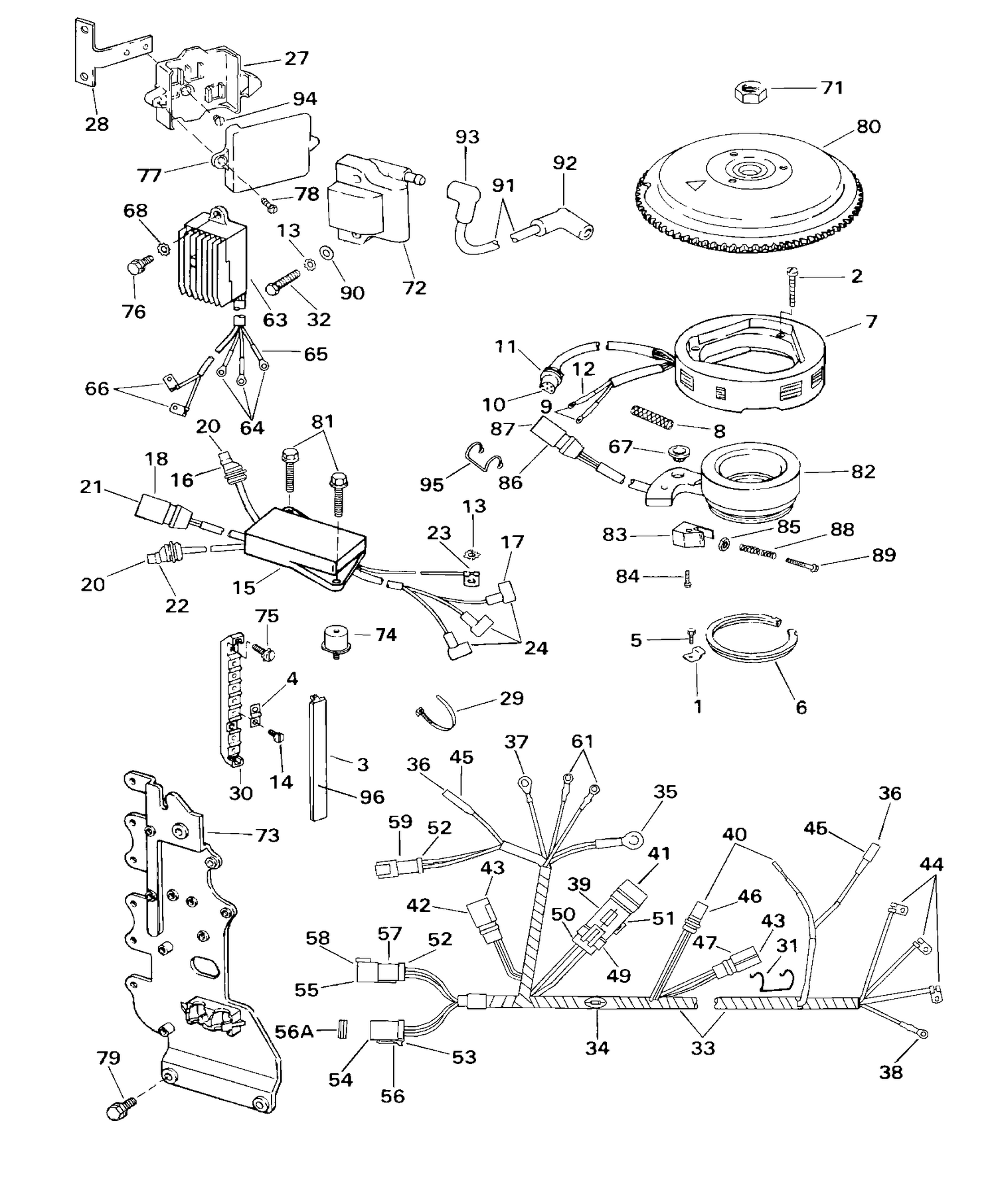

| Ref | Part Number | Description |
|---|
| 1 |
0314495 |
CLAMP, Distributor base |
| 2 |
0325042 |
SCREW, Starter mounting |
| 3 |
0329896 |
CACHE DE BORNIER |
| 4 |
0315004 |
FIL DE LIAISON, bornier |
| 5 |
0306014 |
VIS, ancrage |
| 6 |
0313666 |
RET., Distributor base 1 |
| 7 |
0584560 |
STATOR |
| 14 |
0329182 |
VIS, borne |
| 15 |
5004533 |
Kit This part replaces 0585189. |
| 27 |
0352051 |
BRACKET, Connector This part replaces 0342197. |
| 28 |
0514542 |
BRACKET, Mounting |
| 30 |
0329895 |
BORNIER |
| 31 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 33 |
0586021 |
MOTOR CABLE ASSY. |
| 63 |
0585001 |
REDRESSEUR & FIL |
| 67 |
0395448 |
BALL & SOCKET ASSY |
| 69 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 71 |
0329267 |
NUT, Flywheel |
| 72 |
0582508 |
COIL ASSY |
| 73 |
0514222 |
BRACKET, Electrical |
| 74 |
0332610 |
RUBBER Mount, Powerpack |
| 75 |
0306644 |
VIS, capteur de papillon |
| 77 |
0342265 |
COVER, Bracket |
| 80 |
0584360 |
FLYWHEEL ASSY. |
| 81 |
0122147 |
VIS, connecteur |
| 82 |
0584804 |
TIMER BASE ASSY. |
| 91 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 94 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
| 95 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
