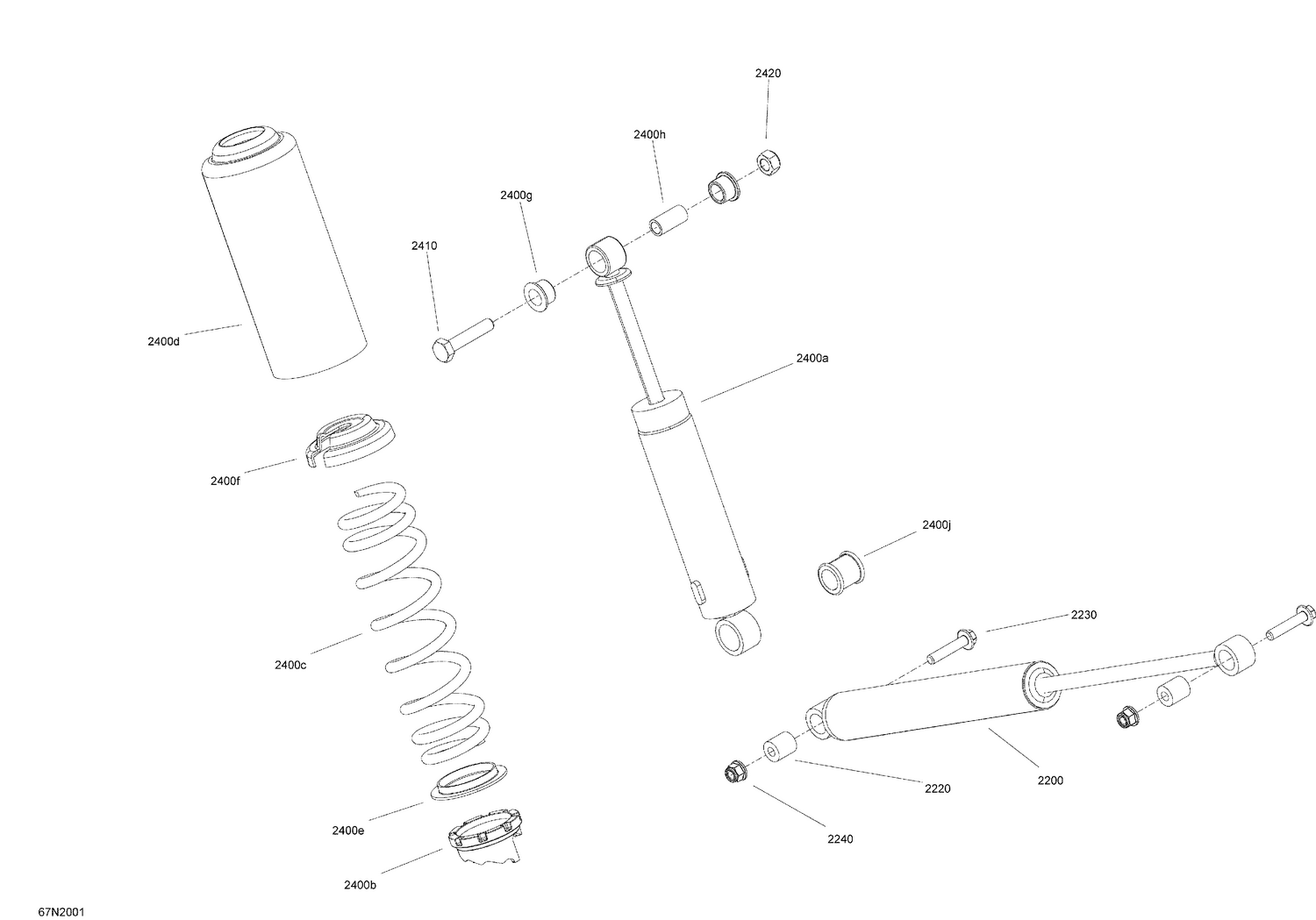

08- Suspension, Rear - Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2200 | 503193520 | Rear Shock |
| 2220 | 414936000 | Bushing |
| 2230 | 207684044 | Hex. Flange Screw M8 X 40 |
| 2240 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2400a | 503192266 | Center Shock |
| 2400b | 505073625 | Adjustment Cam |
| 2400c | 503191880 | Black, Spring 242MM |
| 2400d | 503193663 | Protector |
| 2400e | 503191872 | Spring Guide |
| 2400f | 706200881 | Spring Stopper |
| 2400g | 503189117 | Urethane Bushing |
| 2400h | 503189282 | Bushing |
| 2400j | 503189271 | Bushing |
| 2410 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2420 | 233601416 | Elastic Locking Nut M10 X 1.5 |
