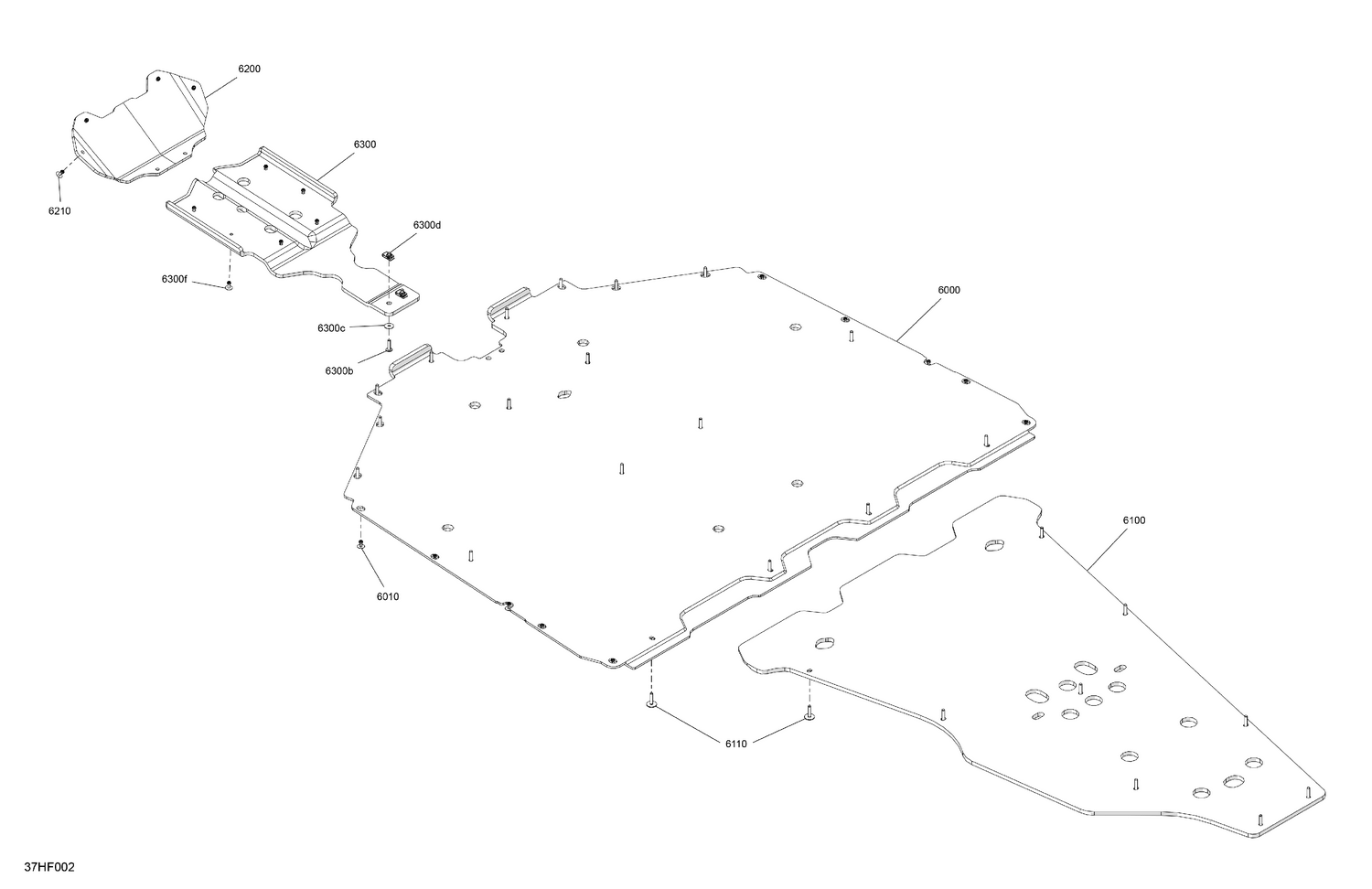

07- Body - Skid Plate
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 6000 | 705019457 | Front Skid Plate |
| 6010 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 6100 | 705019594 | Rear Skid Plate |
| 6110 | 250001348 | Screw Hex Sems Threadlock M6 X 30 |
| 6200 | 705012826 | Front Deflector |
| 6210 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 6300b | 250000807 | Torx Truss Screw M6 X 25 |
| 6300c | 250200040 | Flat Washer |
| 6300d | 250100198 | Panel Nut M6 X 1.0 |
