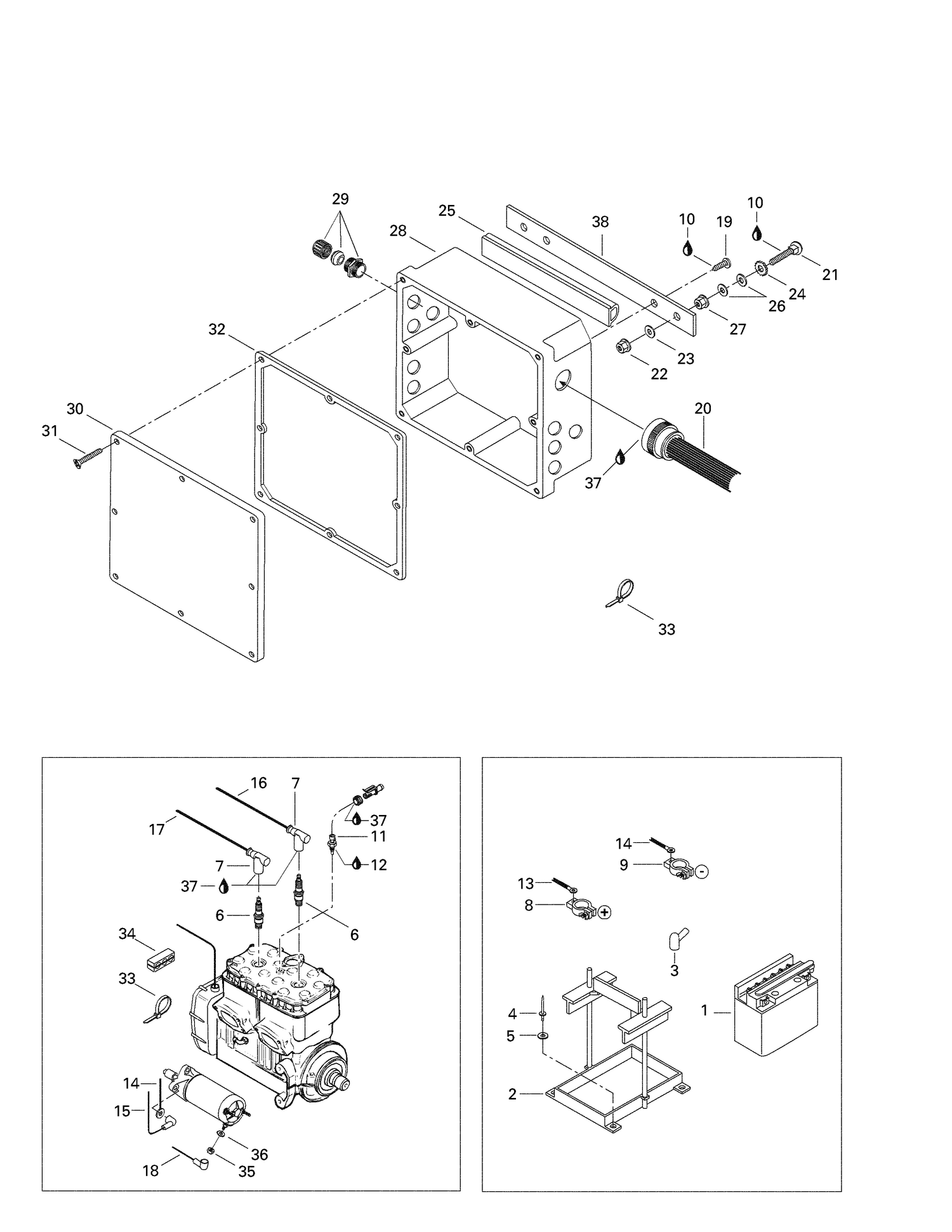

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Battery |
| 2 |
204470118 |
Battery Support |
| 3 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 4 |
293150008 |
Pop Rivet 3/16" |
| 5 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 6 |
219703119 |
NGK Spark Plug BR8ES This part replaces 278000609. |
| 7 |
204470091 |
Spark Plug Cap |
| 8 |
278000679 |
Battery Pole (Positive) |
| 9 |
278000680 |
Battery Pole (Negative) |
| 10 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 11 |
278000965 |
Temperature Sensor |
| 13 |
204470117 |
Cable - Red 72'' |
| 14 |
204470047 |
Ground Cable |
| 15 |
204470004 |
Ground Cable 46'' R.H |
| 16 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership |
| 17 |
278000322 |
Spark Plug Wire 530 (MAG) |
| 18 |
204470003 |
Starter Cable 50'' R.H |
| 19 |
211000053 |
Screw 1/4" |
| 20 |
204470057 |
Harness Ass'y |
| 21 |
204000130 |
Elevator Bolt |
| 22 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 23 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 24 |
213400001 |
WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership |
| 25 |
219704365 |
Was 293200017 Neoprene Seal |
| 26 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 27 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 29 |
278000528 |
Cap & Grommet |
| 30 |
278000625 |
Electrical Box Cover |
| 31 |
211000052 |
Screw 1/4-20 x 5/8 |
| 32 |
293250033 |
Gasket |
| 33 |
293750002 |
Tie Wrap 142 mm |
| 35 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 36 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 204470133 |
LH |
Battery Ground Cable 204470133 |
| 278000532 |
Starter |
Cable 58'' L.H 278000532 |
