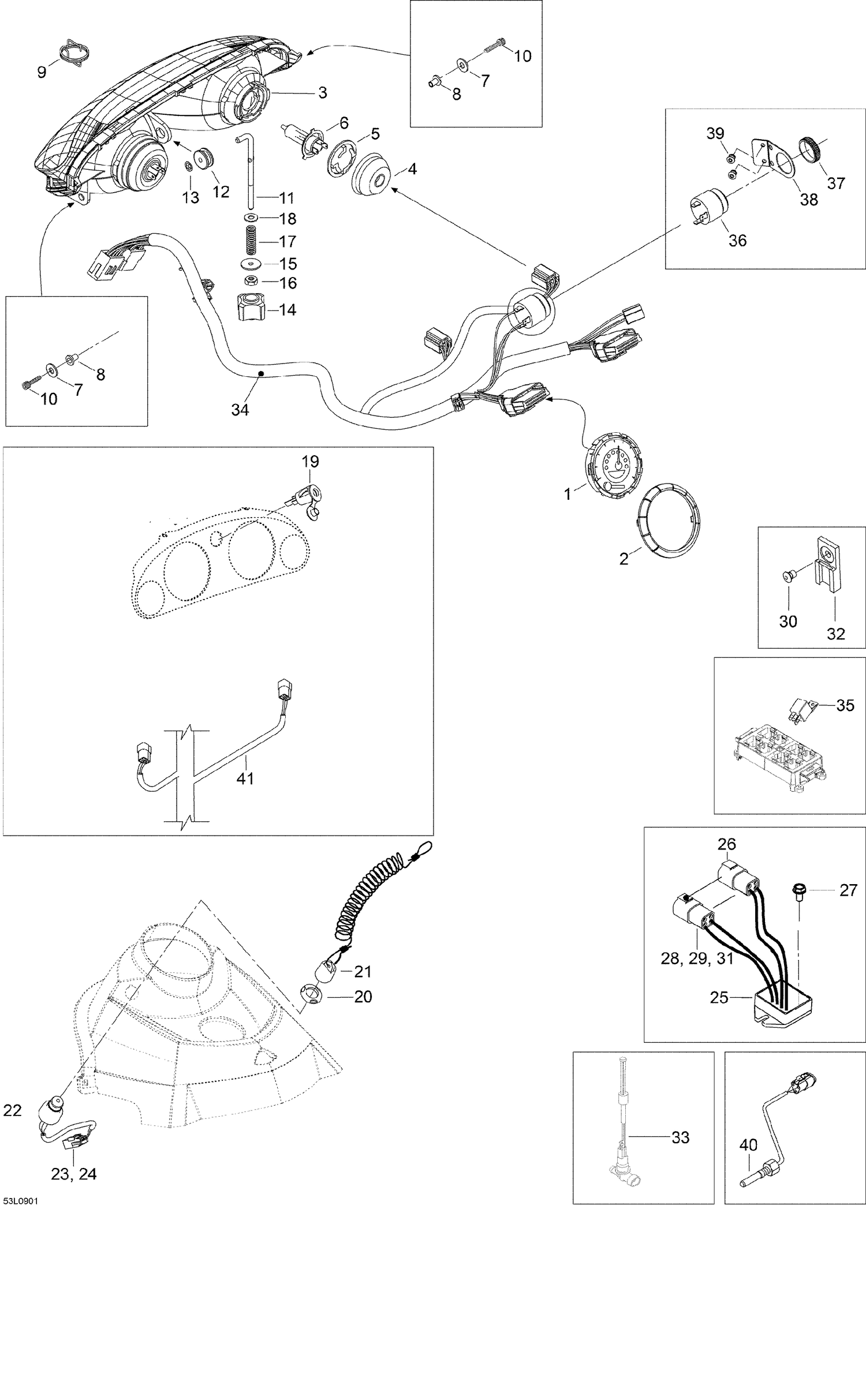

| Ref | Part Number | Description |
|---|
| 1 |
515176477 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 4 |
515175911 |
COVER - Call your local BRP dealership |
| 5 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 6 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 7 |
20008 |
Washer 5,3 mm |
| 8 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 9 |
5447238 |
Spring |
| 10 |
40235 |
Hex. screw M5 x 35 |
| 11 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 12 |
415100800 |
Grommet - Call your local BRP dealership |
| 13 |
732610072 |
Push Nut |
| 14 |
515175548 |
Handle - Call your local BRP dealership |
| 15 |
20038 |
Washer 6mm |
| 16 |
232561434 |
Elastic Stop Nut M6 This part replaces 33010. |
| 17 |
415100600 |
SPRING - Call your local BRP dealership |
| 18 |
20003 |
Washer A6,4 |
| 19 |
605352915 |
Power outlet kit (Revo) |
| 20 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 21 |
515178284 |
DESS This part replaces 515176461. |
| 23 |
515175232 |
Male Terminal |
| 24 |
515175494 |
Male Housing, 3 Circuits |
| 26 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 27 |
40377 |
Hex. screw M6 x 20 |
| 28 |
515175568 |
Male Terminal |
| 29 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 30 |
36005 |
Rivet |
| 31 |
293000052 |
Sealing Cap |
| 32 |
270000141 |
Clip This part replaces 515175917. |
| 33 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 34 |
605354749 |
MAIN HARNESS - Call your local BRP dealership |
| 35 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 36 |
515176035 |
HORN - Call your local BRP dealership |
| 37 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 38 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 39 |
36005 |
Rivet |
| 40 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
