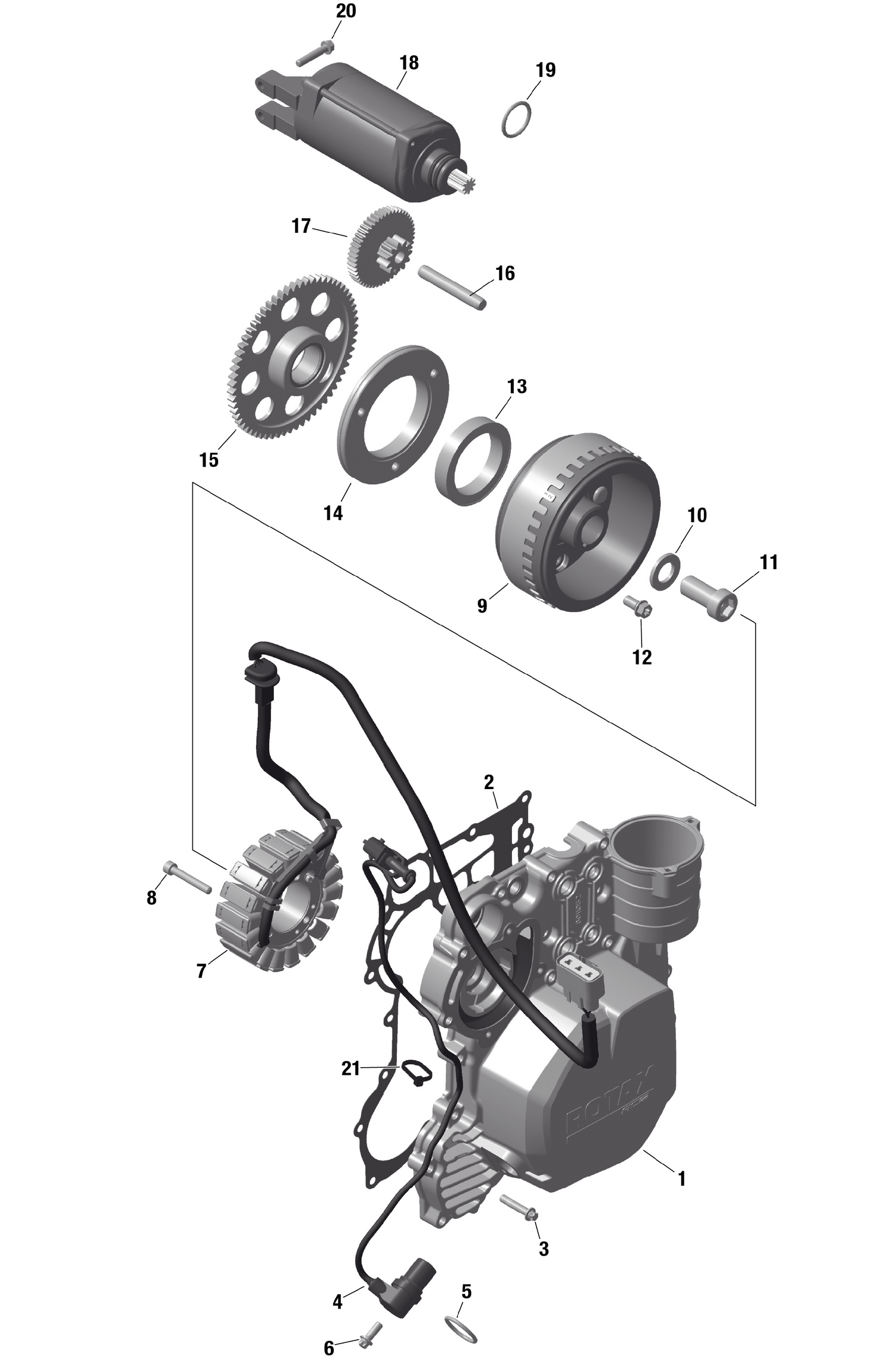

01- ROTAX - Magneto and Electric Starter
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911052 | Cover |
| 3 | 420840663 | Torx Flange Screw M6 X 30 |
| 6 | 420641048 | Torx Flange Screw M6 X 16 |
| 7 | 420296908 | Stator Plate 420W |
| 8 | 420241956 | Allen Screw M6 X 40 |
| 9 | 420685702 | Flywheel Ass'y 420W |
| 10 | 420627270 | Shim |
| 11 | 420241549 | Socket Head Screw M16 X 35 |
| 12 | 420440854 | Torx Flange Screw M8 X 16 |
| 13 | 420659113 | Sprag Clutch |
| 14 | 420659263 | Sparg Clutch Housing |
| 15 | 420434238 | Free Wheel Gear, 64 Teeth |
| 16 | 420229475 | Needle Pin |
| 17 | 420634741 | Starter Double Gear 11/49 T |
| 18 | 420893835 | Starter Ass'y |
| 20 | 420840663 | Torx Flange Screw M6 X 30 |
