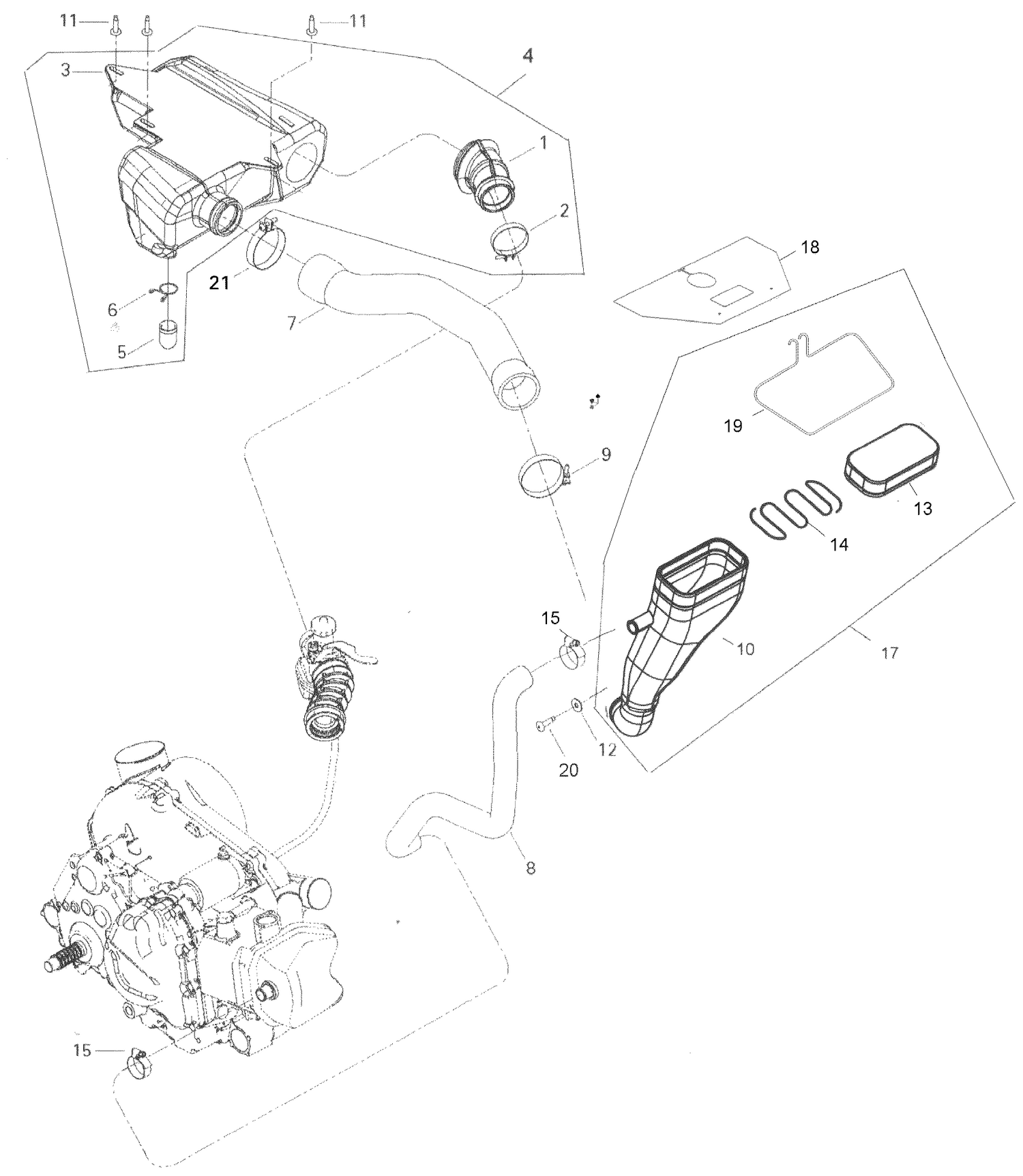

02- Air Intake Silencer
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A17100179000 | Intake Adaptor |
| 2 | 293650151 | GEMI CLAMP - Call your local BRP dealership |
| 3 | A1720617900A | Intake Silencer |
| 4 | Not | Available As Spare Part - Vent Hose Ass'y |
| 5 | A17219179000 | DRAIN TUBE - Call your local BRP dealership |
| 6 | A9451023000 | RETAINER CLIP - Call your local BRP dealership |
| 7 | A17254179000 | VENT HOSE - Call your local BRP dealership |
| 8 | A17257179000 | VENT HOSE - Call your local BRP dealership |
| 9 | A9451455000 | GEMI CLAMP - Call your local BRP dealership |
| 10 | A1726017900A | Vent Hose |
| 11 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 12 | 250200029 | Washer M6 |
| 13 | A17261179000 | FOAM - Call your local BRP dealership |
| 14 | A17262179000 | BRACKET - Call your local BRP dealership |
| 15 | A9451430000 | Gemi Clamp |
| 17 | Not | Available As Spare Part - Vent Hose Ass'y |
| 18 | A80115179000 | RUBBER SEAL - Call your local BRP dealership |
| 19 | A17274179001 | VENT HOSE BRACKET - Call your local BRP dealership |
| 20 | A9200306020 | SCREW-HEX.HD.M6 x 20 - Call your local BRP dealership |
