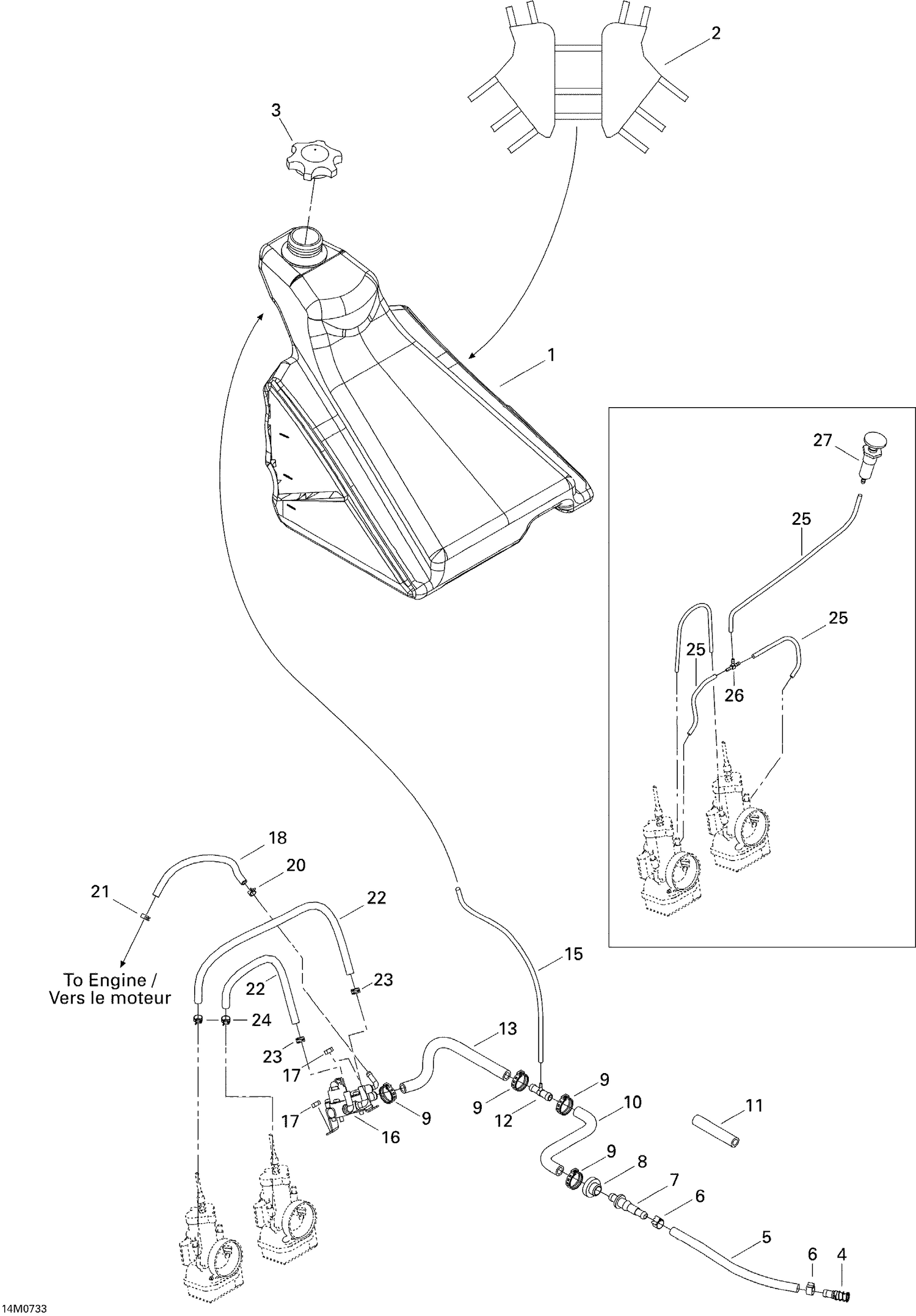

02- Fuel System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033099 | Fuel Tank |
| 2 | 513033075 | TANK COVER, BLACK - Call your local BRP dealership |
| 3 | 513033752 | Fuel Tank Cap This part replaces 513033103. |
| 4 | 414872100 | Fuel Filter Strainer |
| 5 | 415097800 | POLYURETHANE HOSE 7.6MM - Call your local BRP dealership |
| 6 | 513033010 | Norma Spring Clamp |
| 7 | 414872700 | Male Connector |
| 8 | 707800347 | Grommet This part replaces 570273900. |
| 9 | 293650053 | Crimp Clamp |
| 10 | 513033072 | Formed Hose |
| 11 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 12 | 415119300 | T-Fitting |
| 13 | 513033031 | FORMED HOSE - Call your local BRP dealership |
| 15 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 16 | 403901810 | FUEL PUMP - Call your local BRP dealership |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 513033035 | HOSE - Call your local BRP dealership |
| 20 | 414415200 | Spring Clamp |
| 21 | 513033029 | Universal Spring Clamp |
| 22 | 219704410 | Polyurethane Hose 10000Mm Long |
| 23 | 293650042 | Oetiker Clamp |
| 24 | 414554800 | Spring Clamp |
| 25 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 26 | 414222400 | T-Fitting |
