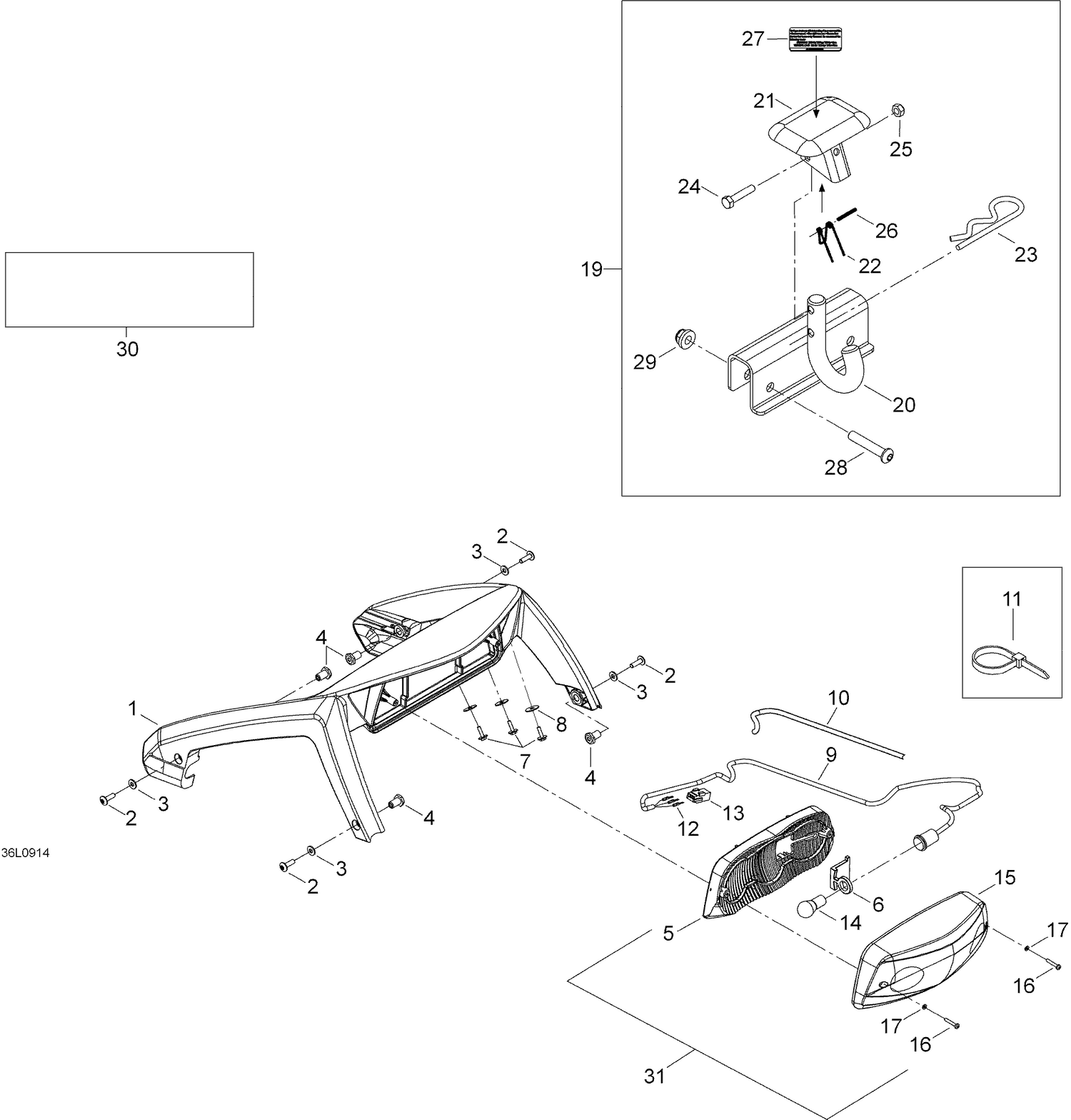

| Ref | Part Number | Description |
|---|
| 1 |
511000425 |
Luggage rack |
| 2 |
250000168 |
SOCKET SCREW M6 X 16 - Call your local BRP dealership |
| 3 |
250200039 |
Flat Washer |
| 4 |
511000398 |
INSERT - Call your local BRP dealership |
| 5 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 6 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 7 |
40847 |
SCREW 4 - Call your local BRP dealership |
| 8 |
20117 |
Washer |
| 9 |
515175852 |
Lampa hållare och kabel set |
| 10 |
605353992 |
Punottu suojasukka |
| 11 |
605627000 |
Tie Rap (Push Mount) 170mm |
| 12 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 13 |
42271 |
Male connector housing (6 circuits) |
| 14 |
520000758 |
Bulp tail lamp |
| 15 |
861509300 |
Heijastin ja lasi, takavalosarja |
| 16 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 17 |
414516400 |
Washer - Call your local BRP dealership |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 19 |
Not |
Available As Spare Part - Hitch ass'y |
| 21 |
511000514 |
PAWL - Call your local BRP dealership |
| 22 |
517152800 |
SPRING - Call your local BRP dealership |
| 23 |
114045200 |
Hair Pin |
| 24 |
207063544 |
Hex. Flange Screw M6 X 16 |
| 25 |
232561414 |
Elastic Stop Nut M6 |
| 26 |
732804000 |
SPRING PIN M3 X 24 - Call your local BRP dealership |
| 27 |
516003037 |
WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership |
| 28 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 29 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 30 |
605255828 |
Tunnel cover, center |
