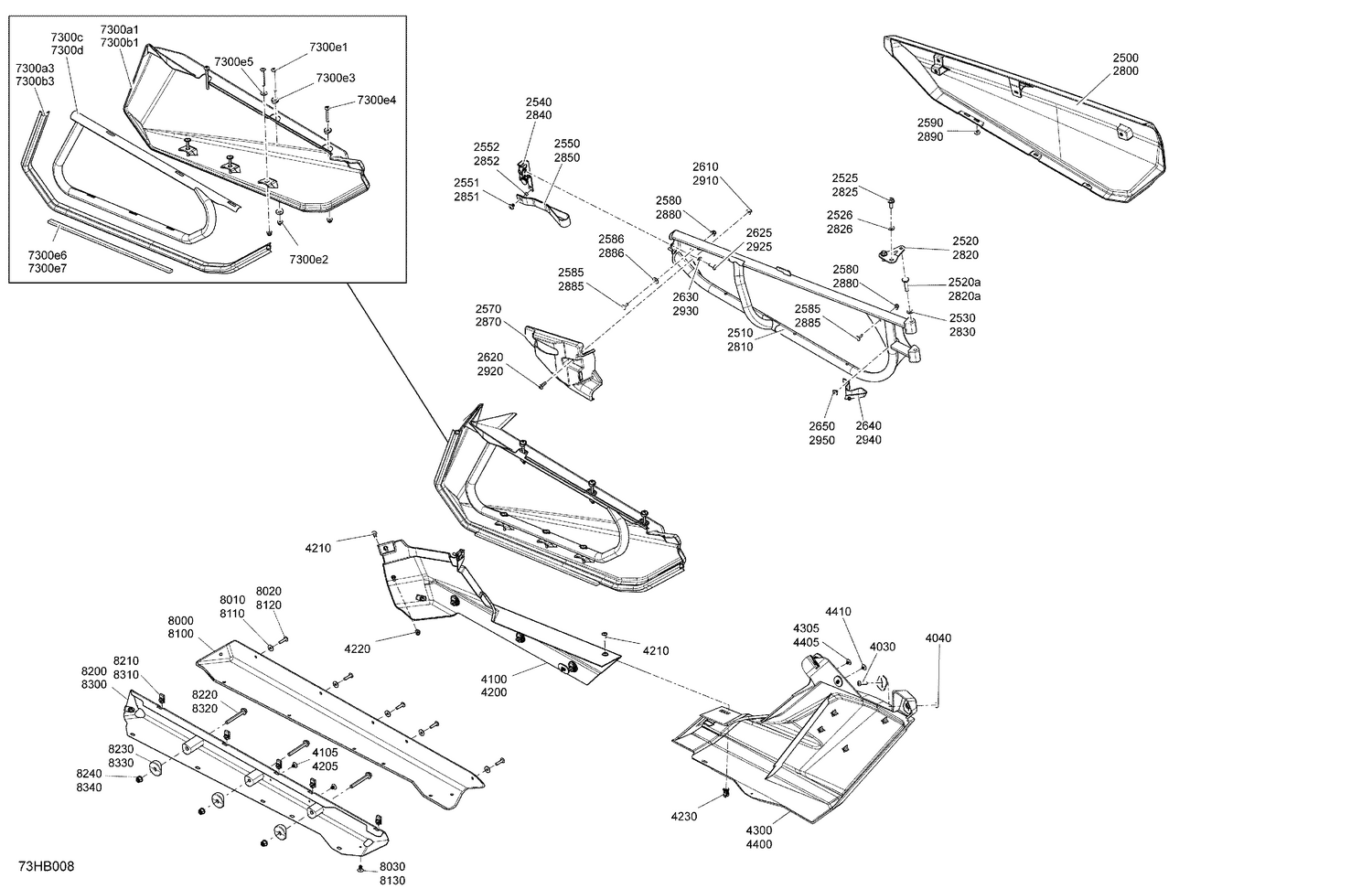

| Ref | Part Number | Description |
|---|
| 2500 |
705015331 |
Chalk, LH Front Door Panel |
| 2510 |
705016020 |
Can-Am Red, LH Front Door |
| 2520a |
250000913 |
Weld Pin 8mm X 40mm |
| 2525 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2526 |
234081430 |
Flat Washer M8 |
| 2530 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2540 |
705013095 |
LH Latch |
| 2550 |
293850135 |
Belt |
| 2551 |
293150103 |
Pop Rivet 3/16" |
| 2552 |
293900104 |
Bushing |
| 2570 |
705013535 |
LH Latch Cover |
| 2580 |
250100198 |
Panel Nut M6 X 1.0 |
| 2585 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2586 |
234062670 |
Stainless Steel Flat Washer |
| 2590 |
293150103 |
Pop Rivet 3/16" |
| 2610 |
250100198 |
Panel Nut M6 X 1.0 |
| 2620 |
250000722 |
Torx Screw M6 X 20 |
| 2625 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2630 |
224061121 |
Flat Washer |
| 2640 |
293850129 |
Door Belt |
| 2650 |
293150103 |
Pop Rivet 3/16" |
| 2800 |
705015332 |
Chalk, RH Front Door Panel |
| 2810 |
705016021 |
Can-Am Red, RH Front Door |
| 2820a |
250000913 |
Weld Pin 8mm X 40mm |
| 2825 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2826 |
234081430 |
Flat Washer M8 |
| 2830 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2840 |
705013096 |
RH Latch |
| 2850 |
293850135 |
Belt |
| 2851 |
293150103 |
Pop Rivet 3/16" |
| 2852 |
293900104 |
Bushing |
| 2870 |
705013536 |
RH Latch Cover |
| 2880 |
250100198 |
Panel Nut M6 X 1.0 |
| 2885 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2886 |
234062670 |
Stainless Steel Flat Washer |
| 2890 |
293150103 |
Pop Rivet 3/16" |
| 2910 |
250100198 |
Panel Nut M6 X 1.0 |
| 2920 |
250000722 |
Torx Screw M6 X 20 |
| 2925 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2930 |
224061121 |
Flat Washer |
| 2940 |
293850129 |
Door Belt |
| 2950 |
293150103 |
Pop Rivet 3/16" |
| 4030 |
250000807 |
Torx Truss Screw M6 X 25 |
| 4040 |
250100198 |
Panel Nut M6 X 1.0 |
| 4100 |
705012768 |
LH Central Lateral Panel |
| 4105 |
293150103 |
Pop Rivet 3/16" |
| 4200 |
705017549 |
Deep Black, RH Lower Body Panel This part replaces 705012769. |
| 4205 |
293150103 |
Pop Rivet 3/16" |
| 4210 |
250000722 |
Torx Screw M6 X 20 |
| 4220 |
250100198 |
Panel Nut M6 X 1.0 |
| 4230 |
705016606 |
Insert |
| 4300 |
705010676 |
LH Rear Lateral Panel |
| 4305 |
293150103 |
Pop Rivet 3/16" |
| 4400 |
705010677 |
Deep Black, RH Rear Lateral Panel |
| 4405 |
293150103 |
Pop Rivet 3/16" |
| 4410 |
293150104 |
Pop Rivet 3/16" |
| 7300a1 |
705010271 |
LH Door Panels |
| 7300a3 |
705012018 |
Door Seal |
| 7300b1 |
705010272 |
RH Door Panels |
| 7300b3 |
705012018 |
Door Seal |
| 7300c |
705012750 |
Black, LH Door Frame |
| 7300d |
705012751 |
Black, RH Door Frame |
| 7300e1 |
250000902 |
Torx-Truss M/S M6 X 80 |
| 7300e2 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 7300e3 |
705202223 |
Offset Washer |
| 7300e4 |
250000749 |
Torx Truss Screw M6 X 50 |
| 7300e5 |
234062670 |
Stainless Steel Flat Washer |
| 7300e6 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 7300e7 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 8000 |
705015325 |
Chalk, LH Body Panel Guard |
| 8010 |
250200164 |
Flat washer M6 |
| 8020 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8030 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 8100 |
705015326 |
Chalk, RH Body Panel Guard |
| 8110 |
250200164 |
Flat washer M6 |
| 8120 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8130 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 8200 |
705012774 |
LH Lateral Structure |
| 8210 |
250100198 |
Panel Nut M6 X 1.0 |
| 8220 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 8230 |
705205462 |
Saddle Washer |
| 8240 |
233281464 |
Elastic Flange Nut M8 |
| 8300 |
705012775 |
RH Lateral Structure |
| 8310 |
250100198 |
Panel Nut M6 X 1.0 |
| 8320 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 8330 |
705205462 |
Saddle Washer |
