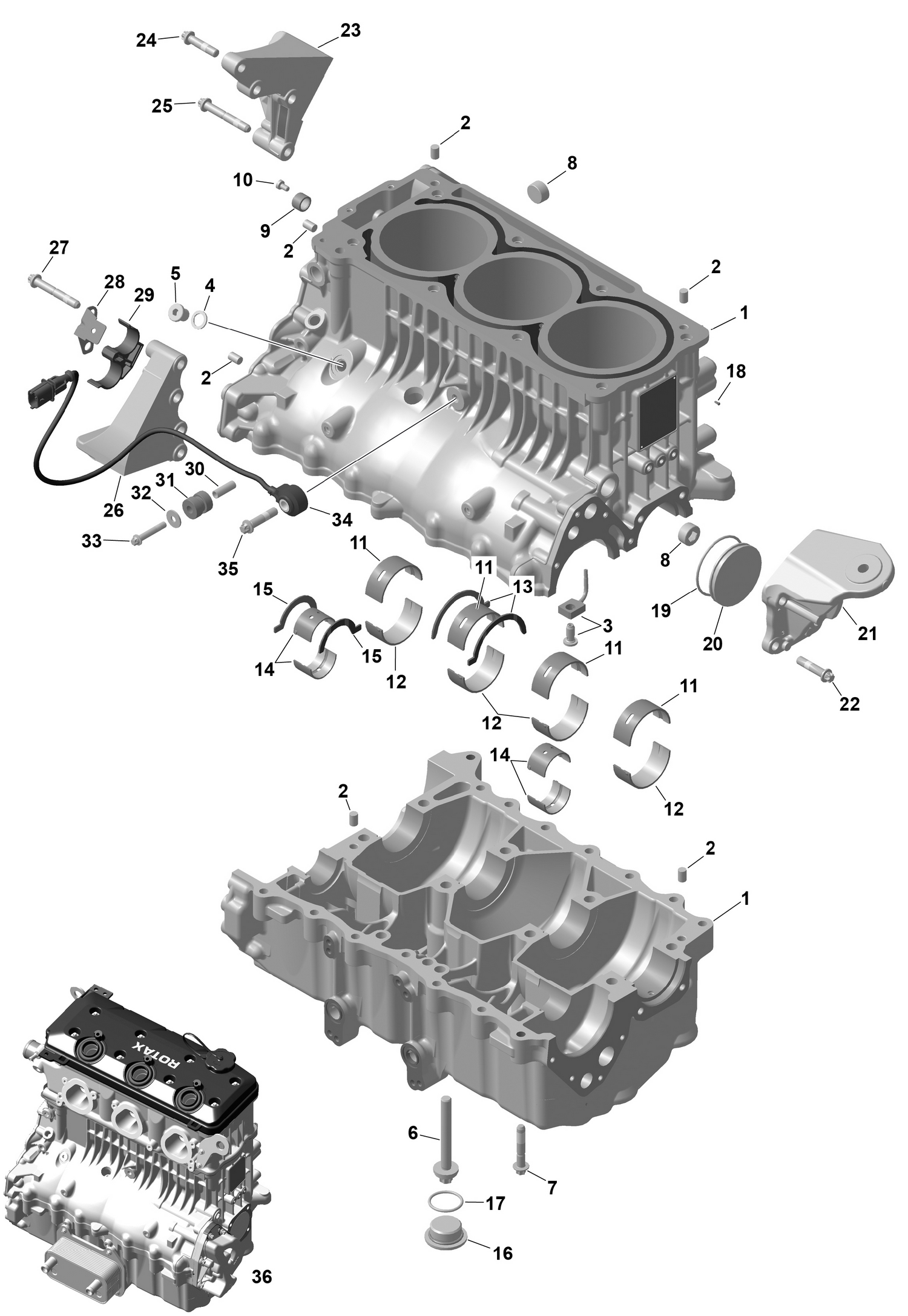

01- ROTAX - Crankcase — Parts Catalog

Ref	Part Number	Description
2	420632010	Center Pin 8 X 12
3	420956772	Oil Spray Nozzle
4	420250016	Aluminum Sealing Ring
5	420841923	Plug Screw M12
6	420641120	Torx Flange Screw M10 X 82
7	420641208	Hex. Flange Screw M8 X 45
8	420641317	Plug Screw M20 X 1.5
9	420232482	Needle Bushing
10	420240692	Allen Screw M5 X 10
11	420933456	Plain Half-Bearing
12	420933466	Plain Half-Bearing
13	420933475	Half-Ring
14	420933442	Plain Bearing Half
15	420933470	Half-Ring
18	420249073	Grooved Pin
19	420430411	O-Ring 57-3 Cylinder Bloc Plug Cover This part replaces 420430405.
20	420660110	Plug Cover
21	420811794	Front Engine Bracket
22	420641188	Torx Flange Screw M8 X 35
23	420811788	Engine Bracket PTO, Exhaust
24	420641188	Torx Flange Screw M8 X 35
25	420641213	Torx Flange Screw M8 X 55
26	420811784	Engine Bracket PTO, Exhaust
27	420641213	Torx Flange Screw M8 X 55
28	420851740	Retaining Plate
29	420660293	HOSE BRACKET This part replaces 420660290.
30	420847971	Spacer
31	420660090	Rubber Bracket
32	420827968	Flat Washer M6
33	420641258	Torx Flange Screw M6 X 35
34	420664031	Noise Sensor
35	420641188	Torx Flange Screw M8 X 35
