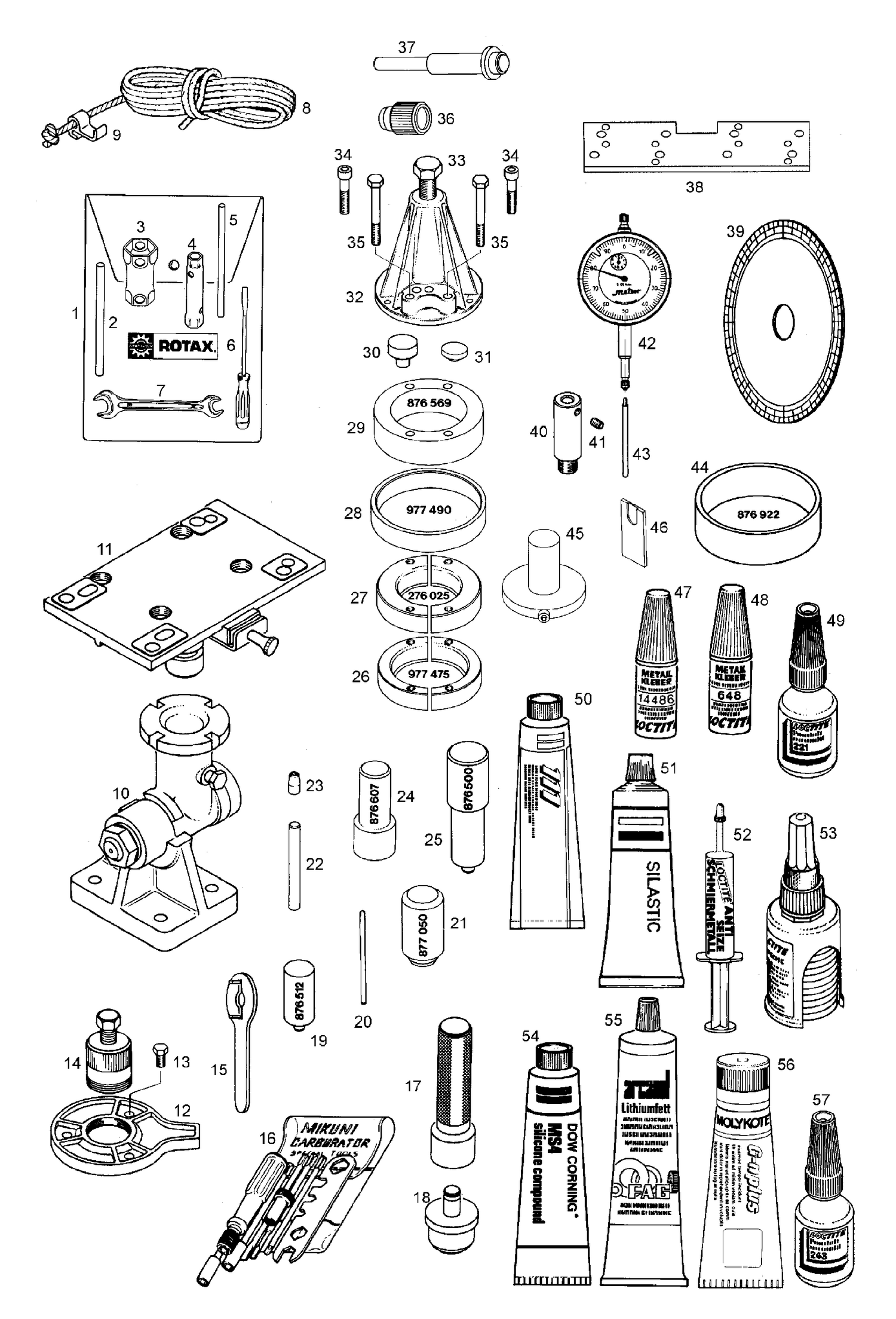

11- Tools
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420876197 | Tool bag 230x160 |
| 2 | 420977420 | Bolt 8x130-10 |
| 3 | 420876210 | Socket wrench 21/26 |
| 4 | 420876227 | Socket wrench 10/13 |
| 5 | 420977425 | Bolt 6x130 |
| 6 | 420876200 | DRIVER-SCREW - Call your local BRP dealership |
| 7 | 420276065 | WRENCH-FORK 10 - Call your local BRP dealership |
| 8 | 420852091 | Starter rope 5,5x211 |
| 9 | 529000060 | Starter Grip This part replaces 420852340. |
| 11 | 420876746 | Mounting plate |
| 12 | 420876081 | Cle De Retenue *Wrench-Holder This part replaces 420876080. |
| 13 | 207182044 | Hex. Cap Screw M8 x 20 This part replaces 420940591. |
| 14 | 529035547 | Extract.Magnet.*Magneto-Puller This part replaces 420876065. |
| 15 | 420277905 | WRENCH-HOLDER - Call your local BRP dealership |
| 16 | 420876960 | Special tool kit |
| 17 | 420877650 | Insertion jig handle |
| 18 | 420876514 | Insertion jig |
| 19 | 420876512 | Insertion jig |
| 20 | 420876640 | Crankshaft bolt |
| 21 | 420877050 | Insertion jig |
| 22 | 420876612 | JIG-EXTRUSION - Call your local BRP dealership |
| 23 | 420876980 | Guide sleeve |
| 24 | 420876607 | Insertion jig |
| 25 | 420876500 | Insertion jig |
| 26 | 420977475 | HALF-RING PULL - Call your local BRP dealership |
| 27 | 420276025 | HALF-RING PULL - Call your local BRP dealership |
| 28 | 420977490 | RING-PULLER - Call your local BRP dealership |
| 29 | 420876569 | RING-DISTANCE - Call your local BRP dealership |
| 30 | 420876553 | PROTECT-CRANK - Call your local BRP dealership This part replaces 420876552. |
| 31 | 420876557 | Protection mushroo |
| 33 | 420940755 | SCREW-HEX. - Call your local BRP dealership |
| 34 | 420840682 | Allen Screw M8 X 40 This part replaces 420840681. |
| 35 | 420841201 | Hex. screw M8x70 |
| 36 | 420877020 | Circlip installation |
| 37 | 420877010 | Circlip installation |
| 38 | 420876904 | TOOL-ALIGN. - Call your local BRP dealership |
| 39 | 420277150 | Degree disk |
| 40 | 420876940 | Gauge adapter |
| 41 | 420841771 | SET SCREW M6 X 8 - Call your local BRP dealership |
| 42 | 420876950 | Precision dial gauge |
| 43 | 420876945 | Gauge pin |
| 44 | 420876922 | Centering ring |
| 45 | 420877555 | Insertion-jig assy |
| 46 | 420877530 | Pickup adjusting d. |
| 47 | 420897341 | Loctite 14486 |
| 48 | 219703000 | Sealant Loctite 648 This part replaces 420899788. |
| 49 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 50 | 420897161 | Molykote 111 |
| 51 | 293800086 | Silicone Sealant 5150, 300 ml This part replaces 420297386. |
| 52 | 420297431 | Loctite anti-seize |
| 53 | 420899784 | Loct 574/orange/50 |
| 54 | 420897061 | Silicon compound |
| 55 | 420897330 | Lithium-grease |
| 56 | 420297433 | Molykote G-N |
