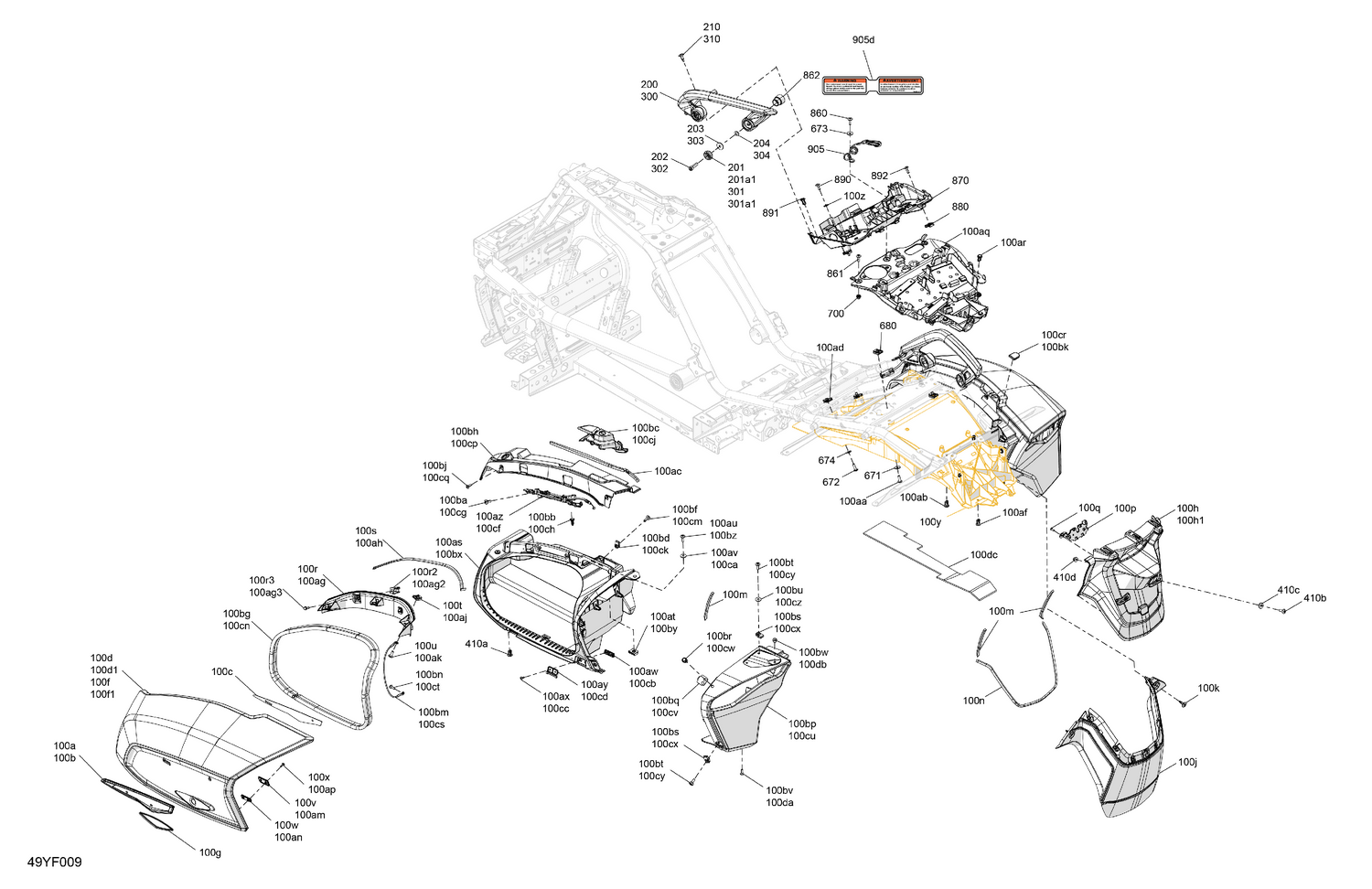

| Ref | Part Number | Description |
|---|
| 100a |
708301839 |
LH Moulding |
| 100aa |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 100ab |
293150230 |
Tuflok Plastic Rivet |
| 100ac |
293250385 |
Neoprene Seal, 150 MM |
| 100ad |
250100208 |
Panel Nut M6 X 1.0 |
| 100af |
293150230 |
Tuflok Plastic Rivet |
| 100ag2 |
708303255 |
Striker Cover |
| 100ag3 |
210251650 |
Hex. Forming Screw M5 X 16 |
| 100ah |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 100aj |
250100208 |
Panel Nut M6 X 1.0 |
| 100ak |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 100am |
708302044 |
Female Hinge |
| 100an |
708302046 |
Retaining Plate |
| 100ap |
250001131 |
Torx Truss PT K40 x 12 |
| 100aq |
708305005 |
Electronic Component Support |
| 100ar |
293150230 |
Tuflok Plastic Rivet |
| 100as |
708302404 |
LH Cargo |
| 100at |
250100208 |
Panel Nut M6 X 1.0 |
| 100au |
250000722 |
Torx Screw M6 X 20 |
| 100av |
234062670 |
Stainless Steel Flat Washer |
| 100aw |
708302046 |
Retaining Plate |
| 100ax |
250001131 |
Torx Truss PT K40 x 12 |
| 100ay |
708302045 |
Male Hinge |
| 100az |
708301794 |
LH Latch Assembly |
| 100b |
708301840 |
RH Moulding |
| 100ba |
250000722 |
Torx Screw M6 X 20 |
| 100bb |
710002033 |
Connector Holder |
| 100bc |
708301222 |
LH Control |
| 100bd |
250100198 |
Panel Nut M6 X 1.0 |
| 100bf |
250000722 |
Torx Screw M6 X 20 |
| 100bg |
219704540 |
Trim 3000Mm Long |
| 100bh |
708302401 |
LH Cargo Fairing |
| 100bj |
250000720 |
Torx Screw K50 X 16 |
| 100bk |
708301805 |
Antena Cap |
| 100bm |
708300385 |
Retainer Cable |
| 100bn |
250000720 |
Torx Screw K50 X 16 |
| 100bp |
708302283 |
LH Light Support |
| 100bq |
708302284 |
Brace |
| 100br |
293150230 |
Tuflok Plastic Rivet |
| 100bs |
250100198 |
Panel Nut M6 X 1.0 |
| 100bt |
250000722 |
Torx Screw M6 X 20 |
| 100bu |
234062670 |
Stainless Steel Flat Washer |
| 100bv |
250000720 |
Torx Screw K50 X 16 |
| 100bw |
293830005 |
Rubber Bumper |
| 100bx |
708302405 |
RH Cargo |
| 100by |
250100208 |
Panel Nut M6 X 1.0 |
| 100bz |
250000722 |
Torx Screw M6 X 20 |
| 100c |
704905469 |
Trim Box Double Face Tape |
| 100ca |
234062670 |
Stainless Steel Flat Washer |
| 100cb |
708302046 |
Retaining Plate |
| 100cc |
250001131 |
Torx Truss PT K40 x 12 |
| 100cd |
708302045 |
Male Hinge |
| 100cf |
708301795 |
RH Latch Assembly |
| 100cg |
250000722 |
Torx Screw M6 X 20 |
| 100ch |
710002033 |
Connector Holder |
| 100cj |
708301697 |
RH Control |
| 100ck |
250100198 |
Panel Nut M6 X 1.0 |
| 100cm |
250000722 |
Torx Screw M6 X 20 |
| 100cn |
219704540 |
Trim 3000Mm Long |
| 100cp |
708302402 |
RH Cargo Fairing |
| 100cq |
250000720 |
Torx Screw K50 X 16 |
| 100cr |
708301805 |
Antena Cap |
| 100cs |
708300385 |
Retainer Cable |
| 100ct |
250000720 |
Torx Screw K50 X 16 |
| 100cu |
708302285 |
RH Light Support |
| 100cv |
708302284 |
Brace |
| 100cw |
293150230 |
Tuflok Plastic Rivet |
| 100cx |
250100198 |
Panel Nut M6 X 1.0 |
| 100cy |
250000722 |
Torx Screw M6 X 20 |
| 100cz |
234062670 |
Stainless Steel Flat Washer |
| 100d1 |
708301214 |
Bare, LH Trunk Cover |
| 100da |
250000720 |
Torx Screw K50 X 16 |
| 100db |
293830005 |
Rubber Bumper |
| 100dc |
705016875 |
Heat Shield |
| 100f1 |
708301215 |
Bare, RH Trunk Cover |
| 100g |
705003412 |
Red, Lateral Reflector |
| 100h |
708304562 |
Rear Fender |
| 100j |
708301747 |
Rear Fender Extention |
| 100k |
414745900 |
Tuflock Phillips Plastic Screw |
| 100m |
293250385 |
Neoprene Seal, 150 MM |
| 100n |
219704373 |
Seal 1000Mm Long |
| 100p |
708304953 |
Rear Camera Support |
| 100q |
250000577 |
Torx Truss Screw K40 X 12 |
| 100r2 |
708303255 |
Striker Cover |
| 100r3 |
210251650 |
Hex. Forming Screw M5 X 16 |
| 100s |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 100t |
250100208 |
Panel Nut M6 X 1.0 |
| 100u |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 100v |
708302044 |
Female Hinge |
| 100w |
708302046 |
Retaining Plate |
| 100x |
250001131 |
Torx Truss PT K40 x 12 |
| 100y |
708304965 |
Wheel Arch Protector |
| 100z |
234062670 |
Stainless Steel Flat Washer |
| 200 |
708304250 |
LH Rear Heated Holding Handle |
| 201a1 |
XXX |
Not Available As Spare Parts |
| 202 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 203 |
234082410 |
Flat Washer 8 mm |
| 204 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 210 |
414745900 |
Tuflock Phillips Plastic Screw |
| 300 |
708304251 |
RH Rear Heated Holding Handle |
| 301a1 |
XXX |
Not Available As Spare Parts |
| 302 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 303 |
234082410 |
Flat Washer 8 mm |
| 304 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 310 |
414745900 |
Tuflock Phillips Plastic Screw |
| 410a |
293150230 |
Tuflok Plastic Rivet |
| 410b |
250000350 |
Torx Truss Screw M6 X 20 |
| 410c |
234062600 |
Flat Washer M6, Stainless |
| 671 |
250200039 |
Flat Washer |
| 672 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 673 |
234062670 |
Stainless Steel Flat Washer |
| 674 |
234062670 |
Stainless Steel Flat Washer |
| 680 |
250100208 |
Panel Nut M6 X 1.0 |
| 700 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 860 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 861 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 862 |
708303508 |
Anchorage Socket |
| 870 |
708301698 |
Cargo Rear Support |
| 880 |
250100208 |
Panel Nut M6 X 1.0 |
| 890 |
250000717 |
Torx Head Screw M6 X 16 |
| 891 |
293150230 |
Tuflok Plastic Rivet |
| 892 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 905d |
704905127 |
Cord Decal |
