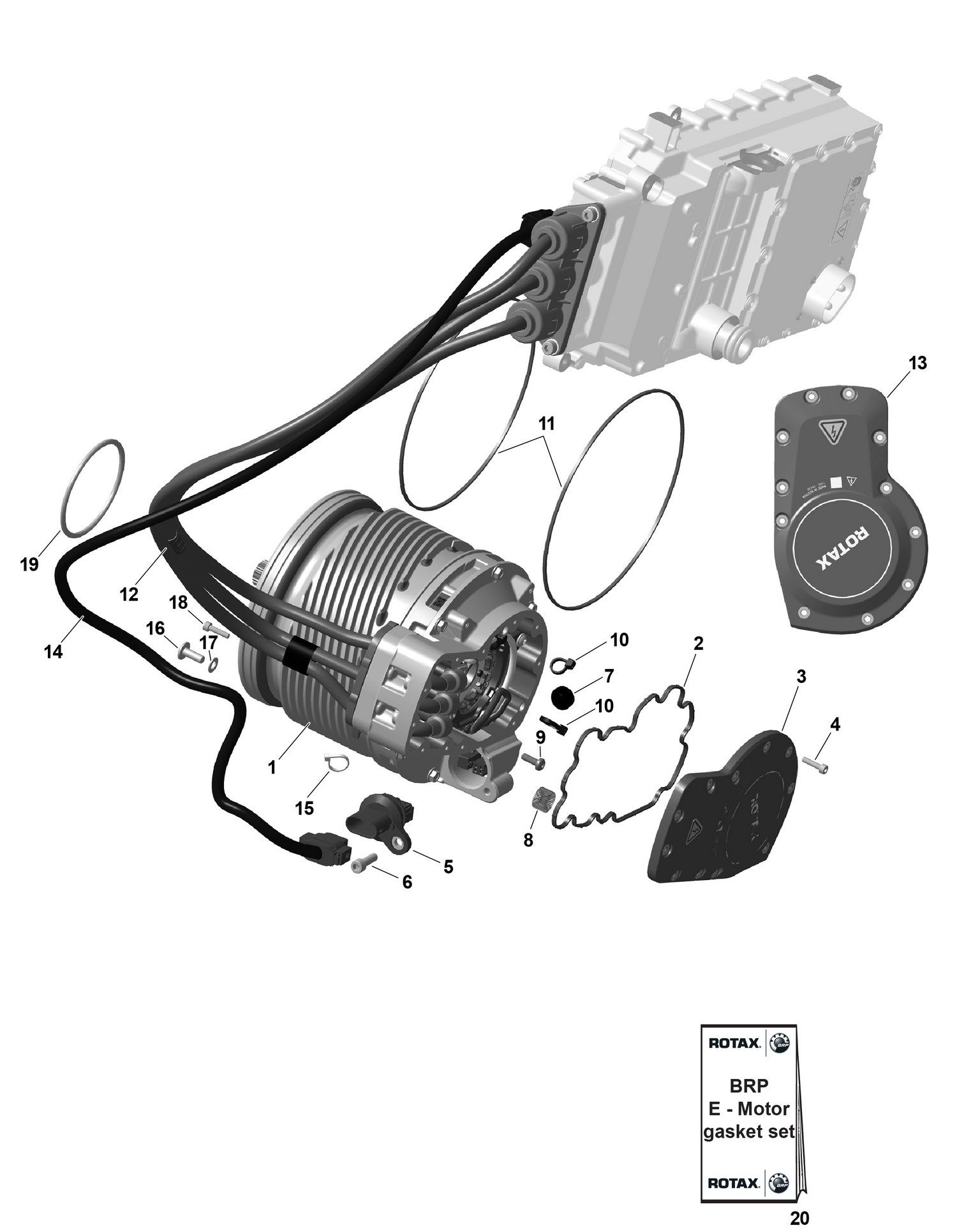

01- ROTAX - E-Motor
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420651192 | Gasket |
| 4 | 420440303 | Allen Screw ISO 4762 M4x16MK8.8 |
| 5 | 420264552 | Multiple Connector |
| 6 | 420241935 | Allen Screw M6x20 |
| 7 | 420572796 | Vent Plug |
| 8 | 420629280 | Shield Connection |
| 9 | 420440281 | Flange Screw |
| 10 | 420866714 | Tie Rap 142x3,2 MM |
| 11 | 420629117 | O-Ring |
| 12 | 420573217 | Power Harness |
| 13 | 420201607 | Motor Cover |
| 14 | 420898385 | Communication Cable |
| 15 | 420866710 | Tie-Wrap 142x2.5 mm |
| 16 | 250000717 | Torx Head Screw M6 X 16 |
| 17 | 250200185 | Copper Washer |
| 18 | 420440303 | Allen Screw ISO 4762 M4x16MK8.8 |
| 19 | 293300278 | O-Ring |
