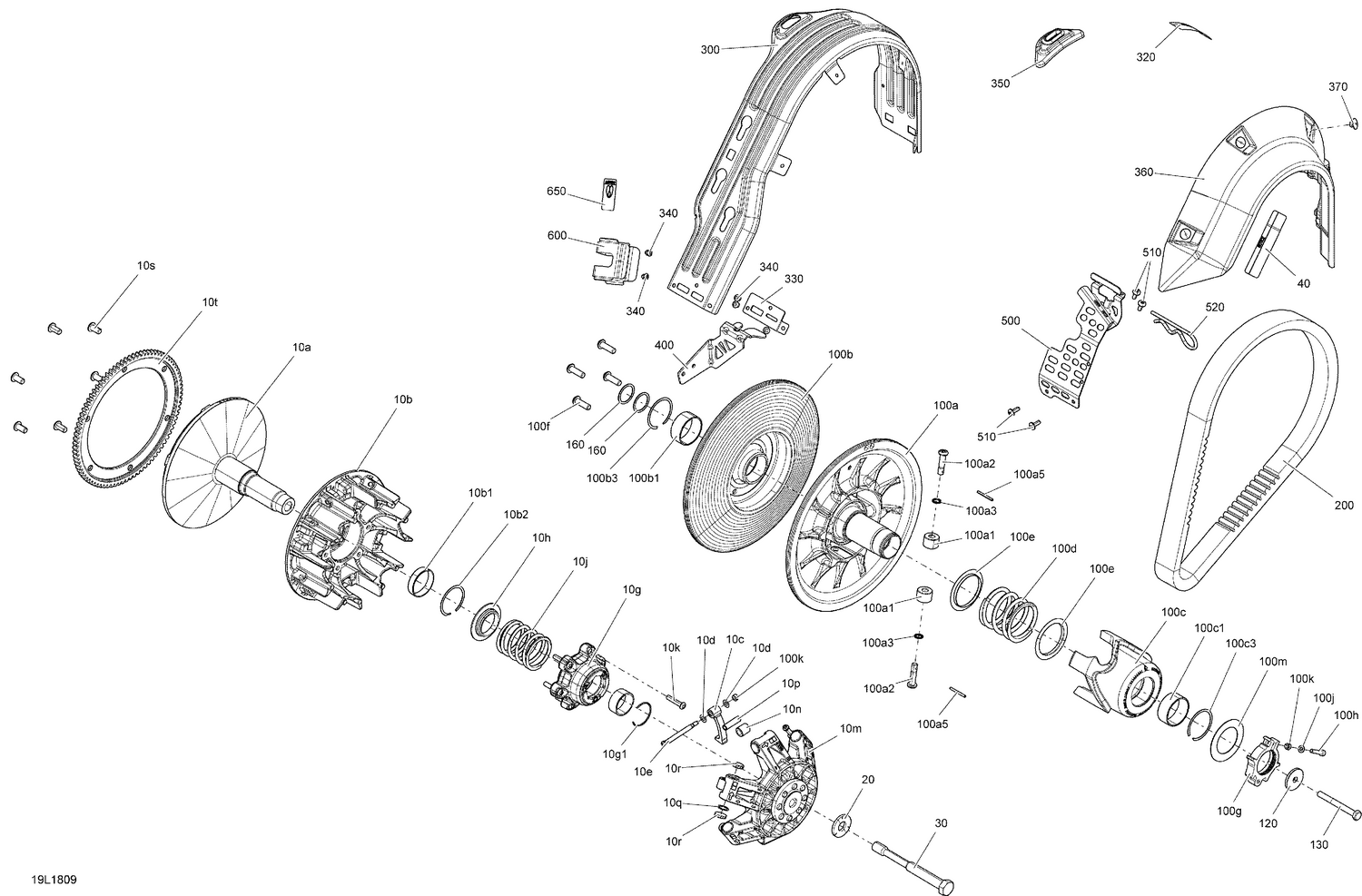

05- Pulley Tundra - 550F
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224097 | Fixed Flange Ass'y This part replaces 417224097. |
| 10b1 | 417222758 | Bushing |
| 10b2 | 293370037 | Circlip |
| 10c | 417223604 | Ramp 700 Ass'y This part replaces 417223557. |
| 10d | 417223255 | Thrust Washer |
| 10e | 417223694 | Ramp Axle |
| 10f | 232551414 | Elastic Stop Nut M5 |
| 10g1 | 293370065 | Circlip |
| 10h | 417223752 | Seat Spring |
| 10j | 417223748 | Spring Clutch |
| 10k | 250000580 | Torx Screw M6 X 30 |
| 10m | 417223865 | Governor Cup Ass'y |
| 10n | 417223767 | Roller |
| 10p | 417223257 | Roller Axle |
| 10q | 293300185 | O-Ring |
| 10r | 417223919 | Slider Shoe |
| 10s | 250000706 | Torx Button Head Screw M8 X 16 |
| 10t | 417223476 | Crown Gear Launch |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Pulley Drive Bolt |
| 40 | 516005503 | Decal English |
| 100a1 | 417127016 | Pulley Roller |
| 100a2 | 417127294 | Pivot Stud |
| 100a3 | 250200009 | Lock Washer 8 mm |
| 100b1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b2 | 293370049 | Circlip |
| 100c1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100c3 | 293370049 | Circlip |
| 100d | 417127061 | Spring |
| 100e | 417127116 | Swivel Abutment |
| 100g | 415129604 | Calibration Ass'y |
| 100h | 205052544 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 120 | 207287544 | Hex. Cap Screw M8 X 75 |
| 160 | 417300265 | Spacer |
| 200 | 414860700 | Drive Belt |
| 300 | 417300382 | Belt Guard |
| 320 | 516006900 | Security Label, Belt Guard |
| 330 | 417300380 | Reinforcement |
| 340 | 390909200 | Avex Rivet |
| 350 | 417300381 | Guide |
| 360 | 417300356 | Side Protector |
| 370 | 293150103 | Pop Rivet 3/16" |
| 400 | 417300363 | Belt Guard Bracket |
| 500 | 518325626 | Brake Hose Cover |
| 520 | 114045200 | Hair Pin |
| 600 | 517281905 | Bracket |
