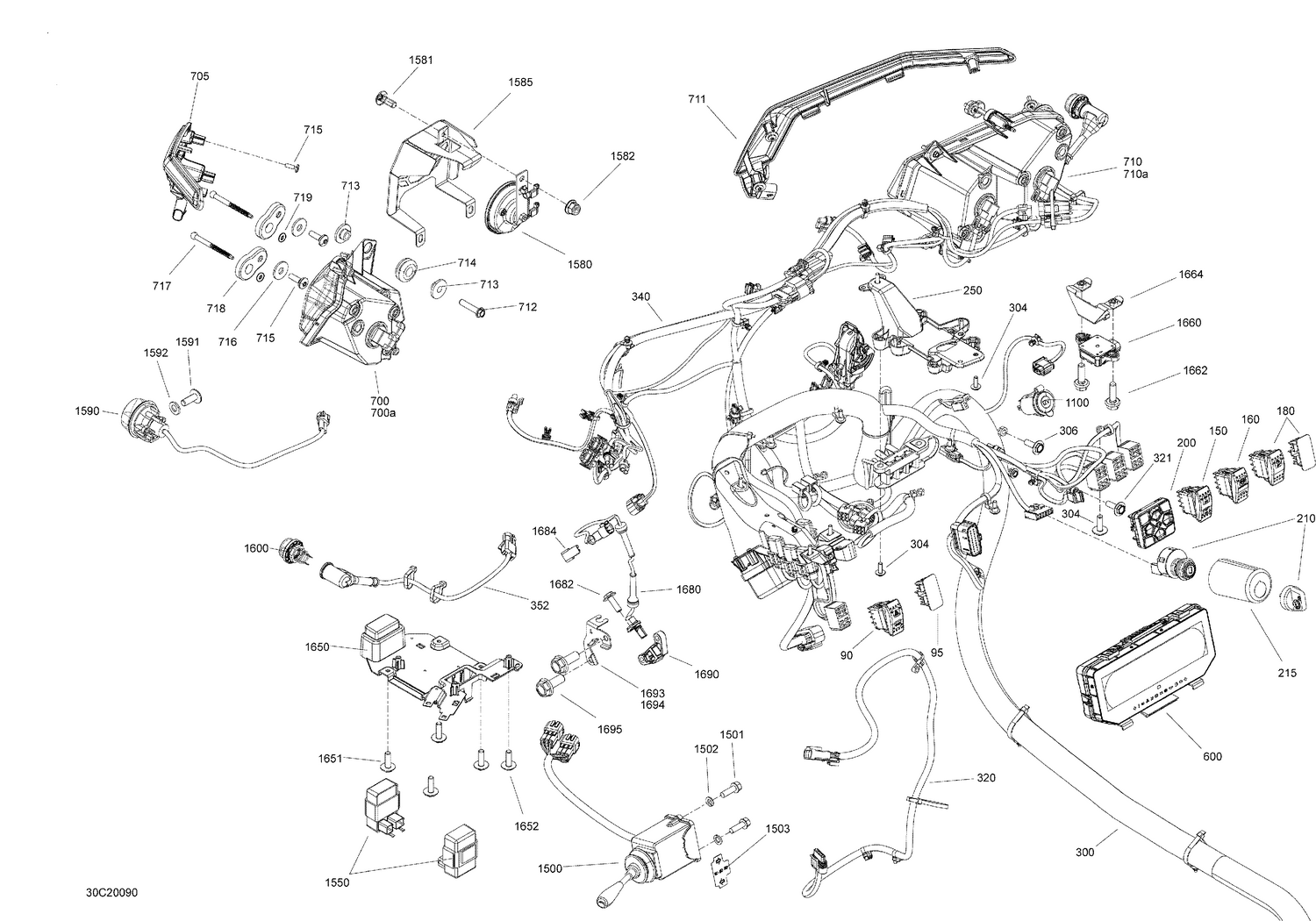

10- Electrical System - Front
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 90 | 710006107 | Hazard Lights Switch |
| 95 | 710007173 | Plug Carling This part replaces 710001999. |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710005470 | Differential Lock Switch |
| 200 | 710006650 | Multifonction Switch |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 250 | 710005672 | Housing Support |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 340 | 710006218 | Front Wiring Harness |
| 352 | 710005676 | Position Light Harness |
| 600 | 710006854 | Full Size Multifunction Gauge |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 705011485 | LH Fascia Trim |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 705011486 | RH Fascia Trim |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet This part replaces 293720053. |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 716 | 234062670 | Stainless Steel Flat Washer |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1500 | 710001721 | Turn Signal |
| 1501 | 210251650 | Hex. Forming Screw M5 X 16 |
| 1502 | 234151401 | Lock Washer 5 mm |
| 1503 | 704902614 | Flasher Decal |
| 1550 | 710003239 | Flasher Unit |
| 1580 | 710004791 | Horn |
| 1581 | 250000721 | Torx Truss Screw M6 X 16 |
| 1582 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1585 | 710006055 | Horn Bracket |
| 1590 | 710002964 | Flasher |
| 1591 | 250000721 | Torx Truss Screw M6 X 16 |
| 1592 | 234061410 | Flat Washer 6 mm |
| 1600 | 710001726 | Day Light |
| 1650 | 710006056 | Support Connector |
| 1651 | 250000959 | Screw PT Type K-50 X 16 |
| 1652 | 250000959 | Screw PT Type K-50 X 16 |
