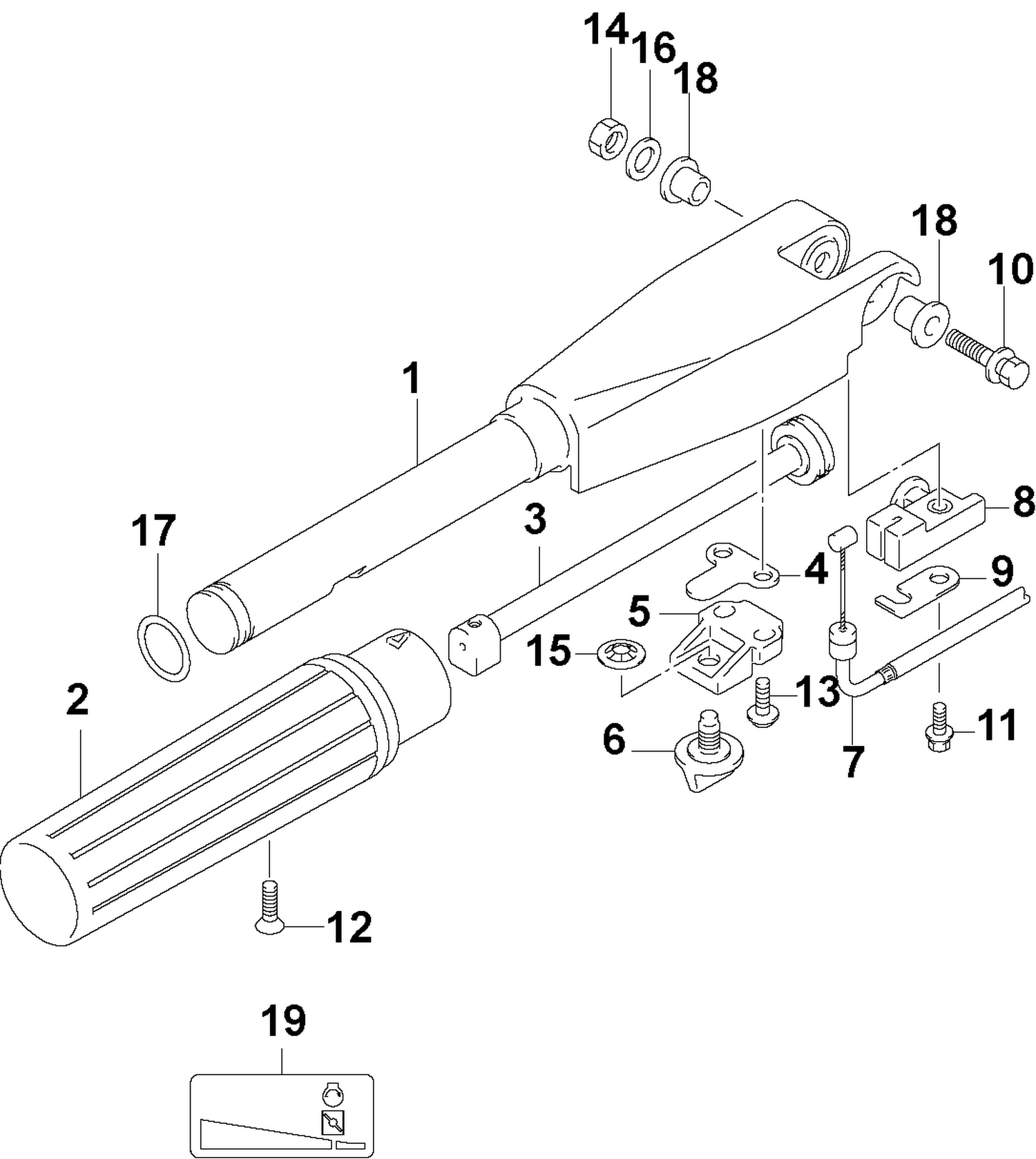

STEERING HANDLE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033451 | HANDLE, TILLER |
| 3 | 5033452 | ROD, HANDLE |
| 4 | 5030318 | PLATE, HANDLE This part replaces 5034192. |
| 6 | 5032475 | KNOB, THROTTLE ADJUST |
| 7 | 5036588 | CABLE, THROTTLE This part replaces 5034205. |
| 8 | 5033454 | STOPPER, THROTTLE CABLE |
| 9 | 5033456 | PLATE, THROTTLE CABLE STOPPER |
| 10 | 5031822 | BOLT |
| 11 | 5033475 | BOLT (6X25mm) |
| 12 | *5030049 | SCREW (6X23mm) |
| 13 | 5030050 | Screw |
| 17 | 5030105 | O RING |
