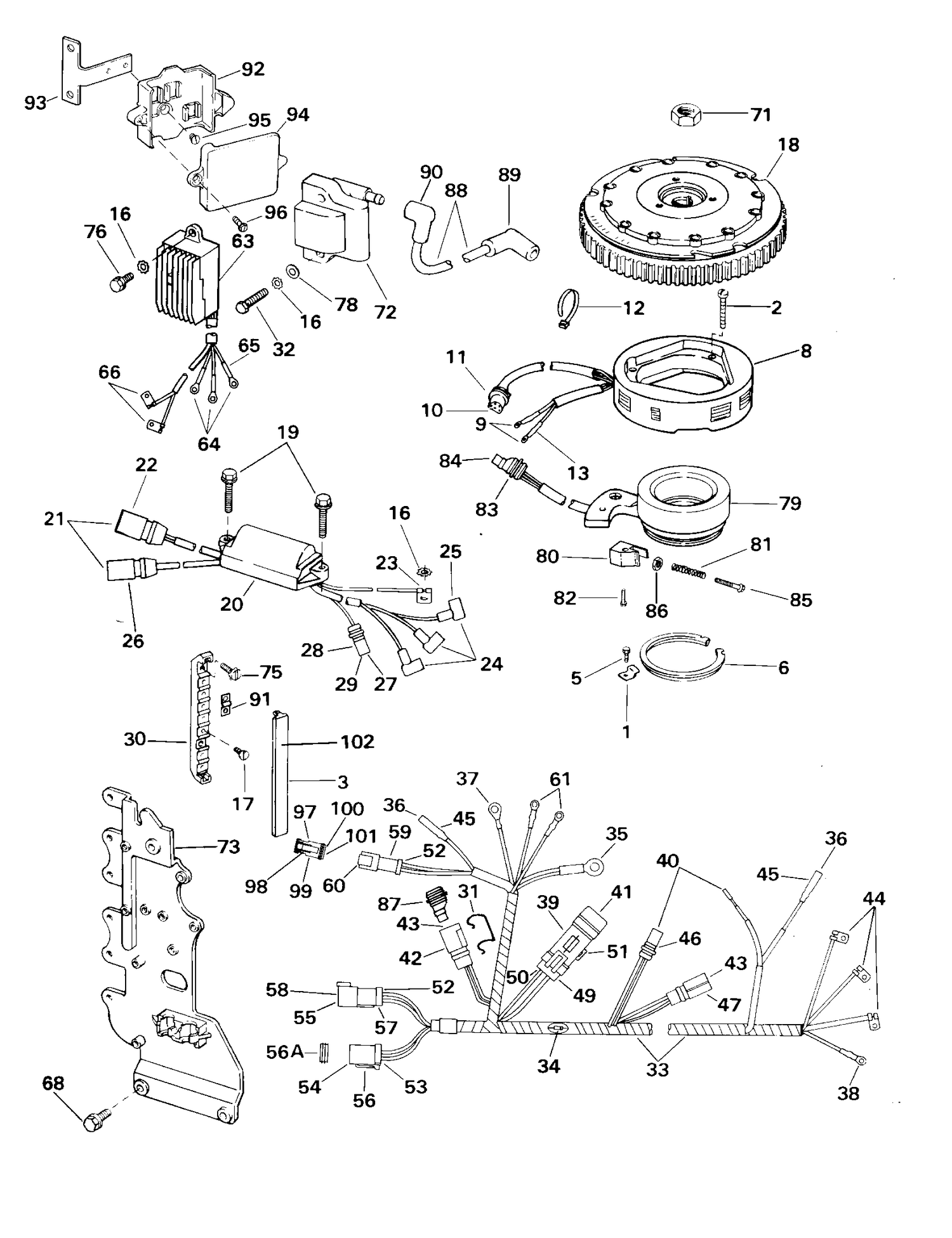

| Ref | Part Number | Description |
|---|
| 1 |
0314495 |
CLAMP, Distributor base |
| 2 |
0325042 |
SCREW, Starter mounting |
| 3 |
0437884 |
TERMINAL BLOCK COVER |
| 5 |
0306014 |
VIS, ancrage |
| 6 |
0313666 |
RET., Distributor base 1 |
| 8 |
0584560 |
STATOR |
| 17 |
0329182 |
VIS, borne |
| 18 |
0584360 |
FLYWHEEL ASSY. |
| 19 |
0328726 |
SCREW (Use existing coil screw) |
| 20 |
0585274 |
POWER PACK |
| 30 |
0329895 |
BORNIER |
| 31 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 33 |
0586021 |
MOTOR CABLE ASSY. |
| 63 |
0585001 |
REDRESSEUR & FIL |
| 69 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 71 |
0329267 |
NUT, Flywheel |
| 72 |
0582508 |
COIL ASSY |
| 73 |
0514222 |
BRACKET, Electrical |
| 75 |
0306644 |
VIS, capteur de papillon |
| 79 |
0584562 |
TIMER BASE ASSY. |
| 87 |
0335655 |
BOUCHON, étanchéité |
| 88 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 91 |
0315004 |
FIL DE LIAISON, bornier |
| 92 |
0352051 |
BRACKET, Connector This part replaces 0342197. |
| 93 |
0514542 |
BRACKET, Mounting |
| 94 |
0342265 |
COVER, Bracket |
| 96 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
