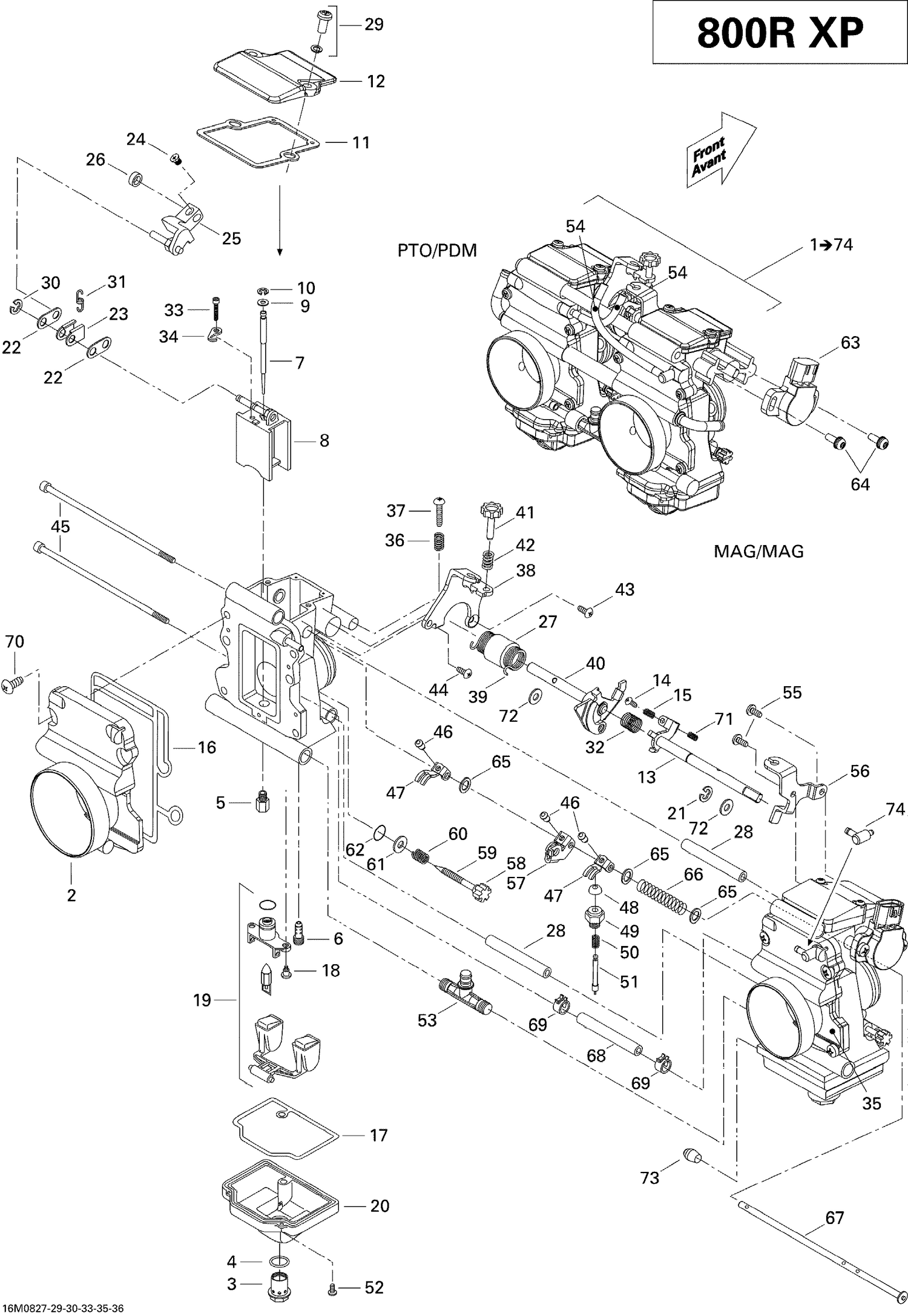

02- Carburetor — Parts Catalog

Parts (72)

Ref	Part Number	Description
2	404162093	Funnel, PTO
3	404162094	Drain Screw
4	404161945	O-Ring
5	404106800	Main Jet MJ 480
6	404161944	Pilot Jet 17.5
7	404162081	NEEDLE J8-9EGI04-58 - Call your local BRP dealership
8	404162020	Valve Piston 2.0
9	404137600	Packing
10	404152200	E-Ring
11	404161940	Gasket
12	404161939	COVER - Call your local BRP dealership
13	404162077	Throttle Shaft
14	404136700	Screw
15	404135300	Adjustment Spring
16	404161935	O-Ring
17	404161961	O-Ring
18	404161933	Screw
19	404161932	Float
20	404162095	Body Float Ass'y
21	707200027	E-Ring
22	404162007	Plate
23	404162008	Holder
24	404161928	Screw
25	404162009	Lever
26	404161926	Ring
27	404161925	Ring
28	404161924	RING - Call your local BRP dealership
29	404161923	Screw
30	404138300	E-Ring
31	404162010	Spring
32	404162011	Spring
33	404161920	Screw
34	404161919	Plate
35	404162096	Funnel, MAG
36	404161918	Spring
37	404161917	Screw
38	404162097	BRACKET, PTO - Call your local BRP dealership
39	404162014	Spring
40	404162015	Throttle Shaft
41	404137500	Adjustment Screw
42	404161913	Spring
43	404161912	Screw
44	404136100	Screw
45	404161911	SCREW - Call your local BRP dealership
46	404161910	Screw
47	404161909	Lever
48	404140000	Cap
49	404136900	Guide Holder
50	404161908	Spring
51	404161907	Plunger Ass'y
52	404161906	Screw
53	404161905	Nipple
54	404161821	HOSE - Call your local BRP dealership
55	404161903	Screw
56	Not	Available As Spare Part - Bracket
57	404161901	Starter Lever
58	404161899	Cap
59	404161898	Adjuster
60	404161897	Spring
61	404161896	Washer
62	404161895	Packing
63	404162079	Sensor Ass'y
64	404162080	SCREW - Call your local BRP dealership
65	404161894	Packing
66	404103500	Spring
67	404161981	SHAFT - Call your local BRP dealership
68	404161956	Hose
69	404161957	Clip
70	404138800	Screw
71	404135400	Spring
72	270500118	Packing
73	270500095	Cap
