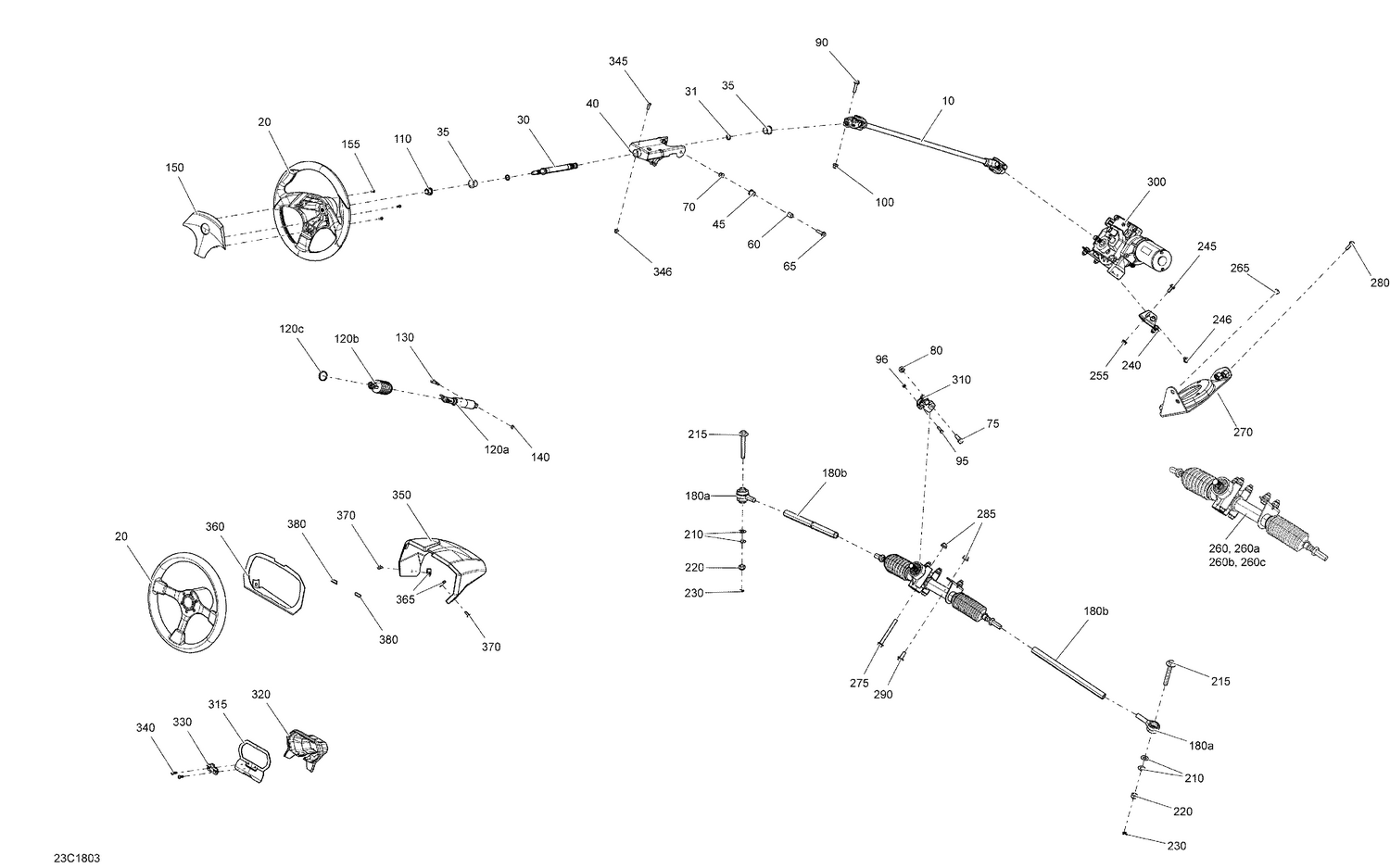

07- Steering Maverick - All Models Except Package XC
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 709401167 | Steering Shaft |
| 31 | 293300144 | O-Ring |
| 35 | 709402725 | Steering Bushing This part replaces 415108000. |
| 40 | 709401391 | Painted Steering Wheel Support |
| 45 | 705600799 | Bushing |
| 60 | 293900106 | Bushing |
| 65 | 207683044 | Hex. Flange Screw M8 X 30 |
| 70 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100 | 233281416 | Hex. Elastic Flange Nut M8 |
| 110 | 233221414 | Hex. Flange Elastic Nut M12 |
| 120a | 709402506 | Adjustment Cylinder This part replaces 709400656. |
| 120b | 709401232 | Boot Tube Side |
| 120c | 414115200 | Tie-Rap 180 mm |
| 130 | 250000669 | Socket Head Screw M8 X 16 |
| 140 | 232561414 | Elastic Stop Nut M6 |
| 180a | 709401125 | Ball Joint |
| 180b | 709401427 | Tie Rod |
| 210 | 706200281 | Hardened Washer This part replaces 250200086. |
| 215 | 250000657 | Hexagonal Screw M12 X 88 |
| 220 | 232521416 | Elastic Stop Nut M12 |
| 230 | 211400017 | Cotter Pin |
| 275 | 230600046 | Hex Flange Screw DIN.6921 - Call your local BRP dealership |
| 285 | 233201436 | Hex. Flange Elastic Nut M10 |
| 290 | 207602546 | Hex. Flange Screw M10 X 25 |
| 345 | 250000722 | Torx Screw M6 X 20 |
| 346 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
