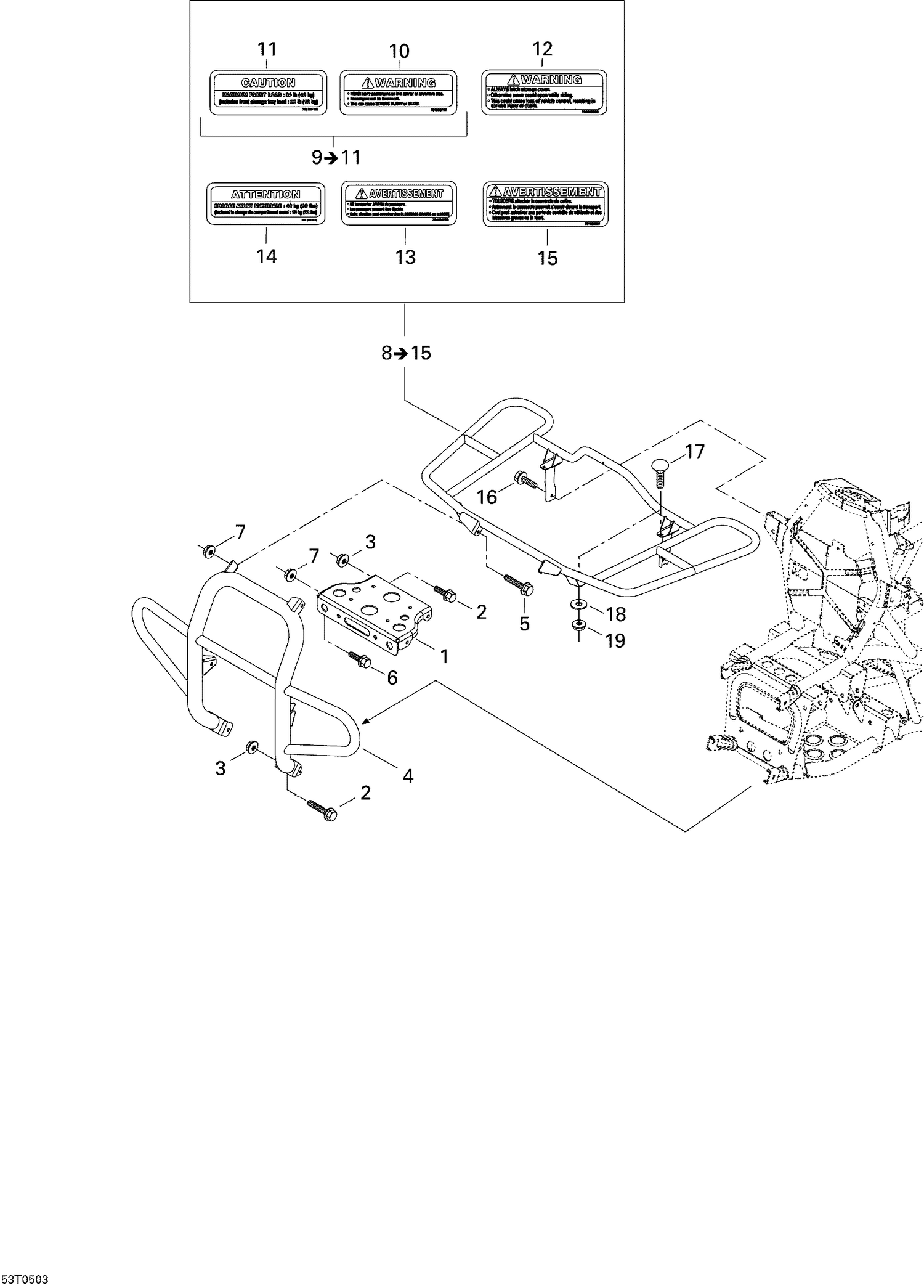

09- Luggage Racks
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200196 | WINCH LATCH, BLACK - Call your local BRP dealership |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 705000591 | Front Bumper, Black |
| 5 | 207682044 | Hex. Flange Screw M8 X 20 |
| 6 | 207682544 | Hex. Flange Screw M8 X 25 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 703500452 | Luggage Rack Kit |
| 16 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 17 | 250000035 | TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 18 | 224061121 | Flat Washer |
