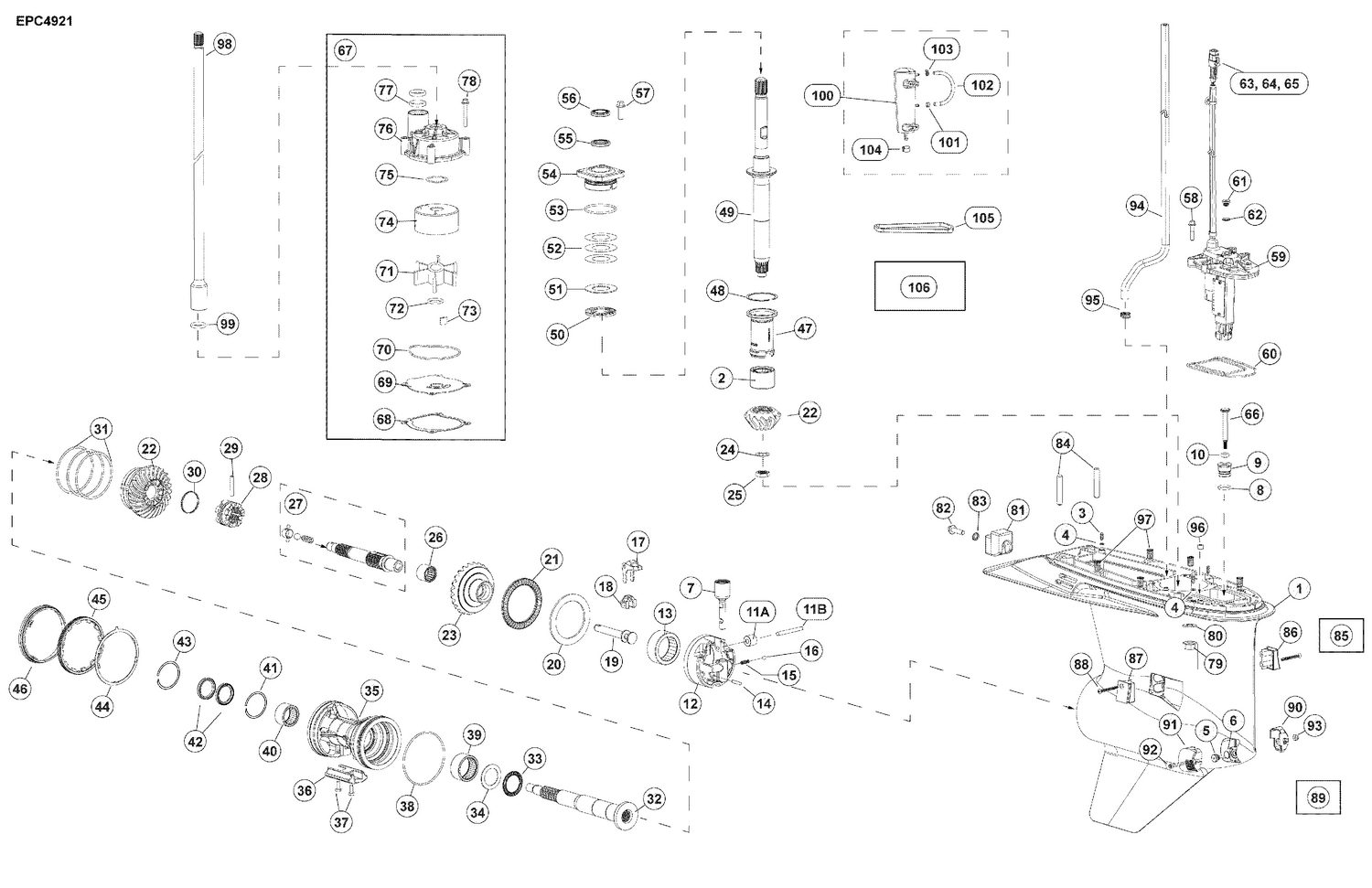

07-1_GEARCASE, SLX-Type - Counter Rotation (Ratio: 12:26, 0.46, 2.16:1)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 67 | 5011599 | WATER PUMP REPAIR KIT This part replaces 5009434. |
| 75 | 0331188 | O-Ring |
| 81 | 0355964 | ANODE & INSERT |
| 83 | 0353554 | VIS, démarreur vers bloc cylindres-carter |
| 85 | 5009436 | WATER SCREEN KIT |
| 89 | 5009437 | WATER SCREEN KIT, Low water pick up |
| 100 | 5009873 | OIL RESERVOIR, Gearcase |
| 101 | 0348838 | CLAMP, 10.5mm |
| 103 | 0339276 | SERRE-FILS |
| 105 | 0355463 | SEAL, Adapter |
| 106 | 5009438 | GEARCASE SEAL KIT |
