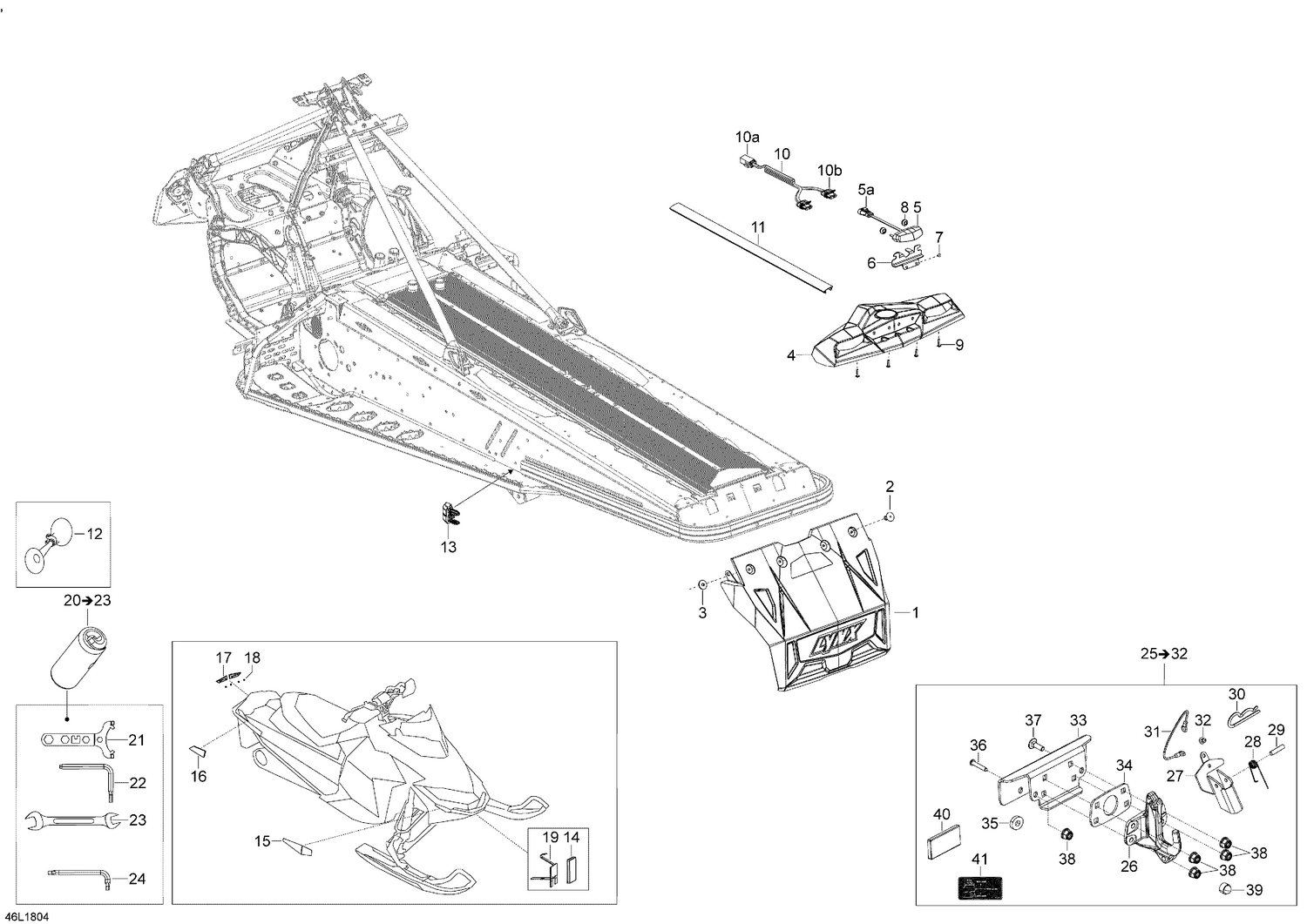

09- Utilities 49 Ranger - 600 & 900 ACE
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001512 | Snow Guard |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 517124300 | Washer |
| 4 | 511000863 | Light Cover |
| 5 | 520001302 | Rear Light |
| 6 | 520001375 | Rear Light Support |
| 7 | 390909200 | Avex Rivet |
| 8 | 293720101 | Grommet |
| 9 | 250000759 | Torx Truss Pt K40 X 16 |
| 10 | 515178116 | HARNESS - Call your local BRP dealership |
| 11 | 520000829 | Radiator Trim |
| 12 | 549011291 | Pallotorvi |
| 13 | 520000964 | Black LH Cap |
| 13 | 520000965 | Black RH Cap |
| 14 | 21118 | Heijastin, valkoinen |
| 15 | 520001351 | Yellow RH Reflector |
| 15 | 520001352 | Yellow LH Reflector |
| 16 | 705007154 | Reflector, Yellow RH |
| 16 | 705007155 | Reflector, Yellow LH |
| 17 | 705007156 | Red, RH Reflect-Rear |
| 17 | 705007157 | Red, Reflect-Rear LH |
| 18 | 732610072 | Push Nut |
| 19 | 520001452 | Reflector Mount |
| 24 | 529000082 | Key, Torx 25 |
| 27 | 520001775 | Locking Plate |
| 29 | 520001810 | Clevis Pin Din En 22341/ Iso 2341 B |
| 30 | 41029 | Spring cotter |
| 32 | 390909100 | Avex Rivet |
| 33 | 520001632 | Hitch Support |
| 35 | 520001288 | Sleeve |
| 36 | 205484546 | Socket Head Screw M8 X 45 |
| 37 | 207782544 | Carriage Bolt, M8 X 25 |
| 38 | 233281414 | Hex. Flange Elastic Nut M8 |
| 39 | 28056 | Cover |
