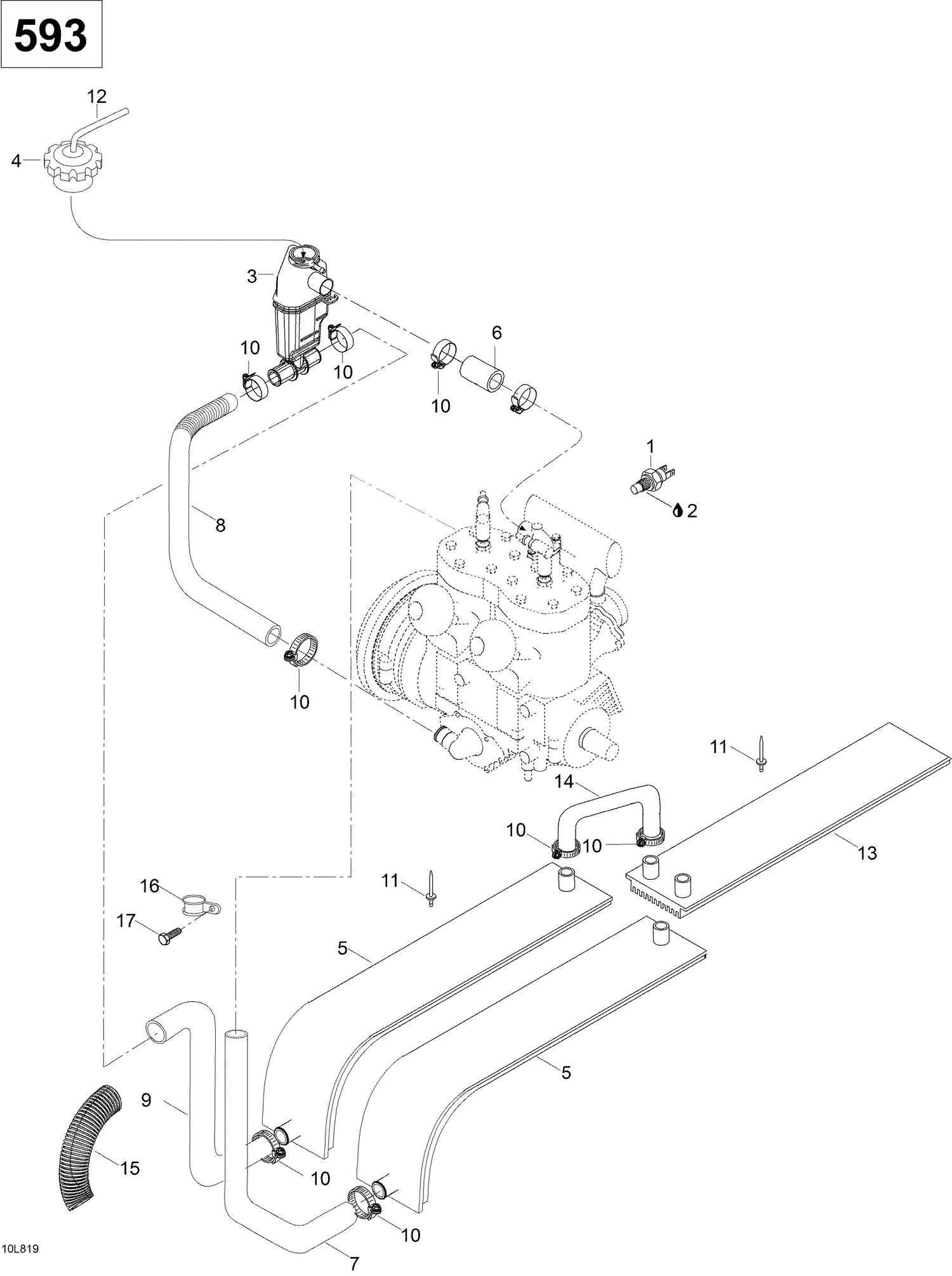

| Ref | Part Number | Description |
|---|
| 1 |
515177835 |
Capteur Temp. *Sensor-Temp. This part replaces 515176043. |
| 2 |
320100 |
Loctite 572, 50ml |
| 3 |
509000134 |
Coolant tank |
| 4 |
509000187 |
Pressure Cap |
| 5 |
605151689 |
LH RADIATOR - Call your local BRP dealership |
| 5 |
605151690 |
RH RADIATOR - Call your local BRP dealership |
| 6 |
605354602 |
HOSE - Call your local BRP dealership |
| 7 |
605353565 |
HOSE - Call your local BRP dealership |
| 8 |
605355768 |
HOSE - Call your local BRP dealership |
| 9 |
605353567 |
HOSE - Call your local BRP dealership |
| 10 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 |
36108 |
Rivet |
| 12 |
39038 |
Overflow hose |
| 13 |
605351687 |
Radiator |
| 14 |
605253904 |
FRONT RADIATOR HOSE - Call your local BRP dealership |
| 15 |
28036 |
Tube, 1000 mm |
| 16 |
27011 |
Clip |
