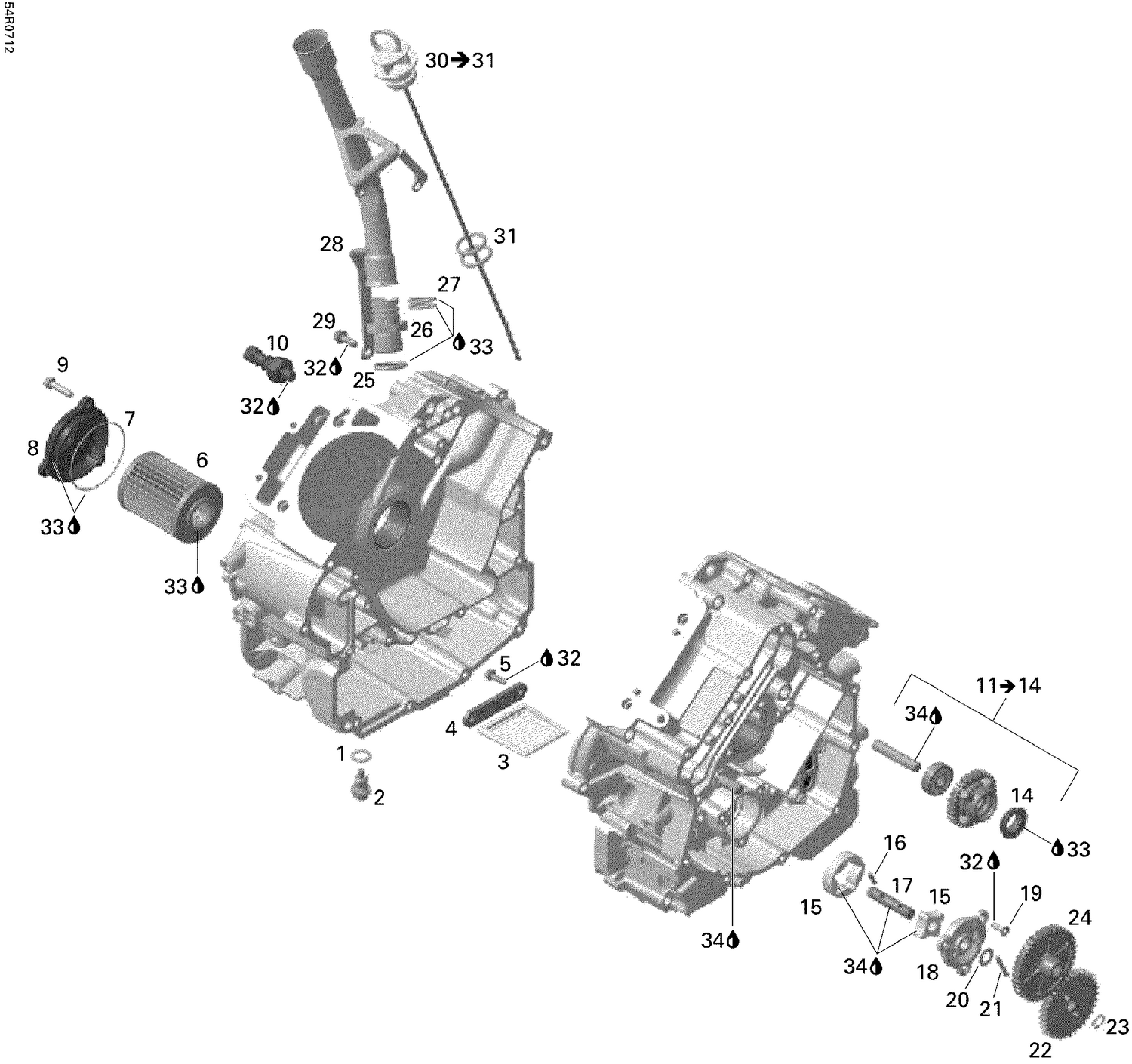

01- Engine Lubrication
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420250640 | Copper Washer A 12X18-CU DIN 7603 |
| 2 | 420241787 | Magnetic Drain Plug This part replaces 420241786. |
| 3 | 420256322 | Oil Sieve This part replaces 420256321. |
| 4 | 420210661 | Cover Sieve |
| 5 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 6 | 420256188 | Oil Filter |
| 7 | 420230923 | O-Ring This part replaces 420230920. |
| 8 | 420612135 | Oil Filter Cover This part replaces 420210418. |
| 9 | 420641238 | Flanged Torx Screw M6 X 25 This part replaces 420440237. |
| 10 | 420856537 | Oil Pressure Switch This part replaces 420256773. |
| 14 | 420630125 | V-ring |
| 15 | 420256348 | Oil Pump Rotor This part replaces 420256347. |
| 16 | 420232731 | Needle Pin This part replaces 420232730. |
| 17 | 420237059 | Oil Pump Shaft |
| 18 | 420210646 | Oil Pump Cover This part replaces 420210640. |
| 19 | 420640823 | Torx Screw M5 X 16 This part replaces 420640821. |
| 20 | 420827590 | Thrust Washer |
| 21 | 420232431 | Needle Pin This part replaces 420232430. |
| 22 | 420434320 | Oil Pump Gear, 33 Teeth |
| 23 | 420245330 | Snap Ring |
| 24 | 420434300 | Idle Gear, 38 Teeth |
| 25 | 420631640 | O-Ring |
| 26 | 420856610 | Adaptor |
| 27 | 420430373 | O-Ring This part replaces 420430370. |
| 28 | 420856920 | OIL TUBE - Call your local BRP dealership |
| 29 | 420240385 | TAPTITE SCREW M6 X 12 - Call your local BRP dealership |
| 31 | 420631640 | O-Ring |
| 32 | 293800060 | Loctite 243, 10 ml |
| 33 | 293550030 | Grease, Super Lube |
