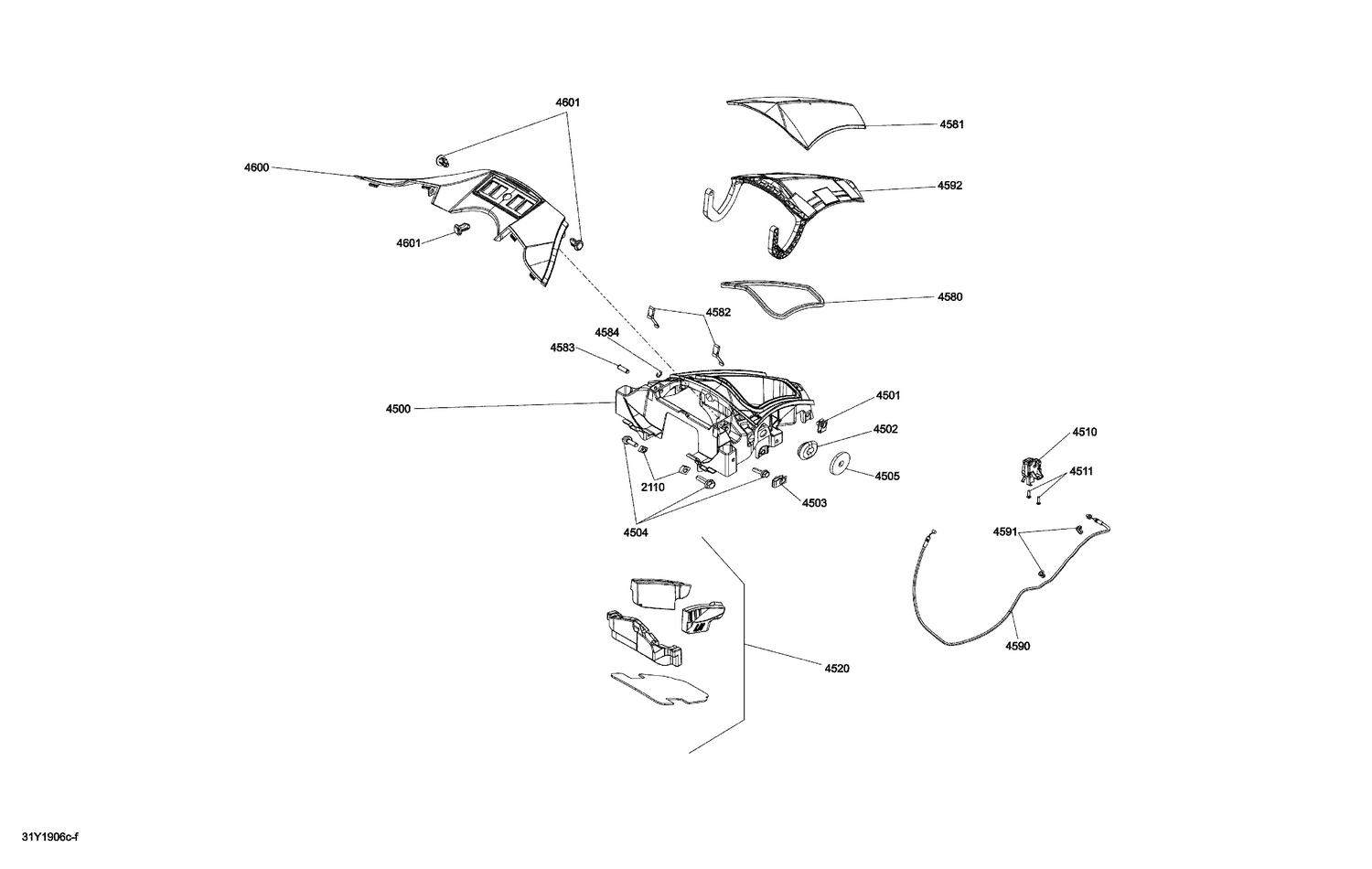

09- System Console - Glove Box
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2110 | 232862412 | Square Nut M6 |
| 4500 | 705002726 | Glove Box |
| 4501 | 250100198 | Panel Nut M6 X 1.0 |
| 4502 | 705000321 | Oval Washer |
| 4503 | 250100198 | Panel Nut M6 X 1.0 |
| 4504 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4505 | 705007085 | Rubber Washer |
| 4510 | 705007380 | Push Latch |
| 4511 | 250000287 | Flange Torx Screw K40 X 16 |
| 4520 | 219800172 | OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership |
| 4580 | 219800143 | NEOPRENE SEAL, METER - Call your local BRP dealership |
| 4582 | 705003748 | Glove Box Spring |
| 4583 | 705003295 | Retainer Pin |
| 4584 | 705600272 | Circlip |
| 4590 | 705007381 | Glove Box Cable |
| 4591 | 293750002 | Tie Wrap 142 mm |
| 4600 | 705004461 | Center Panel |
