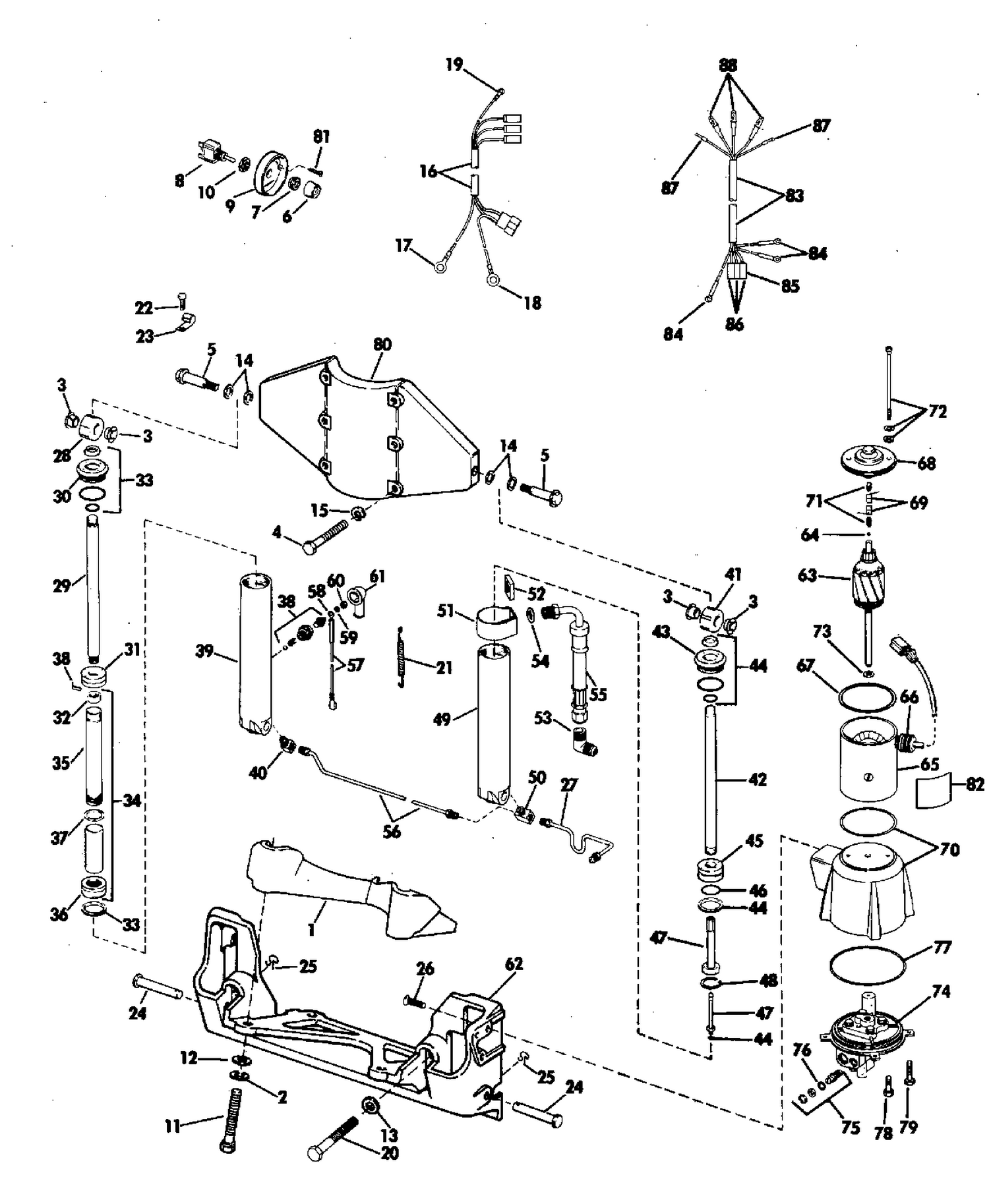

| Ref | Part Number | Description |
|---|
| 1 |
0122809 |
BRACKET, Lower support |
| 2 |
0307708 |
RONDELLE GROWER |
| 4 |
0314949 |
SCREW |
| 5 |
0122534 |
PIVOT SCREW, Lift bracket |
| 11 |
0552899 |
SCREW, Lwr, supp. brkt., short |
| 11 |
0553104 |
SCREW, Alternator |
| 13 |
0306428 |
FLAT WASHER, Trans. bolt |
| 16 |
0172766 |
TRIM CABLE ASSY |
| 20 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 21 |
0318290 |
SPRING, Reverse lock |
| 26 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 33 |
0174520 |
O-RING KIT This part replaces 0172575. |
| 44 |
0174520 |
O-RING KIT This part replaces 0172575. |
| 66 |
0122619 |
CONNECTOR This part replaces 0122789. |
| 80 |
0123726 |
LIFT BRACKET |
| 82 |
0122548 |
DECAL, Pump unit, johnson |
| 82 |
0122549 |
DECAL PUMP UNIT, Evinrude |
| 83 |
0173304 |
EXTENSION CABLE ASSY,5 FT. |
| 83 |
0173306 |
EXTENSION CABLE ASSY,10 FT. |
| 0172835 |
0172835 |
HYDRAULIC LIFT ASSY |
| 0172858 |
0172858 |
POWER TILT & TRIM ASS.Y |
