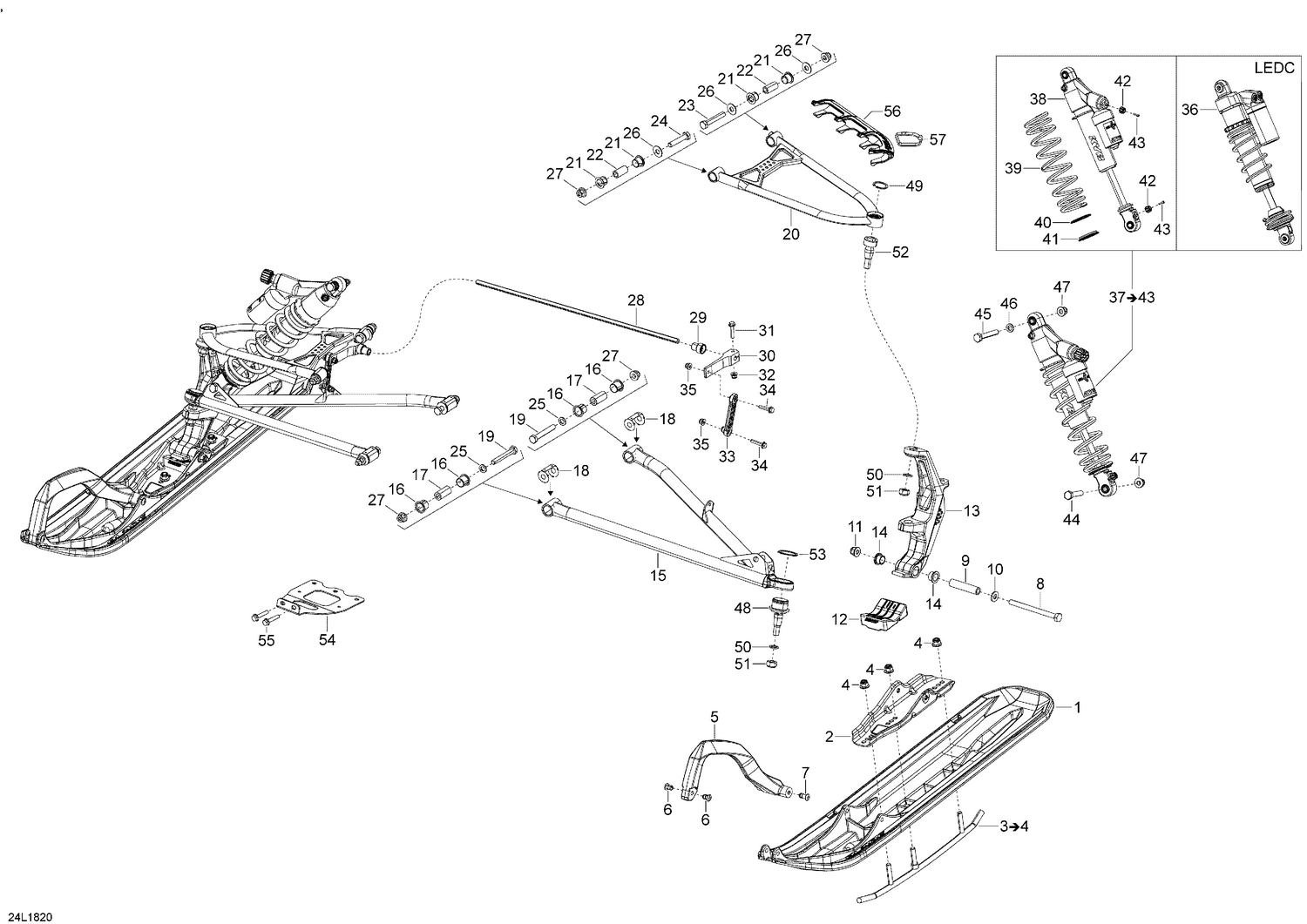

07- Front Suspension And Ski RAVE - 600HO E-TEC - RE
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505074262 | Ski Blade Xc Black |
| 2 | 505073240 | Ski Bridge |
| 4 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 5 | 505072976 | Black, Handle |
| 6 | 505071812 | Retainer 17mm long |
| 7 | 505072133 | Retainer 23mm Long |
| 8 | 231080044 | Socket HD Screw M10 x 100 |
| 9 | 506133300 | Ski Axle |
| 10 | 732900049 | Washer |
| 11 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 12 | 505073411 | Rubber Damper |
| 13 | 505073475 | Black LH Ski Leg (10L) |
| 13 | 505073477 | Black RH Ski Leg (10R) |
| 14 | 505072690 | Leg Bushing |
| 15 | 505073420 | Black LH Lower Arm |
| 15 | 505073426 | Black RH Lower Arm |
| 16 | 505073330 | Bushing |
| 17 | 505072209 | Bushing |
| 18 | 505072634 | Wear Plate |
| 19 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 20 | 505073412 | Black LH Upper Arm |
| 20 | 505073416 | Black RH Upper Arm |
| 21 | 505073329 | Bushing |
| 22 | 505072143 | Bushing |
| 23 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 24 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 26 | 505072392 | Washer |
| 27 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 28 | 505072602 | Stabilisator |
| 29 | 505072064 | Bushing |
| 30 | 505072394 | Stabilisator Lever |
| 31 | 207663046 | Hex. Flange Screw M6 X 30 |
| 32 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 33 | 505072204 | Sway Bar Double Joint Link |
| 34 | 207663046 | Hex. Flange Screw M6 X 30 |
| 35 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 38 | 505074001 | LH Shock |
| 38 | 505074002 | RH Shock |
| 39 | 505073311 | Spring (280mm - 18.4N/mm) |
| 40 | 505073150 | Washer |
| 41 | 503194270 | Spring Stopper This part replaces 503192608. |
| 42 | 505072753 | Adjustment Knob |
| 43 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 44 | 207005544 | Hex. Cap Screw M10 x 55 |
| 45 | 207006544 | Hex. Cap Screw M10 x 65 |
| 46 | 503189564 | Washer |
| 47 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 48 | 505073636 | Ball Joint |
| 49 | 293370070 | Circlip |
| 50 | 234021410 | Flat Washer |
| 51 | 250100089 | Nut M12 |
| 52 | 505072913 | Upper Ball Joint |
| 53 | 293370035 | Circlip |
